- Page 1 COTX-X5 Outdoor Gateway COTX X5 Outdoor Gateway Intelligent IoT Gateway Quick Start Guide Beijing COTX Networks Technologies Co., Ltd. www.cotxnetworks.com...
-
Page 2: Package Contents

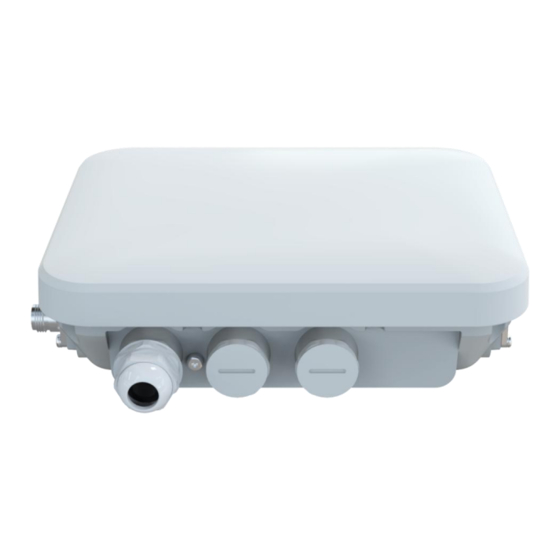

COTX-X5 Outdoor Gateway Package Contents Your COTX-X5 Outdoor Gateway comes with the following items: 1 COTX-X5 outdoor gateway 3 installation kit 4 fixing screws (including accessories) 2 long connecting rod screws (including accessories) 2 waterproof interface 1 waterproof plug (Type N) - Page 3 Before outdoor installation, make sure you tighten all connectors and the case itself very well to avoid any unintended water ingress. Structure size The outer dimension of COTX-X5 is 227 x 82 x 192 mm, as shown below: Beijing COTX Networks Technologies Co., Ltd. www.cotxnetworks.com...
-
Page 4: Interface Description
500 kHz LoRa reception with 8 x 8 channels LoRa® Channel packet detectors, 8 x SF5-SF12 LoRa® demodulators,8 x SF5-SF10 LoRa® demodulators Power consumption Power supply POE (support 802.3at)/48V DC-Jack Maximum power ＜ 25.5W consumption Beijing COTX Networks Technologies Co., Ltd. www.cotxnetworks.com... - Page 5 “COTX” APP or “Helium Hotspot” APP first and then configure to the next step shown below: Step 1: Turn on COTX Gateway, so the COTX APP can detect the gateway to Beijing COTX Networks Technologies Co., Ltd.
- Page 6 Gateways BLE” from the list. Step 4: Follow the steps on the App and get to the “Bluetooth” page. Gateway Bluetooth is automatically turned on after the COTX outdoor device is powered up. Click “Scan for my Hotspot” to pair up.
- Page 7 COTX-X5 Outdoor Gateway Step 6: The app will show the available WiFi networks within the range of your Gateway. If you are using Ethernet, tap Use Ethernet Instead and skip to Step 7. Beijing COTX Networks Technologies Co., Ltd. www.cotxnetworks.com...
- Page 8 Step 7: The app will then ask you to set your gateway’s location, and you can confirm the location of your gateway. A Helium wallet account should be created first so you can continue to the next step. Beijing COTX Networks Technologies Co., Ltd. www.cotxnetworks.com...
- Page 9 Step 8: Register the gateway to the Helium Network to provide IoT services for related devices. The setup is now complete. It’ll submit the details of the COTX Gateway to the Helium network. In approximately 15 minutes, it will be confirmed that it is added to the Helium network.
- Page 10 Ethernet port of the gateway to a switch with the PoE function (PoE - IEEE 802.3at). If unavailable, use a PoE injector and power up. Power on by PoE Switch Power on by PoE Injector Beijing COTX Networks Technologies Co., Ltd. www.cotxnetworks.com...
-
Page 11: Pole Mounting
Place the base bracket on the back of the device with four M6*4 screws as shown below: Step2 Attach the 3-Axis brackets on the back of the device with two number 7 screws as shown below: Beijing COTX Networks Technologies Co., Ltd. www.cotxnetworks.com... - Page 12 COTX-X5 Outdoor Gateway Step3 Insert the steel band clamps through the four holes on the mount kit, wrap the band clamps around the mounting pole, lock and tighten the clamps using a screwdriver. Beijing COTX Networks Technologies Co., Ltd. www.cotxnetworks.com...
