- Page 1 COTX-X3 Gateway Intelligent IoT Gateway Quick Start Guide...
-
Page 2: Package Contents

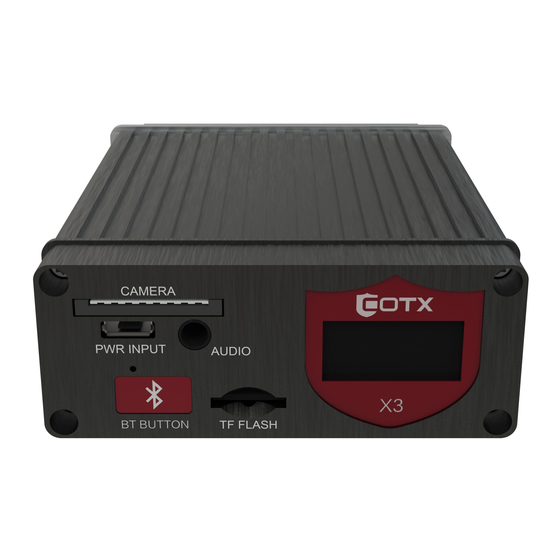

•Power Adapter*1pcs •Power Cable*1pcs •Ethernet Cable*1pcs •LoRa® Antenna*1pcs Size The MCO (Maximum outline dimension) of COTX-X3 is 75 x 95 x 29 mm, as shown below: LoRa® Reserved Power Input Camera Audio Output Display Screen Antenna port For RS485 Extension... - Page 3 LED and Screen User Guide Indicator Description Preparing COTX-X3 Gateway Step 1: Install the LoRa antenna on the LoRa Antenna port. LoRa® Antenna port Type Status Description No Power LED Light Blink System Start System Operate Short press BT BUTTON, turn on/off the screen...
-
Page 4: Configuring Gateway
INPUT port on the gateway. Configuring Gateway by COTX APP To configure the gateway, please download the COTX APP from Apple APP store or Google Play directly by searching “COTX”. Please create a Helium wallet account by using “COTX” APP or “Helium Hotspot” APP first and then... - Page 5 Step 1: Turn on COTX Gateway’s BT, so the Step 2: Open COTX applica�on and login in with COTX APP can detect the gateway to further Helium wallet account. Step 3: Tap “Add a Hotspot” and pick “COTX configura�on. Press the BT bu�on for 5 Gateways”...
- Page 6 Step 4: Following the APP opera�on steps to Step 5: Tap the corresponding icon to enter the correct reach below user interface, then press the BT gateway in the APP through matching the last 4 charac- bu�on 5 seconds to turn on the gateway BT for ters(e.g.0B:99) shown in the applica�on with the last 4 pairing and then click “Scan for my Hotspot”.
- Page 7 Select the Wi-Fi network you'd like your Hotspot to connect to. Enter Password Scan Networks Enter your Wi-Fi’s credentials to connect your Hotspot to this Network. Configured Network cotx_office_506 cotx-office Password Available Networks Show Password cotx_office_505 DIRECT-4E-HP Laser 136w cotx_office_506 xxxx...
- Page 8 Submit antenna and height details for Hotspot. We can use your phone to your Hotspot. do this. First,we’ll ask for permission to access your phone’s location. COTX Gateway Miner (eu 868) TX / RX Gain Height (meters) Hotspot Location 阜通东大街，北京市 Ask for Permissions Next No thanks, l’ll set it up later...
- Page 9 “Helium Hotspot” APP to confirm “Add Hotspot to Blockchain”. A�er tap “I Confirm”, “Helium Hotspot” APP will go back to the “COTX” APP . It will take you approximately 15 minutes to join the Helium network. Then the whole setup process is done.
- Page 10 Quick Specifications Quick Specification Product Weight 203g Fixing Way Desktop Opera�ng -10℃~55℃ Power Supply 5V DC input power supply Temperature Maximum Power CN470,EU433,US915, AS923, AS920, <10W Frequency Consump�on AU915,EU868, IN865, KR920 2GB LPDDR4-3200 SDRAM Quad-core Cortex-A72 @1.5GHz (4G/8G Op�onal) Ubuntu20.04 Main-board Raspberry Pi 4B 1* 10/100/1000M Ethernet interface...
- Page 11 Tel: +86-755-21014279 Website: www.cotxnetworks.com E-mail: support@cotxnetworks.com...
