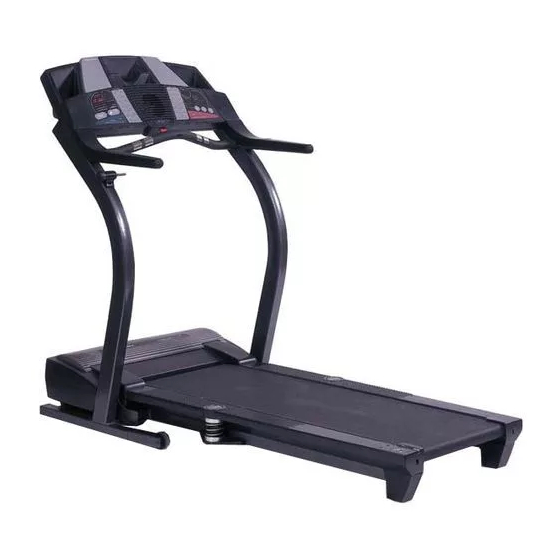

Pro-Form PETL75130 User Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Model No. PETL75130

Serial No.

Serial Number Decal

QUESTIONS?

As a manufacturer, we are com-

mitted to providing complete

customer satisfaction. If you

have questions, or if there are

missing or damaged parts,

please call:

08457 089 009

Or write:

ICON Health & Fitness, Ltd.

Unit 4

Revie Road Industrial Estate

Revie Road, Beeston

Leeds, LS11 8JG

email: csuk@iconeurope.com

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manual

for future reference.

USER'S MANUAL

Visit our website at

www.iconeurope.com

Table of Contents

Need help?

Do you have a question about the PETL75130 and is the answer not in the manual?

Questions and answers

Summary of Contents for Pro-Form PETL75130

Page 1 Model No. PETL75130 USER'S MANUAL Serial No. Serial Number Decal QUESTIONS? As a manufacturer, we are com- mitted to providing complete customer satisfaction. If you have questions, or if there are missing or damaged parts, please call: 08457 089 009 Or write: ICON Health &...
Page 2: Table Of Contents
TABLE OF CONTENTS IMPORTANT PRECAUTIONS ..............3 BEFORE YOU BEGIN .
Page 3: Important Precautions
IMPORTANT PRECAUTIONS WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the following important precautions and information before operating the treadmill. 1. It is the responsibility of the owner to ensure 12. Keep the power cord away from heated sur- that all users of this treadmill are adequately faces.
Page 4 DANGER: 21. When using iFIT.com CDs and videos, you Always unplug the power can manually override the speed and incline cord immediately after use, before cleaning the settings at any time by pressing the speed treadmill, and before performing the mainte- and incline buttons.
Page 5: Before You Begin
The model number of the treadmill home. And when you’re not exercising, the unique 760 is PETL75130. The serial number can be found on a AIR treadmill can be folded up, requiring less than half decal attached to the treadmill (see the front cover of the floor space of other treadmills.
Page 6: Assembly
ASSEMBLY Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the top of the walking belt or the shipping carton.
Page 7 2. With the help of a second person, carefully tip the Uprights (97) down as shown. (Note: It may be helpful to place your foot on one of the Extension Legs [92] as you tip the Uprights.) Make sure that the Extension Legs remain in the Uprights.
Page 8 5. Set the Console Base (101) on the Uprights (97). Thread the four Upright Bolts (76) with four Internal Star Washers (77) into the Uprights and the Console Base. Be careful not to pinch the Wires (not shown) in the Uprights.
Page 9: How To Use The Chest Pulse Sensor
HOW TO USE THE CHEST PULSE SENSOR HOW TO PUT ON THE CHEST PULSE SENSOR each use, it may remain activated longer than nec- essary, draining the battery prematurely. The chest pulse sensor consists of two components: • Store the chest pulse sensor in a warm, dry place. the chest strap and the sensor unit (see the drawing Do not store the chest pulse sensor in a plastic bag below).
Page 10: Operation And Adjustment
OPERATION AND ADJUSTMENT THE PERFORMANT LUBE WALKING BELT Your treadmill features a walking belt coated with PERFORMANT LUBE , a high-performance lubricant. IMPOR- TANT: Never apply silicone spray or other substances to the walking belt or the walking platform. Such substances will deteriorate the walking belt and cause excessive wear.
Page 11 Clip Note: If there are thin sheets of clear plastic on the console, remove them. FEATURES OF THE CONSOLE cable, you can connect the treadmill to your home stereo, portable stereo, computer, or VCR and play The treadmill console offers an impressive array of special iFIT.com CD and video programs (iFIT.com features that help you get the most from your workouts.
Page 12 walking. As you exercise, change the speed of the HOW TO TURN ON THE POWER walking belt as desired by pressing the Speed + and – buttons. Each time a button is pressed, the speed setting will change by 0.1 mph; if a button Plug in the power cord (see page 10).
Page 13 To change the unit of Measure your heart rate if desired. measurement, first hold down the Stop button You can measure your heart rate using either the whilst inserting the key chest pulse sensor or the handgrip pulse sensor. into the console. An “E” for English miles or an To use the hand- “M”...
Page 14 The speed setting for the HOW TO USE PRESET PROGRAMS Current Segment first segment is shown in the flashing Current Segment column of the Insert the key fully into the console. matrix. (The incline set- tings are not shown in See HOW TO TURN ON THE POWER on the matrix.) The speed page 12.
Page 15 To stop the program at any time, press the Stop When you are finished exercising, remove the button. The Time/Pace display will begin to flash. key from the console. To restart the program, press the Start button or the Speed + button. The walking belt will begin to When the program has ended, make sure that move at 1 mph.
Page 16 During pulse programs, HOW TO USE PULSE PROGRAMS the matrix will show a moving graphic that rep- resents your heart rate. CAUTION: Each time a heartbeat is If you have heart prob- detected, an additional lems, or if you are over 60 years of age and peak will appear.
Page 17 If the speed or incline setting is too high or too low Press the Start button or the Speed + button to at any time during the program, you can adjust the start the program. setting with the Speed or Incline buttons. However, each time the console compares your heart rate to A moment after the button is pressed, the tread- the current target heart rate, the speed and/or in-...
Page 18 HOW TO CONNECT YOUR PORTABLE STEREO HOW TO CONNECT THE TREADMILL TO YOUR CD PLAYER, VCR, OR COMPUTER Note: If your stereo has an RCA-type AUDIO OUT jack, see instruction A below. If your stereo has a 3.5 mm LINE OUT jack, see instruction B. If your To use iFIT.com CDs, the treadmill must be connected stereo has only a PHONES jack, see instruction C.
Page 19 HOW TO CONNECT YOUR HOME STEREO HOW TO CONNECT YOUR COMPUTER Note: If your stereo has an unused LINE OUT jack, Note: If your computer has a 3.5 mm LINE OUT see instruction A below. If the LINE OUT jack is jack, see instruction A.
Page 20 HOW TO CONNECT YOUR VCR HOW TO USE IFIT.COM CD AND VIDEO PROGRAMS Note: If your VCR has an unused AUDIO OUT jack, see instruction A below. If the AUDIO OUT jack is being used, see instruction B. If you have a TV To use iFIT.com CDs or videocassettes, the treadmill with a built-in VCR, see instruction B.
Page 21 If the speed or incline settings are too high or too • Make sure that the audio cable is properly low, you can manually override the settings at any connected, that it is fully plugged in, and that time by pressing the Speed or Incline buttons on it is not wrapped around a power cord.
Page 22 “chirping” sound will alert you when the speed HOW TO USE PROGRAMS DIRECTLY FROM and/or incline of the treadmill is about to change. OUR WEB SITE CAUTION: Always listen for the “chirp” and be prepared for speed and/or incline changes. To use programs from our Web site, the treadmill must If the speed or incline settings are too high or too be connected to your home computer.
Page 23 THE INFORMATION MODE/DEMO MODE An “E” for English miles or an “M” for metric kilometers will The console features an information mode that keeps appear in the Speed display. track of the total number of hours that the treadmill has Press the Speed + button to been used and the total number of miles that the walk- change the unit of measure-...
Page 24: How To Fold And Move The Treadmill
HOW TO FOLD AND MOVE THE TREADMILL HOW TO FOLD THE TREADMILL FOR STORAGE Before folding the treadmill, adjust the incline to the lowest position. If this is not done, the treadmill may be per- manently damaged. Next, unplug the power cord. CAUTION: You must be able to safely lift 20 kg (45 lbs.) to raise, lower, or move the treadmill.
Page 25 HOW TO LOWER THE TREADMILL FOR USE 1. Hold the upper end of the treadmill with your right hand as shown. Using your left hand, pull the latch knob to the left and hold it. Pivot the treadmill down until the frame is past the latch pin.
Page 26: Troubleshooting
TROUBLESHOOTING Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, please call our Customer Service Department. PROBLEM: The power does not turn on SOLUTION: a.
Page 27 With the help of a second person, carefully raise the Upright Base (97) as shown. Carefully pivot the Hood (105) off. Locate the Reed Switch (22) and the Magnet (19) on the left side of the Pulley (18). Turn the Pulley until the 3 mm Magnet is aligned with the Reed Switch.
Page 28 PROBLEM: The heart rate monitor does not function properly SOLUTION: a. If the heart rate monitor does not function properly, see CHEST PULSE SENSOR TROUBLE- SHOOTING on page 9. b. If the heart rate monitor still does not function properly, the battery should be changed.
Page 29: Conditioning Guidelines
CONDITIONING GUIDELINES ergy. Only after the first few minutes does your body WARNING: begin to use stored fat calories for energy. If your goal Before beginning this is to burn fat, adjust the speed and incline of the tread- or any exercise program, consult your physi- mill until your heart rate is near the lowest number in cian.
Page 30: Part List
PART LIST—Model No. PETL75130 R0803A To locate the parts listed below, refer to the EXPLODED DRAWING attached in the centre of this manual. Key No. Qty. Description Key No. Qty. Description Left Foot Rail Static Decal Foot Rail Screw 3/4” Tek Screw...
Page 31 Key No. Qty. Description Key No. Qty. Description Console Base Plastic Stand-off Console Back Power Board Ground Screw/Choke Screw Optic Disk Key Clip Motor Isolator Hood Controller Bracket On/Off Switch Console Circuit Breaker Screw Ferrite Box Left Tray Pulse Receiver CD Holder Splitter Right Tray...
Page 32: Ordering Replacement Parts
Outside the UK: 0 (044) 113 387 7133 Fax: 0 (044) 113 387 7125 To help us assist you, please be prepared to give the following information: • The MODEL NUMBER of the product (PETL75130) • The NAME of the product (PROFORM 760 AIR treadmill) ®...
Page 33 EXPLODED DRAWING—Model No. PETL75130 R0803A To identify the parts shown on this EXPLODED DRAWING, refer to the PART LIST on pages 30 and 31 of the user’s manual.
Page 34 EXPLODED DRAWING—Model No. PETL75130 R0803A...
