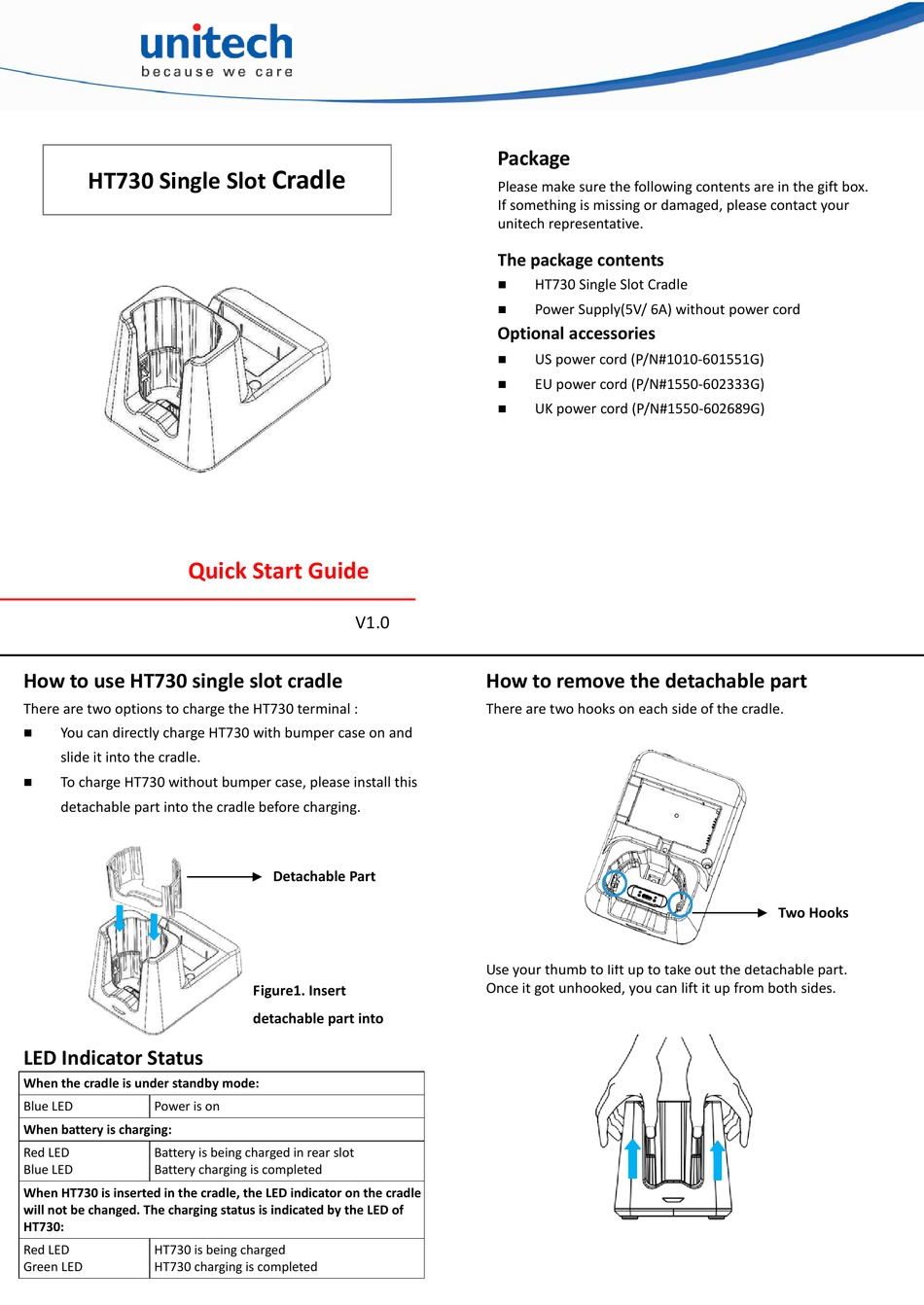

HT730 Single Slot
WW
Quick Start Guide
How to use HT730 single slot cradle
There are two options to charge the HT730 terminal :
You can directly charge HT730 with bumper case on and

slide it into the cradle.
To charge HT730 without bumper case, please install this

detachable part into the cradle before charging.
LED Indicator Status
When the cradle is under standby mode:
Blue LED Power is on
When battery is charging:
Red LED Battery is being charged in rear slot
Blue LED Battery charging is completed
When HT730 is inserted in the cradle, the LED indicator on the cradle
will not be changed. The charging status is indicated by the LED of
HT730:
Red LED HT730 is being charged
Green LED HT730 charging is completed
Cradle
V1.0
Detachable Part
Figure1. Insert
detachable part into
Package
Please make sure the following contents are in the gift box.
If something is missing or damaged, please contact your
unitech representative.
The package contents

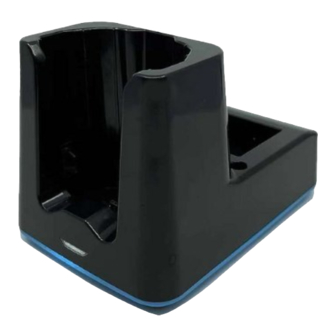

HT730 Single Slot Cradle

Power Supply(5V/ 6A) without power cord

Optional accessories
US power cord (P/N#1010-601551G)

EU power cord (P/N#1550-602333G)

UK power cord (P/N#1550-602689G)

How to remove the detachable part
There are two hooks on each side of the cradle.
Use your thumb to lift up to take out the detachable part.
Once it got unhooked, you can lift it up from both sides.
Two Hooks
