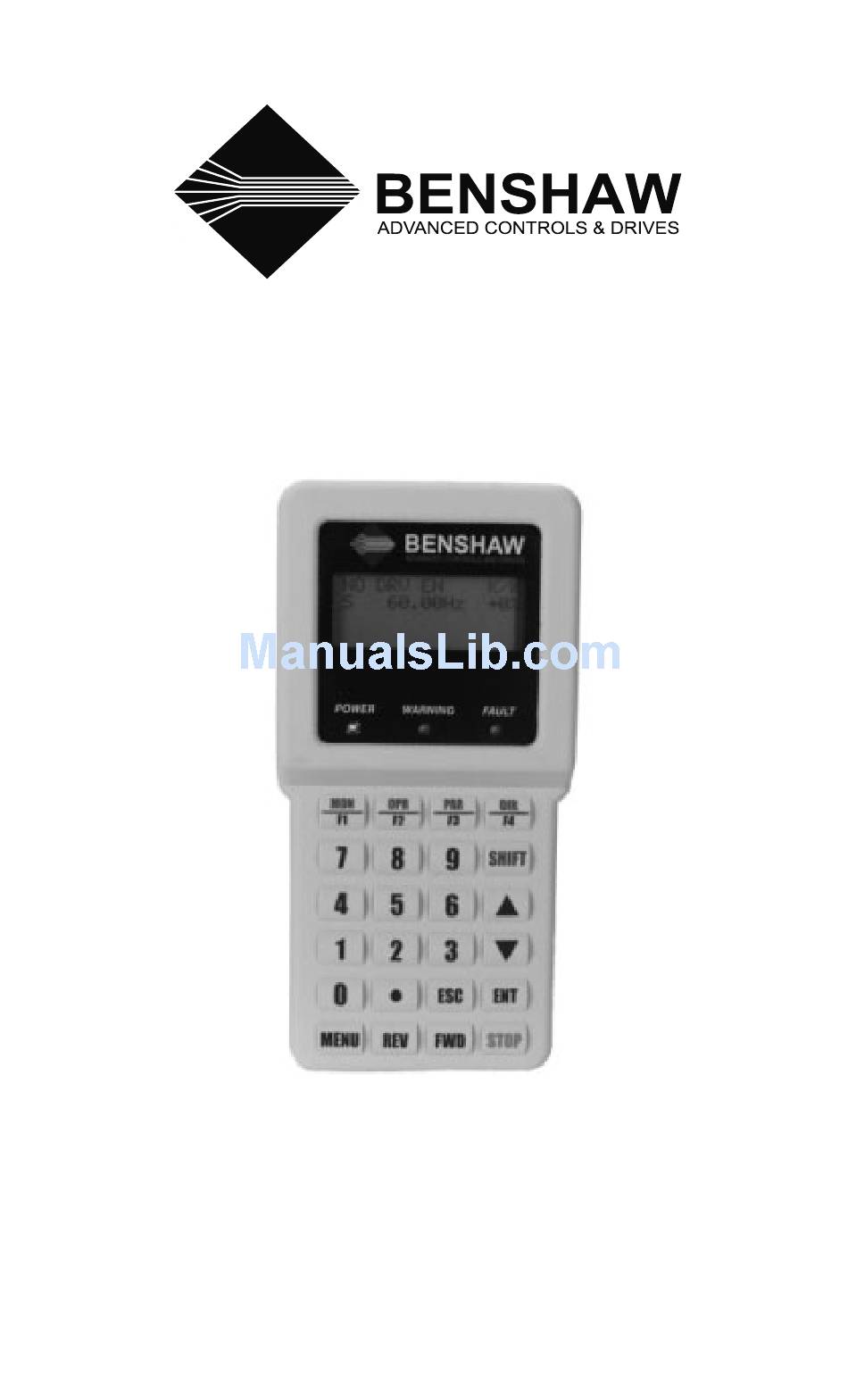

- Page 1 Publication #890020-05-01 Enhanced Keypad Manual The Leader In Solid Motor Control Technology © 2005 Benshaw Inc. All Rights Reserved...
-
Page 2: Table Of Contents
1.1 Introduction ......... . . 2 1.2 Keys on the Enhanced Keypad ......2 1.3 LEDs on the Enhanced Keypad . - Page 3 Introduction...
-
Page 4: Introduction
Introduction Introduction The enhanced keypad is available as a hand-held or remote door mounted installation for use with the RSi SX drive. It offers a significantly different look and feel for programming. It also allows you to monitor important parameters. - Page 5 1 - INTRODUCTION Table 1: Functions of the Keys on the Enhanced Keypad Description This key performs two functions: • When pressed by itself, it acts as the F1 function key, the function of which is defined by parameter F1 Key Config (see RSi SX Parameter Configuration manual).
-
Page 6: Leds On The Enhanced Keypad
If a fault occurs, the STOP key resets the fault. LEDs On the Enhanced Keypad LEDs on the Enhanced Keypad The enhanced keypad features three LEDs to provide status information. The following table describes these three LEDs. Table 2: LEDs on the Enhanced Keypad... -
Page 7: Alpha-Numeric Display
Alpha - Numeric Display Alpha-Numeric Display The enhanced keypad provides a 4 line by 16 character display (twice as large as that found on the standard keypad), three LEDs for status information, a 0 – 9 numeric keypad (with decimal), and several function keys that are used for navigation and control. -
Page 8: Modes And Displays Of The Enhanced Keypad
Modes and Displays of The Enhanced Keypad Modes and Displays of the Enhanced Keypad The enhanced keypad provides a variety of modes to assist you in monitoring and controlling a drive. The principal modes of the enhanced keypad are as follows: •... - Page 9 1 - INTRODUCTION The Monitor Mode In Monitor Mode, you may observe the value of selected parameters while the drive is running. This mode is activated by pressing SHIFT+MON/F1, or by navigating to this mode from the Menu Display Model. The parameters that may be monitored are as follows: •...
- Page 10 Operate mode. Figure 9: Enhanced Keypad Display and Information Shown for the Operate Mode 3-Letter Code for Control Path Keypad speed control with terminal strip Start/Stop control.
- Page 11 If the value is a function, a range is not provided. Typical displays for parameter values are shown below: Figure 10: Enhanced Keypad Display of the Two Types of Parameters Sample display for Sample display for...
- Page 12 1 - INTRODUCTION Change the displayed value to the desired value. For parameters that configure a function, use the up or down arrow key to move the cursor to the desired function and then press ENT. Note that the second line does not show the function just configured;...
- Page 13 1 - INTRODUCTION Change the displayed value to the desired value. For parameters that configure a function, use the up or down arrow key to move the cursor to the desired function and then press ENT. Note that the second line does not show the function just configured;...
- Page 14 1 - INTRODUCTION The Fault History Mode The enhanced keypad stores the four most-recent faults, and these are viewed in the Fault History mode. This mode is accessed by navigating to the Menu Display Mode and then selecting Fault History.
- Page 15 1 - INTRODUCTION To download the parameter set, perform the following steps: • On the EKP, press the MENU button. • Use the cursor to navigate to the keypad setup screen. • Press ENT. • Highlight the option entitled “DNload EEPROM,” which is the download parameter.
- Page 16 1 - INTRODUCTION Notes:...
- Page 17 Installation...
-
Page 18: Installation
2 - INSTALLATION Inspection Upon Receipt Inspection Upon Receipt When you first receive the EKP (enhanced keypad), perform the following checks: • Verify that you have received the proper keypad by checking the carton label and other shipping documentation. •... -
Page 19: Instructions For Panel-Mounting
2 - INSTALLATION Instructions For Panel-Mounting Instructions for Panel-Mounting If the enhanced keypad is to be hand-held, you only need to connect it to the drive by using the included interconnection cable. See 2.4 on page 18 for more information. -
Page 20: Connecting The Keypad To The Rsi Sx Drive
Enter the direct parameter mode as described on page 10. Select parameter 875. The valid settings are: SKP - Drive can be monitored and stopped from the enhanced keypad. No start or reference control. Both - The standard keypad and the enhanced keypad may be used to start/stop the drive and change the reference frequency. - Page 21 2 - INSTALLATION Figure 12: Drill Template for Panel Mounting 0.218" (5.5 mm) diameter Note: *May not print to scale. 0.875" (22.2 mm) diameter 0.218" (5.5 mm) diameter Bottom Edge of Enhanced Keypad...
- Page 22 2 - INSTALLATION Notes:...
- Page 23 Revision History; Revision Date ECO# #890020-05-00 19/11/02 Initial Release 29/03/05 ECO# 0982...
- Page 24 ¿ HVAC Packaged Drives Lima, Peru ¿ 18 Pulse/IEEE 519 Compliant Drives Bogota, Columbia RSC Series Contactors Visit Benshaw on the ¿ SPO/SPE/SPD Motor Protection Relays world wide web at ¿ Enclosed Full Voltage, Wye Delta, Two Speed www.benshaw.com, Part Winding and Reversing Starters...
