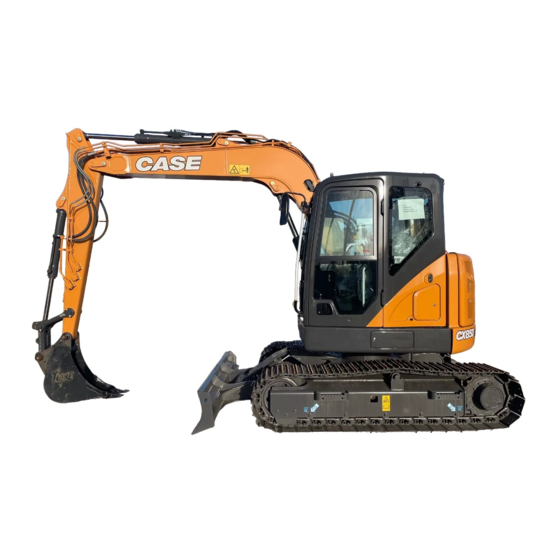

- Page 1 ORIGINAL INSTRUCTIONS - according to Directive 2006/42/EC, Annex I, 1.7.4.1 CX85D SR Long Reach Crawler Excavator OPERATOR’S MANUAL Supplement to 51606329 Part number 90332280 edition English April 2020...
-
Page 2: Table Of Contents
Contents 1 GENERAL INFORMATION Product identification ............... 1-1 2 MAINTENANCE Every 50 hours Grease points. -
Page 3: General Information
INFORMATION###_1_### Product identification The CX85D SR LR is a crawler hydraulic excavator. It consists of an undercarriage fitted with tracks and a turntable bearing which supports the upperstructure frame. The upperstructure frame supports the attachment, at the front end of the machine, plus the engine, hydraulics and cab. When the operator works the controls, the engine-driven pump delivers hydraulic fluid to the control valves. - Page 4 1 - GENERAL INFORMATION Engine ID label Manufacturer and model: YANMAR 4TNV98CT Serial number: SMIL19CEX0616BA Engine emission label SMIL19CEX0617BA...
- Page 5 1 - GENERAL INFORMATION Cab protection ROPS (Roll Over Protective Structure) Complies with ISO 12117-2. Product identification number: SMIL17CEX5115AA Cab protection FOPS (Falling Objects Protective Structure) Complies with ISO 10262 level 1 (cab roof). Complies with ISO 10262 level 2 (with optional bolt-on top guard).
- Page 6 1 - GENERAL INFORMATION Complies with ISO 10262 level 2 (with optional single frame bolt-on front grid). Product identification number: SMIL15CEX3853AA Component serial numbers Hydraulic pump: Swing reduction gear: Travel reduction gears: Travel control valve: Attachment control valve: Swing control valve:...
-
Page 7: Maintenance
2 - MAINTENANCE MAINTENANCE###_7_### Every 50 hours Grease points Lubricant: CASE AKCELA 251H EP MULTI-PURPOSE GREASE. SMIL19CEX2597FA Using a grease gun, inject grease of the specified type in the grease points shown in figures: • Bucket linkages NOTICE: the bucket linkage should be lubricated every 10 h if the machine is operated in water or mud. - Page 8 2 - MAINTENANCE • Arm link/connecting rod SMIL19CEX2599AA • Bucket cylinder bottom pin SMIL19CEX2600AA • Boom cylinder top pin SMIL19CEX2803AA • Boom cylinder bottom pin SMIL19CEX2804AA...
- Page 9 2 - MAINTENANCE • Arm cylinder top pin SMIL19CEX2811AA • Arm cylinder bottom pin SMIL19CEX2811AA...
-
Page 10: Every 1000 Hours
2 - MAINTENANCE Every 1000 hours Grease points Lubricant: CASE AKCELA 251H EP MULTI-PURPOSE GREASE. SMIL19CEX2597FA Using a grease gun, inject grease of the specified type in the grease points shown in figures: • Boom bottom pin SMIL19CEX2806AA... - Page 11 2 - MAINTENANCE • Boom/arm linkage SMIL19CEX2807AA...
- Page 12 2 - MAINTENANCE...
-
Page 13: Specifications
3 - SPECIFICATIONS SPECIFICATIONS###_9_### Machine specifications Engine Manufacturer and model YANMAR 4TNV98CT-L2WSH Electronic-controlled High-pressure Injection common rail Number of cylinders 98 mm (3.9 in) x 110 mm (4.3 in) Bore x stroke Displacement 3318 cm³/rev (202 in³/rev) Rated speed 2000 RPM Rated power ( ISO 9249 ) 50.7 kW (68.9 Hp) Cooling... - Page 14 3 - SPECIFICATIONS Digging performance Bucket digging force 3774 daN (8484 lbf) Arm digging force 3.10 m (122.05 in) 2121 daN (4768 lbf) Tracks Steel track 600 mm (23.6 in) Working lights One on attachment 24 V, 70 W One on cab 24 V, 70 W...
-
Page 15: Dimensions
3 - SPECIFICATIONS Dimensions SMIL19CEX2915FA 3.10 m (122.05 in) Boom 5.35 m (210.63 in) 2.98 m (117.32 in) 7.94 m (312.60 in) 1.43 m (56.30 in) (D) (without grousers) 0.75 m (29.53 in) 2.21 m (87.01 in) 2.85 m (112.01 in) 2.27 m (89.37 in) (H) (*) 2.72 m (107.09 in) - Page 16 3 - SPECIFICATIONS Working ranges SMIL19CEX2813HA...
- Page 17 3 - SPECIFICATIONS Arm 3.10 m (122.05 in) Boom 5.35 m (210.63 in) (A) Max digging reach 8.93 m (351.57 in) (B) Max digging reach at ground level (GL) 8.83 m (347.64 in) (C) Max digging depth 6.71 m (264.17 in) (D) Max dump height 7.49 m (294.88 in) (E) Max dump distance...
-
Page 18: Operating Weights
3 - SPECIFICATIONS Operating weights Long Reach Boom 5.35 m (210.63 in), Long Reach Arm 3.10 m (122.05 in), 0.19 m³ (0.25 yd³) General Purpose Bucket, 600 mm (24 in) track, operator, 8615 kg (18993 lb) fluids, full fuel tank Average ground contact pressure 29 kPa (4.2 psi) - Page 19 Index ###_Index_### Dimensions ......... . . Grease points .
- Page 20 Dealer’s stamp CNH Industrial Italia S.p.A. reserves the right to make improvements in design and changes in specifications at any time without notice and without incurring any obligation to install them on units previously sold. Specifications, descriptions, and illustrative material herein are as accurate as known at time of publication, but are subject to change without notice.
