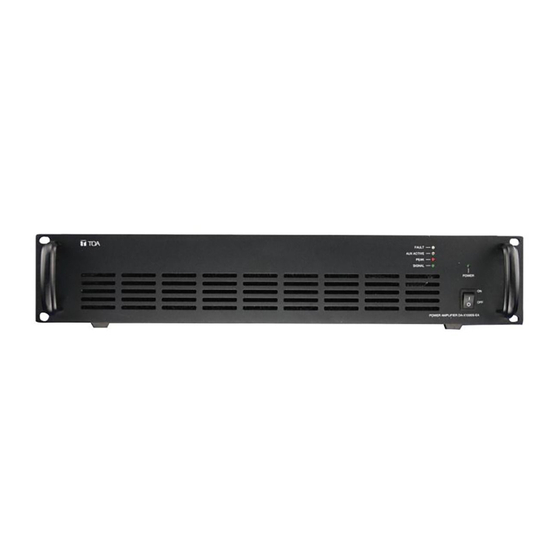

POWER AMPLIFIER
An all-pole mains switch with a contact separation of at least 3 mm in each pole shall be incorporated in the
electrical installation of the building.
Thank you for purchasing TOA DA-X1000S power amplifier.
Before attempting to connect,operate or adjust this Amplifier,please read these instructions completely and
carefully and save this Manual.
INSTRUCTION MANUAL
DA-X1000S

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DA-X1000S and is the answer not in the manual?

Questions and answers

Summary of Contents for Toa DA-X1000S

  • Page 1 An all-pole mains switch with a contact separation of at least 3 mm in each pole shall be incorporated in the electrical installation of the building. Thank you for purchasing TOA DA-X1000S power amplifier. Before attempting to connect,operate or adjust this Amplifier,please read these instructions completely and...
  • Page 2: Table Of Contents

    6.NAME AND FUNCTION OF EACH PART 6.1 FRONT PANEL 6.2 REAR PANEL 7.SETTING AND CONNECTION METHOD 7.1 SWITCH SETTING AND SPEAKER CONNECTION 7.1.1 DA-X1000S CONNECTION 8.CONNECTING METHOD OF THE DETACHABLE WIRING PLUG 9.LIST OF PROTECTION OPERATIONS 10.INSTALLATION OF FILTER SUPPORT AND FILTER 11.CLEANING OF FILTERS 12.DIMENSIONAL DRAWING...
  • Page 3 Should the following irregularity be found during use, immediately switch off the power, disconnect the power supply plug from the AC outlet and contact your nearest TOA dealer. Make no further attempt to operate the unit in this condition as this may cause fire or electric shock.
  • Page 4: Features

    Do not operate the unit for an extended period of time with the sound distorting. Doing so may cause the connected speakers to heat, resulting in a fire. Contact your TOA dealer as to the cleaning.If dust is allowed to accumulatein the unit over a long periodof time, •...
  • Page 5: Installation Notes

    • Please use the specified constant voltage loudspeaker. It may lead to the output power failure when connecting the loudspeaker beyond the specified voltage. • There is a filter in front of the apparatus, please clean the filter regularly, if the filter is blocked, it may lead to abnormal heat dissipation.
  • Page 6: Name And Function Of Each Part

    The orange light flashes when the ACTIVE is short connected, and when the AUX auxiliary signal is inputted. 5. Power indicators (POWER) The green light flashes when power of this device is on. 6.2 Rear panel MODEL(型 ):DA-X1000S-AS OUTPUT (输 ):1000W (AC输 ) 1. AC power input connection (AC INPUT) A correct capacity of fuse and power cable should be applied.
  • Page 7: Setting And Connection Method

    AC power input speaker output terminal input volume Figure is from DA-X1000S. Step 1. Turn off the power supply. Step 2. When the network port emergency signal switches to the AUX regular broadcast signal, the connector ACTIVE-A is short to the ACTIVE-B.
  • Page 8: Switch Setting And Speaker Connection

    7.1 SWITCH SETTING AND SPEAKER CONNECTION [1 input 1 output ] (Factory Setting) ACTIVE connector disconnected The volume The volume potentiometer adjusts the lowest level. potentiometer 10Ω Power switch 8. CONNECTION OF DETACHABLE WIRING PLUG Attentions • Be sure to use the shield wire. •...
  • Page 9: List Of Protection Operations

    Remark Recommended one-shaped screwdriver: the width of the blade mouth is about 3 MM. Shape of the screwdriver knife port 9. LIST OF PROTECTION OPERATIONS Abnormal Condition Reset Protection The operation display Solution The current limiter Automatic reset after starts in operation The peak or protection Overload current Remove overload...
  • Page 10: Cleaning Of Filters

    11. CLEANING OF LTERS Step 1 Turn off the power supply. Step 2 Remove the ventilation panel. Step 3 Unscrew the screw, remove the bracket. filter Step 4 Remove the filter inside the panel. filter support Step 5 Remove the dust inside the filter. screw Step 6 Lock the filter with the filter support.
  • Page 11: Block Diagram

    13.BLOCK DIAGRAM 13.1 DA-X1000S...
  • Page 12: Description Of Wiring Connection

    14. DESCRIPTION OF WIRING CONNECTION 14.1 PA LINK 14.1.1 RJ45 network input 1. H (+) 2. C (-) 3. LINK-PA 4. G (GND) 8 7 6 5 4 3 2 1 5. NC 6. DET (Protection port output control,HI-LEVEL for output protection, Lo-LEVEL for normal operation) 7.
  • Page 13: Specification

    15. SPECIFI CATIONS 15.1 DA-X1000S Model Name DA-X1000S Power Supply 220V-240V〜50/60Hz T6.3AL Class-D Amplifier Amplifier Power consumption 30W(Standby mode), 1200W (rated output of 100V) 1 Channel: PA LINK (dedicated configuration VX-1000MC use) Input 1 Channel: AUX INPUT (PIN 1,2,3) balanced input, (0dB (1V): input level adjusted to maximum, input impedance of 20KΩ...
  • Page 14: Fuse Replacement Method

    Step 4. Reinstall the socket safety box, to install in place. Power outlet INPUT POWER AMPLIFIER ⼤ ) (功 MODEL (型 ):DA-X1000S-AS OUTPUT (输 ) :1000W PA LINK ( ) MADE IN CHINA ( 中国制 ) 100V OUTPUT ACTIVE...
  • Page 15 Traceability Information for Europe Manufacturer: Authorized representative: TOA Corporation TOA Electronics Europe GmbH Suederstrasse 282,20537 Hamburg, 7-2-1,Minatojima-Nakamachi,Chuo-ku,Kobe,Hyogo, Japan Germany URL: https://toa.com.sg/ TOA Corporation 570.100002-TO V.3...
