Power Amplifier
Power Amplifier
All electrodes in electrical equipment in the building must have more than 3 mm contact blocking distance.
All-electrode blocking switch and must be installed.

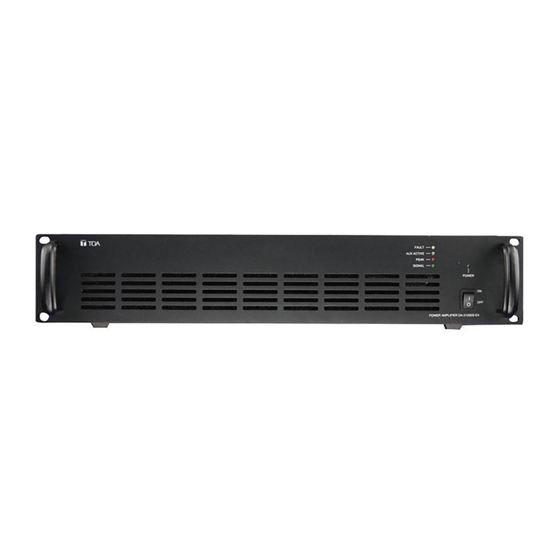

Thank you for purchasing TOA DA-X1000S1&DA-X0130F channel power amplifier.
Before attempting to connect,operate or adjust this Amplifier,please read these instructions completely and
carefully and save this Manual.
Usermanual
DA-X1000S
DA-X0130F
DA-X1000S
DA-X0130F
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Toa DA-X1000S
Summary of Contents for Toa DA-X1000S
- Page 1 All electrodes in electrical equipment in the building must have more than 3 mm contact blocking distance. All-electrode blocking switch and must be installed. Thank you for purchasing TOA DA-X1000S1&DA-X0130F channel power amplifier. Before attempting to connect,operate or adjust this Amplifier,please read these instructions completely and...
-
Page 2: Table Of Contents
6.Name and function of each part 6.1 Front panel 6.2 Rear panel 7.Setting and connection Method 7.1 Switch setting and speaker connection 7.1.1 DA-X1000S connection 7.1.2 DA-X0130F connection 8.Connecting method of the detachable wiring plug 9.List of Protection Operations 10.Installation of filter support and filter 11.Cleaning of filters... -
Page 3: Safety Instructions
1. Safety Instructions • Read all instructions-All the safety and operating instructions should be read before operating this apparatus. • Follow all instructions- All following notes and important security-related issues should be followed. • Keep the instructions-The safety and operating instructions should be retained for future reference. About Marking The safety markings used in this manual are used to prevent human injury and property damage due to misoperation. - Page 4 Warning: The marking is intened to alert that user to the potential safety risks that could lead to death or serious injury in the event of misoperation. During the use: •Please do not put foreign bodies inside the apparatus. Please do not insert or drop the metal or flammable material from the vent of the apparatus. Otherwise it may causes fire, electric shock and so on.
-
Page 5: Summary
Otherwises it will causes a fire,electric shock. 2. Summary DA-X1000S is 1 channel *1000 W,Class D power amplifier with high output durable of constant voltage. DA-X0130F is 4 channels *130 W,Class D power amplifier with high output durable of constant voltage. -
Page 7: Name And Function Of Each Part
6. Name and function of each part 6.1 Front panel DA-X1000S DA-X0130F 1. Output indicators (SIGNAL) These indicators show current signal output level. 2. Clip indicators (PEAK) These indicators warn against overload shortly on the each output channels. We would like to recommend for users to adjust VOLUME control when CLIP indicators are flickering to make best performance. -
Page 8: Rear Panel
6.2 Rear panel DA-X1000S MODEL (型号):DA-X1000S-AS OUTPUT (输 ):1000W (AC输 ) DA-X0130F MODEL (型号):DA-X0130F-AS (AC输 ) 1. AC power input connection (AC INPUT) A correct capacity of fuse and power cable should be applied. Please make sure the value of fuse before replacing. -
Page 9: Setting And Connection Method
7. Setting and connection method RJ45 Network connector signal input terminal MODEL (型号):DA-X0130F-AS (AC输 ) AC power input speaker output terminal volume output Figure is from DA-X0130F. Step 1. turn off the power supply. Step 2. When the network port emergency signal switches to the AUX regular broadcast signal, the connector ACTIVE-A is short to the ACTIVE-B. -
Page 10: Switch Setting And Speaker Connection
7.1 Switch setting and speaker connection 7.1.1 During the use of DA-X1000S [1 input 1 output ] (Factory Setting) disconnected ACTIVE connector The volume The volume potentiometer adjusts the lowest level. potentiometer 10Ω Power switch DA-X0130F 7.1.2 During the use of... -
Page 11: Connecting Method Of The Detachable Wiring Plug
8. Connection of detachable wiring plug Attentions • Be sure to use the shield wire. • Please pay attention to the exposed part of the wire. Please avoid tin plating. When tying the wire, if the solder is damaged, it may increase the contact resistance, resulting in an abnormally increased temperature at the contact site. -
Page 12: List Of Protection Operations
9. List of Protection Operations Protection Abnormal Condition Reset The operation display Solution The current limiter starts in operation Automatic reset after The peak or protection Overload current Remove overload when the specified connecting the normal indicator is on. impedance is load. -
Page 13: Installation Of Filter Support And Filter
10. Installation of filter support and filter Install the filter first , and then lock the filter support. Please check the below image. filter support filter screw 11. Cleaning of filters filter screw filter support Step 1 turn off the power supply. Step 2 remove the ventilation panel. -
Page 14: Integratedcircuitdiagram
13.Integratedcircuitdiagram 13.1DA-X1000S... -
Page 15: X0130F
13.2DA-X0130F... -
Page 16: Description Of Wiring Connection
14. Description of wiring connection 14.1 PA LINK 14.1.1 RJ45 network input 1. H (+) 2. C (-) 3. LINK-PA 4. G (GND) 5. NC 8 7 6 5 4 3 2 1 6. DET (Protection port output control,HI-LEVEL for output protection, Lo-LEVEL for normal operation) 7. -
Page 17: X1000S
15. Specifications 15.1 DA-X1000S Model Name DA-X1000S Power Supply 220V-240V〜50/60Hz T6.3AL Class-D Amplifier Amplifier Power consumption 30W(Standby mode), 1200W (rated output of 100V) 1 Channel: PA LINK (dedicated configuration VX-1000MC use) Input 1 Channel: AUX INPUT (PIN 1,2,3) balanced input, (0dB (1V): input level adjusted to maximum, input impedance of 20kΩ... -
Page 18: X0130F
15.2 DA-X0130F Model Name DA-X0130F Power Supply 220V-240V〜50/60Hz T4AL Class-D Amplifier Amplifier Power consumption 85W(Standby mode), 740W (rated output of 100V) 4 Channel: PA LINK (dedicated configuration VX-1000MC use) Input 4 Channel: AUX INPUT (PIN 1,2,3) balanced input, (0dB (1V): input level adjusted to maximum, input impedance of 20kΩ... -
Page 19: Fuse Replacement Method
Power outlet CH4 INPUT CH3 INPUT CH2 INPUT CH1 INPUT POWER AMPLIFIER (功 ⼤ ) MODEL (型号):DA-X1000S-AS RATED OUTPUT （ 额 输 ） :4x130W PA LINK PA LINK PA LINK PA LINK （ ） MADE IN CHINA （ 中国制 ）... - Page 20 570.100001-TO...
