  • Page 1 HITCH TRIMMER LAWN MOWER 3PTRIM, 3PTTRIM-TRIMCORDKIT 191441, 191411 Operator’s Manual Read the Operator’s Manual entirely. When you see this symbol, the subsequent instructions and warnings are serious follow without exception. Your life and the lives of others depend on it!
  • Page 2: General Warnings

    GENERAL WARNINGS READ and UNDERSTAND the manual completely before using 3-POINT HITCH TRIMMER/MOWER. Become familiar with the operation and service recommendations to ensure the best performance from your machine. DANGER Your 3-POINT HITCH TRIMMER is driven by a PTO shaft that transfers power from your Tractor. The Tractor and PTO shaft are extremely dangerous and can cause serious injury or death if not used properly.
  • Page 3 distances at great velocity. Do not travel over loose materials such as gravel or mulch with the trimmer head spinning. Doing so could cause injury or property damage from thrown objects. Disengage the PTO shaft to stop the spinning cords and shut off the Tractor engine when another person or pet approaches.
  • Page 4: A Note To All Users

    • Never, under any conditions, remove, bend, cut, fit, weld, or otherwise alter standard parts on the 3PT Trimmer. This includes all shields and guards. Modifications to your machine could cause personal injuries and property damage and will void your warranty. •...
  • Page 5: Specifications

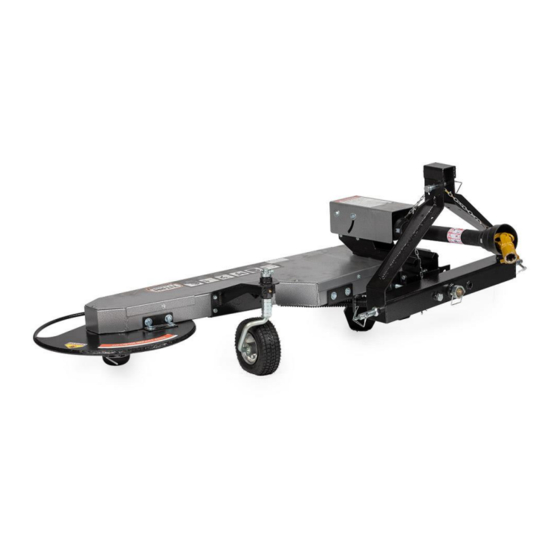

    It may be helpful to familiarize yourself with the controls and features of your 3-POINT HITCH TRIMMER/MOWER as shown in Figure 1 before beginning these procedures. SPECIFICATIONS...
  • Page 6 TRACTOR REQUIREMENTS CATEGORY 1, 25 TO 45 HP MAX. DRIVE TRACTOR PTO PTO SPEED 540 PRM NUMBER OF TRIMMER CORDS BELT A-2565 V-BELT BELT ADJUSTMENT SPRING LOADED IDLER PULLEY MAX. WHEELBASE (DISTANCE FROM 80” OUTSIDE TO OUTSIDE OF REAR WHEELS) CUTTING HEIGHT 5 HEIGHTS, 1.5”...
  • Page 7: Step 3: Installing The Wheel Assembly

    1. Slide the pivot pin into the mounting hole of the 3-point bracket, then fixed with locking ring and drive pin. 2. Insert the hex bolt M18x240 to the 3-point bracket and fixed with hex nut M18. 3. Attach the spring-back assembly to the frame using hex bolt M12x55 and nylon lock nut M12. STEP 3: INSTALLING THE WHEEL ASSEMBLY...
  • Page 8 1. Insert the wheel shaft into the wheel support from underneath, install the spacers on top and secure with the hitch pin. Note: The wheel height can be adjusted as needed. STEP 4: CALCULATING LENGTH OF PTO SHAFT NEEDED...
  • Page 9: Tools Needed

    The PTO Shaft provided with your Trimmer is 32” overall compressed length and will work “as is” for most applications. Before you install the PTO shaft it is good practice to calculate optimum PTO shaft length according to your tractor and usage needs to determine if modifications are needed. WARNING The minimum recommended overlap of the tubes at the center of the PTO shaft should be 6”.
  • Page 10 having all four 10 cords installed and/or at the same length will cause excessive vibration and could damage the machine. 1. Insert the end of a trimmer cord into the inlet hole (large, slotted cutout) push it in until the end protrudes out the other side approximately 10mm.
  • Page 11 1. Align the hole in the anti-wrap canister with the internal housing at the location shown. 2. Insert a Philips head screwdriver into the hole in the anti-wrap canister and the hole in the internal housing. 3. Rotate the plastic spherical cap until the screwdriver sliders into a hole in the shaft, locking it into place.
  • Page 12 STEP 7: GREASING THE WHEEL SUPPORT TOOLS NEEDED: • Flexible hose grease gun • Lithium grease • Clean cloth Apply a quality general-purpose lithium grease with a hand-pumped grease gun to each of the support grease fitting.
  • Page 13: Operation Notes

    OPERATION INSTRUCTIONS WARNING • This machine is designed to operate at 540 rpm PTO shaft speed only! Never operate at a faster speed; doing so can cause serious injury to the operator or bystanders and could cause damage to the machine that is not covered under warranty. •...
  • Page 14: Engaging The Trimmer Head

    ENGAGING THE TRIMMER HEAD 1. Ensure that the trimmer is lowered to the ground and all guards are in place and properly secured before using. 2. Set tractor throttle at IDLE and engage the PTO. 3. Increase tractor throttle to the RPM’s required to obtain 540 PTO speed. Note: See your tractor manual for detailed information on tractor operation.
  • Page 15: Maintenance Position

    MAINTENANCE POSITION Many maintenance procedures can be performed easier by positioning the trimmer in an upright “maintenance” position. This position is for maintenance purposes only. Do not transport or operate the trimmer in the upright position. WARNING • Two people are required when setting the trimmer body to the maintenance position. One person must steady the trimmer as the other installs the bolt.
  • Page 16: Troubleshooting

    TROUBLESHOOTING Most problems are easy to fix. Consult the troubleshooting table below for common problems and their solutions. WARNING Disengage PTO, shut down the tractor engine, remove the key, wait for all moving parts to come to a complete stop, disconnect the PTO shaft from the tractor, then wait five minutes before performing any maintenance procedure or inspection on the trimmer.
  • Page 17 PARTS DIAGRAM / EXPLODED VIEW...
  • Page 18 REF# DRAWING NO. DESCRIPTION TS600-02000 BASE 9604-30305 SINGLE ROW TAPER ROLLER BEARING TS600-00003 SPACER B TS600-00004 ARTICULATING BRACKET A TS600-00005 ARTICULATING BRACKET B 9101-10040-DX8.8 HEX BOLT M10X40 9301-1000-DX FLAT WASHER Ø10 TS6000-03000 GEARBOX FIXED FRAME 9215-10000-DX8.8 HEX FLANGE LOCK NUT M10 TS600-01000 3-POINT BRACKET TS600-00006...
  • Page 19 9302-06000-DX BIG FLAT WASHER Ø6 9101-01016-DX8.8 HEX BOLT M6X16 9302-08000-DX BIG FLAT WASHER Ø8 6215-08000-DX8.8 HEX FLANGE LOCK NUT M8 TS600-12000-DX WHEEL AXLE SPACER 9010-08020 HEX BOLT M8X20 TS600-00012 ADAPTER TS600-00013 SPACER TS600-00014 ANTI WRAP CAN TS600-00015 BRIQUETTING A TS600-00016 MOLDED SPACER TS600-00017 PLASTIC SPHERICAL CAP...
  • Page 20 ACKNOWLEDGEMENT OF RISK AND RELEASE OF LIABILITY The use of any equipment, including this one, involves the potential risk of injury. Apart from any warranty claim that might be presented for a claimed defect in material or workmanship of the product, you accept and assume full responsibility for any and all injuries, damages (both economic and non- economic), and losses of any type, which may occur, and you fully and forever release and discharge Titan, its insurers, employees, officers, directors, associates, and agents from any and all claims,...
  • Page 21 NEED HELP? CONTACT US FIRST. 1-800-605-7595 info@palletworks.com www.palletforks.com © 2021 Titan Brands...
