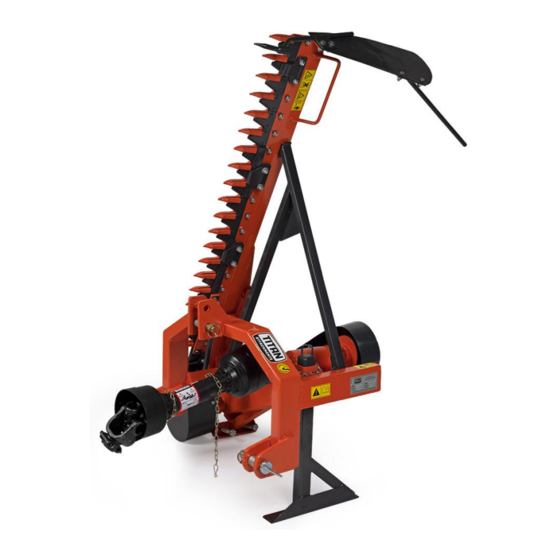

- Page 1 FORAGE SICKLE BAR MOWER SCKLBAR60, SCKLBAR75 191569, 191570 Operator’s Manual Read the Operator’s Manual entirely. When you see this symbol, the subsequent instructions and warnings are serious follow without exception. Your life and the lives of others depend on it!
-
Page 2: Purpose Of Use
1.1 PURPOSE OF USE The TITAN ATTACHMENTS SICKLE BAR MOWER is designed for the mowing of fields, ditches, canals, and embankments. It can only operate by means of a cardan shaft applied to the PTO of an agricultural tractor equipped with lift and universal three-point hitch. -
Page 3: Assembly Drawing
1.3 ASSEMBLY DRAWING 1. Main Frame 2. Lower 3 - Point Linkage 3. Upper 3 - Point Linkage 4. Safety Cover 5. Connecting rod 6. Mowing guide 7. Support 8. Teeth / Finger Guide 9. Blade 10. Parking stand 11. PTO 12. -
Page 4: Identification Label
1.4 IDENTIFICATION LABEL Each individual machine carries an identification label containing the information herein after. Write down plate information in the field provided. When discussing with a seller / manufacturer, please state the model and serial number of the machine. This will help to prevent unnecessary delays and misunderstandings. -
Page 5: Usage Instruction
2 USAGE INSTRUCTION Carefully read all the instructions before using the machine. 2.1 Before Use & Adjustments Before mounting the Sickle Bar Mower make sure that all blades, nuts & bolts are properly secured. This implement is to be used with tractor with PTO at 540 RPM and clockwise rotation. Also determine Operate the implement up and down steep slopes, not across slopes, to prevent the tractor from tipping. - Page 6 2.3 OPERATION ON UNEVEN TERRAIN DANGER: Be careful of rollover when operating tractor and implement over uneven ground. The following precautions should always be observed when working on uneven terrain: 1. In extremely uneven terrain rear wheel weights, front tractor weights, and/or tire ballast should be used to improve stability.
-
Page 7: Parking Instructions
• Before inserting the PTO, make sure that there are no people or animals nearby and that the rpm selected corresponds to that permitted. Never exceed the maximum admissible speed. • Watch out for the rotating universal joint. • Do not insert the PTO with the engine off or synchronized with the wheels. •... - Page 8 It is designed with capability of cutting Angle +12˚ up and -5° down. The low horsepower requirements make the sickle bars capable of handling jobs that are not recommended for conventional disc mowers. Before cutting the sickle bar mower make sure the set cutting angle through the bolt support. It can easily set angle through a single person with manual ways.
-
Page 10: General Norms
a. Danger and Indicator Signals The signs described are reproduced on the machine. Keep them clean and replace them if they come off or become illegible. Read and recognize safety information. Be alert to the potential for personal injury when you see this safety-alert label. NEVER ALLOW ANY PERSON TO RIDE THE MACHINE DURING WORK OR TRANSPORT. -
Page 11: Tractor Hitch
use are in perfect working order. 7. Before starting up the equipment, check the area surrounding the machine to ensure that there are no people, nearly (especially children or pets) and ensure that you have excellent visibility. 8. Use suitable clothing. Avoid loose clothing or garments with parts that could in any way get caught in the rotating or moving parts of the machine. -
Page 12: Service And Maintenance
TRANSPORT ON ROAD 1. When driving on public roads, be sure to follow the highway code of the country involved. 2. Any transport accessories must be provided with suitable signs and guards. 3. It is very important to remember that road holding capacity as well as direction and braking capacity can be influenced, sometimes considerably by equipment being either carried or towed. -
Page 13: Troubleshooting
c. Storage of Sickle Bar Mower after Work After seasonal use it is important to perform the following for prolonged storage: 1. Wash the implement carefully. 2. Replace safety shield on cutting bar. 3. Tighten all hardware. 4. Grease all areas indicated under Maintenance. 5. - Page 14 PARTS DIAGRAM / EXPLODED VIEW 6.1 SICKLE BAR MOWER 3-POINT FRAME ASSEMBLY...
- Page 16 6.2 SICKLE BAR MOWER 3-POINT FRAME & CONNECTING ROD ASSEMBLY...
- Page 17 6.3 SICKLE BAR MOWER 3-POINT FRAME & CUTTING BAR ASSEMBLY...
- Page 19 6.4 POWER INPUT HUB ASSEMBLY...
- Page 20 6.5 HINGE HUB ASSEMBLY...
-
Page 21: Demolition And Disposal
DEMOLITION AND DISPOSAL This operation is to be carried out by the customer. Before demolishing the machine, you are advised to carefully check its physical condition and ascertain whether there are any parts of the structure that may be susceptible to structural collapse or breakage during demolition. The customer should operate in compliance with the environment protection laws in force in his/her country. - Page 22 ACKNOWLEDGEMENT OF RISK AND RELEASE OF LIABILITY The use of any equipment, including this one, involves the potential risk of injury. Apart from any warranty claim that might be presented for a claimed defect in material or workmanship of the product, you accept and assume full responsibility for any and all injuries, damages (both economic and non- economic), and losses of any type, which may occur, and you fully and forever release and discharge Titan, its insurers, employees, officers, directors, associates, and agents from any and all claims,...
- Page 23 NEED HELP? CONTACT US FIRST. 1-800-605-7595 info@palletworks.com www.palletforks.com © 2021 Titan Brands...
