Memphis Shades 2320-0065 Mounting Instructions

2320-0065 Detachable Fats/Slims Plate Only, BLACK
Mounting Kit for HD FXSTS / FLSTS Springer W/O Light Bar
Read and follow these directions carefully.
During installation, make sure that the windshield and hard-
ware do not interfere with any cables or wiring when the forks
are turned all the way in either direction. Also make sure,
through the full range of adjustment, that the windshield and
hardware do not hit the tank.
This is a detachable windshield, ALWAYS make sure the
Locking Mechanism is Fully Engaged after installing the
windshield!
The improper installation of this kit and related compo-
nents could result in serious injury or death.
Additional tools required, that are not included in this kit.
7/16" or 11mm wrench.
1. Cover gas tank and front fender with towels to avoid
damage during installation.
2. Install the two mounting plates onto the windshield, using
the bottom and third bolt up. Leave the nylon washers off.
The small tab goes to the bottom, big one at the top. (see Fig-
ure 1) Tabs face out away from the headlight.
3. Slip the windshield mounting plates and windshield onto
the Spool Bushings, (see figure 2 and 3) and secure the left
and right side locking mechanism.
4. Adjust the height, angle and alignment of the windshield
and tighten ALL bolts.
Note: This is a detachable windshield, ALWAYS make sure
the Locking Mechanism is Fully Engaged after installing
the windshield! (see figure 3)

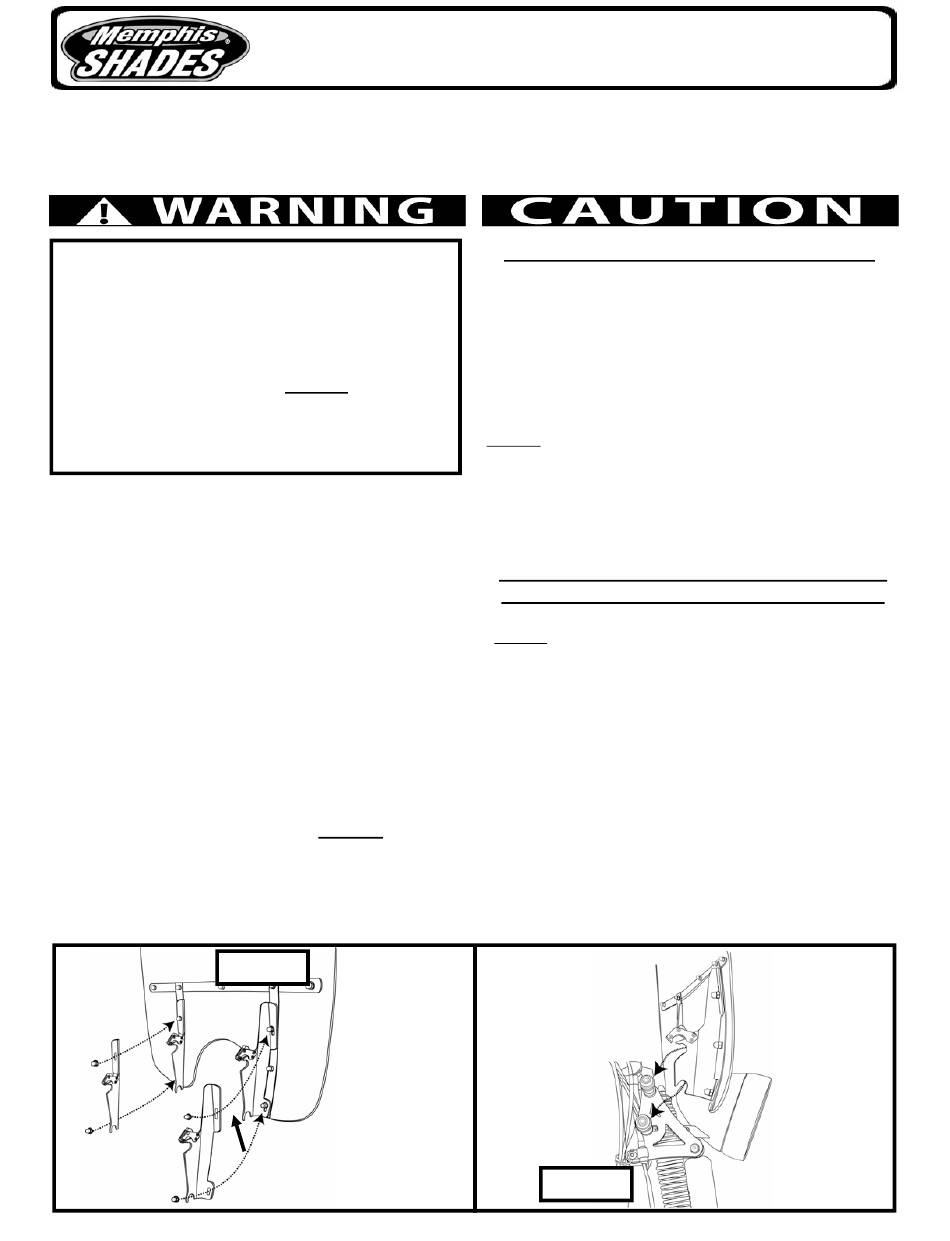

Figure 1
MOUNTING INSTRUCTIONS
Memphis Shades Windshields and Lowers are made of
Lucite® acrylic, and will last for years with proper care.
Clean your windshield with plenty of soapy water — mild
dishwashing liquid is best — and a soft cotton cloth. Use your
bare hand to feel and dislodge bugs, or cover with a wet soapy
towel and let it soak. Don't use paper towels and don't scrape
with anything. Small scratches can be removed with NOVUS
# 2.
NEVER use any glass cleaning products, petroleum based
chemicals, or cleaning agents with ammonia, bleach or any
other harsh chemicals. This includes (but not limited to)
RainX, brake fluid, acetone, paint thinner, benzene and
gasoline. "If it hurts your nose, it will hurt the plastic."
NOTE: At certain times of the day the Sunlight can reflect
off the curvature of a windshield and cause extreme heat
build-up on motorcycle instruments and instrument panel.
Take care when parking. Park facing the sun, place an opaque
object over the instruments or adjust the windshield to avoid
reflections.
IMPORTANT CARE AND CLEANING INSTRUCTIONS
Glass cleansing agents will cause severe damage
to your windshield, and will void your warranty.
Figure 2
MEB8874 1-1-11
