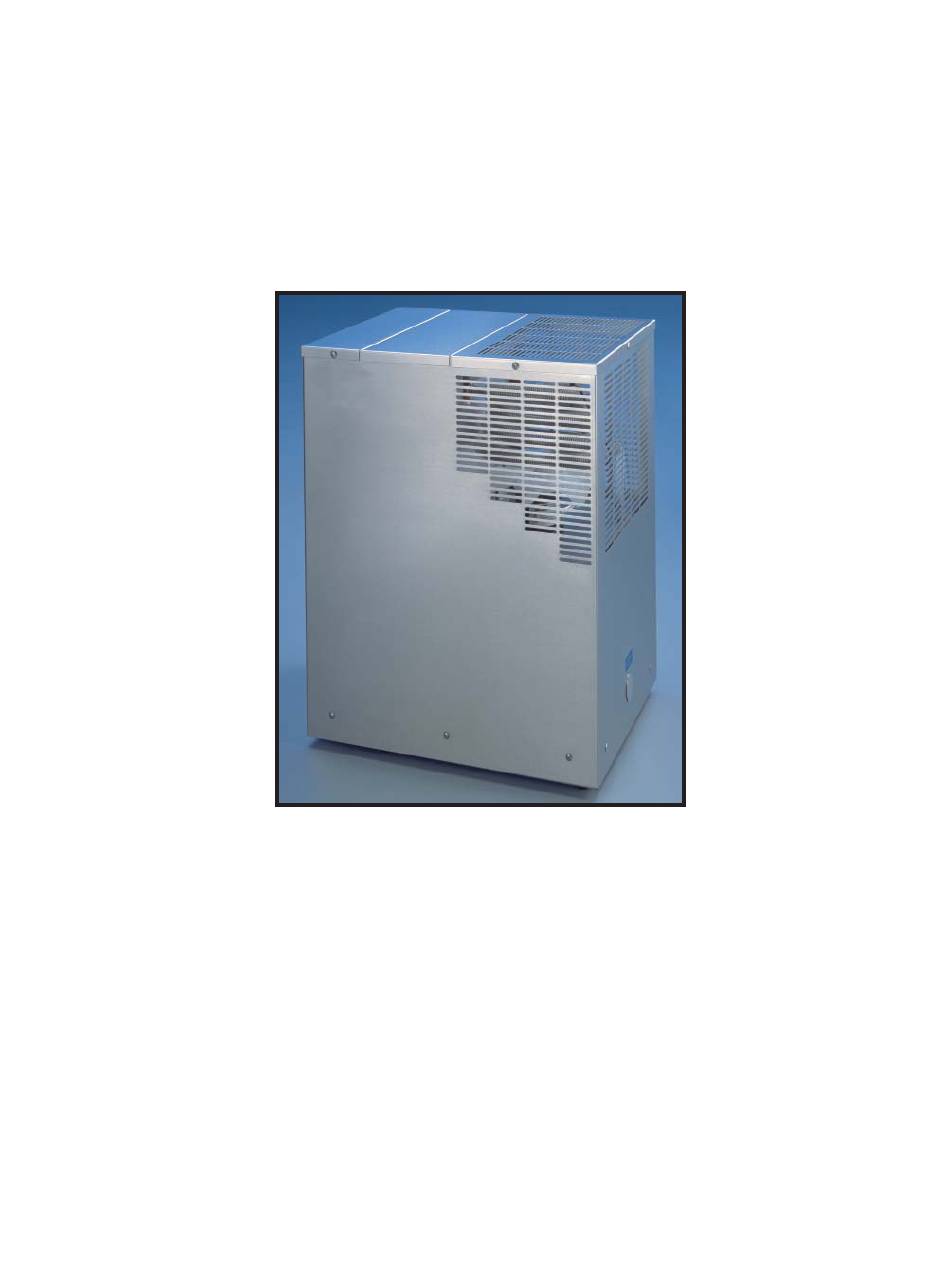

- Page 1 ™ Mega-25 Operator’s Manual Pure Water Brand 4511 NW 42nd Lincoln, NE 68524 Phone: 402-467-9300 • Fax: 402-467-9393...
-
Page 2: Table Of Contents
Table of Contents Important Safety Information ............3 Introduction..................4 Record Important Information............4 Included With Your Distiller...............4 Optional Accessories ................5 How Your Distiller Works ..............6 Preparing for Installation ..............7 Installation ..................8 Connecting the Incoming Water Line ..........8 Connecting the Boiling Tank Drain Line & Overfl ow Line ..10 Connect the Distilled Water Line and Faucet ...... -
Page 3: Important Safety Information
The installation and use of this product must comply with all applicable state and lo- cal laws and regulations. • IMPORTANT: This distiller is designed to be used only with Pure Water accessories and replacement components. • This distiller is equipped with fused pump circuitry. In the event of pump failure, check the pump fuse located on the panel under the switches. -
Page 4: Introduction
The model and serial number are found on the back panel. You should record the serial number below for future references. Date of Purchase: Model: Pure Water Mega 25 Serial Number: Purchased from: Included With Your Distiller In addition to your Mega 25 distiller, your box will contain the following: •... -
Page 5: Optional Accessories
Optional Accessories The following are optional accessories or maintenance items for the Mega-25. They may be purchased from your Dealer or Distributor, or directly from Pure Water. Auxiliary hook-up kit for running distilled water to your refrigerator or ice- •... -
Page 6: How Your Distiller Works
How Your Distiller Works The Mega 25 is designed to produce approximately one gallon of high-quality, pure distilled water every two hours, or up to twelve gallons in a 24-hour period. The Mega 25 is a fully automatic unit. The water level in the boiling tank and stor- age tank are controlled by individual fl... -
Page 7: Preparing For Installation
Before proceeding with the installation, you must determine the mode of opera- tion (Auto Drain or Manual Drain). Pure Water recommends that your Mega 25 be operated with the Auto Drain, but we recognize that all locations may not have an adequate drain available. -
Page 8: Installation
Note: The Mega 25 comes standard with a saddle tapping valve. In some areas a saddle tapping valve may not be permitted. In such instances, con- tact your authorized Pure Water Distributor for other water line connection options. To hook-up the Incoming Water Line: 1. - Page 9 d. Coil a minimum of 8 feet of tubing behind the distiller to allow it to be moved away from the wall for cleaning or service. e. Cut the required length of tubing to run from the saddle tapping valve to the distiller.
- Page 10 fl oor. If your installation plans do not call for installing with a drain, you can manually close the drain by using the Manual Drain Kit. Pure Water cannot be responsible for any damage resulting from improper installation.
-
Page 11: Connect The Distilled Water Line And Faucet
Connecting the Distilled Water Line and Faucet Notes and Cautions: Note: Always use food-grade tubing (as included with the kit) for plumbing distilled water. NEVER use copper, as it can leech into the distilled water. To hook-up the Distilled Water Line: 1. -
Page 12: Start-Up
Start-Up Notes and Cautions: CAUTION: Do not, under any circumstances, cut or remove the round grounding prong from the electrical plug. Note: Open the boiling tank lid and remove the wire tie restraining the fl oat. This is used to prevent damage during shipment. Note: This system must be fully grounded at all times. - Page 13 7. Plug power cord into the machine and plug the dis- tiller into the power supply. 8. Turn the main power switch ON. 9. Open the faucet for 15 to 20 seconds ensuring there is a steady stream of water, then close the faucet. Caution: Do not consume this solution.
-
Page 14: Maintenance And Cleaning
25. You now have approximately 20 gallons of water in the storage tank for consumption. Maintenance and Cleaning If operated in the recommended automatic drain mode, the Pure Water Mega 25 is designed for low maintenance performance. The Mega 25 has a built-in drain valve that fl... -
Page 15: Cleaning The Boiling Tank
Cleaning the Boiling Tank Notes and Cautions: Caution: Under no circumstances should the cleaning solution be heated and run through a distillation cycle. Note: If operating in the manual drain mode, you will need to drain the boiling tank once per week. Note: Failure to clean the interior can result in: a) Scale build-up causing premature heating element or drain valve failure. -
Page 16: Changing The Post Filter
Changing the Post Filter 1. Turn the main power switch to “Off” and open the auxiliary faucet at the sink to bleed the line of pressure. Close the faucet. 2. Have a bucket available to catch any excess water in the line. Remove the post fi lter by releasing the fi... -
Page 17: Troubleshooting
Troubleshooting The machine will not operate at all. Note: The water level in the storage tank must be below 7/8 full before the distiller can be restarted. • Make sure the power cord is plugged into the wall outlet and the outlet is working properly. - Page 18 The distiller fi lls to normal operating level, but the heating element will not heat or bring water to a boil. • If the reset is not popped or the fan is running and the boiling tank is full of water, you may have a defective heating element.
- Page 19 The boiling tank automatic drain valve does not open or shut. If water continues to drain during operation of the distiller, you may have a defec- • tive drain valve. Heavy scale may be preventing the drain valve from closing completely.
-
Page 20: Electrical Schematic
Electrical Schematic page 20 Mega 25 Owners Manual... -
Page 21: Exploded View
Exploded View Mega 25 Owners Manual page 21... -
Page 22: Parts List
Parts Listing Key # 120V P/N 240V P/N Description Key # 120V P/N 240V P/N Description 1 ..8009 ..... 8009 ..Lid knob w/stud 66 ..9510 ..... 9510 ..Compression nut, 3/8” 2 ..6022 ..... 6022 ..Lid o-ring 67* ..626 ....626 ..Condensing Coil Kit (#64-#66) 3 .. - Page 23 Mega 25 Owners Manual page 23...
- Page 24 Form #6325A, ©2010, Rev 2018 Pure & Secure LLC...
