S800
LUNA
CHASSIS
TEMPERED
RADIATOR
SUPPORT
GLASS
ALUMINIUM
3 X 120MM
FANS
DESIGN

Advertisement

loading
Need help?

Need help?

Do you have a question about the LUNA S800 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Svive LUNA S800

Summary of Contents for Svive LUNA S800

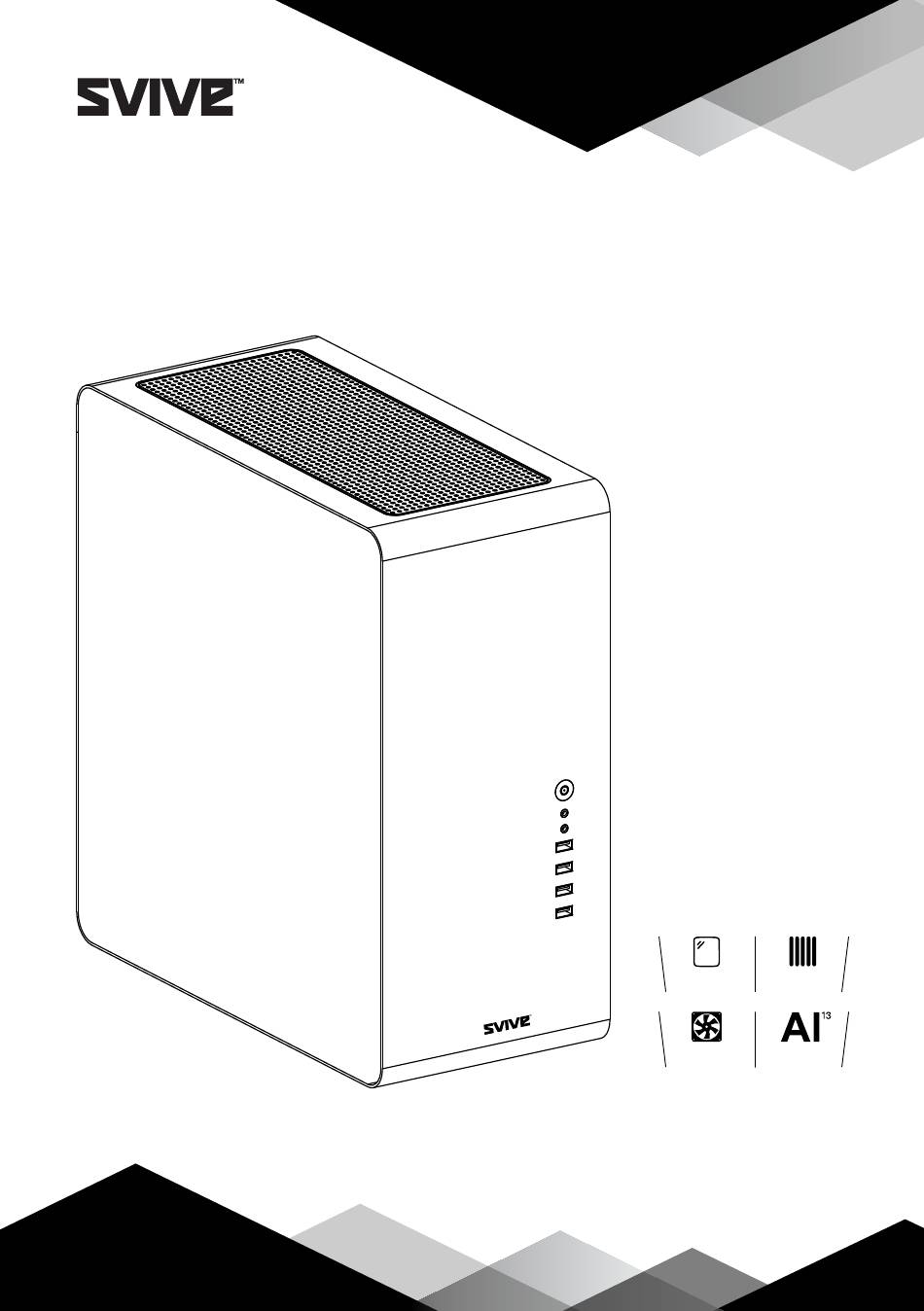

  • Page 1 S800 LUNA CHASSIS TEMPERED RADIATOR SUPPORT GLASS ALUMINIUM 3 X 120MM FANS DESIGN...

  • Page 3: Specifications

    SPECIFICATIONS • Dimension: 204mm (W) x 426mm (D) x 437mm (H) • Material: Body, built with 2.0mm aluminium magnesium alloy Internal structure, 1.0mm SGCC steel plate The side panel, made from 5mm tempered glass or 2mm aluminium plate • Motherboard: ATX, MATX, ITX •...
  • Page 4 INSTALLATION GUIDE Lay the case flat, unscrew 8 screws to remove the glass side panel. Push the top plate to take it out, then lock the PSU with screws. Install I/O plate, then install motherboard and fix with screws.
  • Page 5 INSTALLATION GUIDE Loosen the PCI cover, take out the PCI plate. Install display card (fixed with screw) Install shockproof HDD gaskets (fine thread screws for SSD, coarse thread screws for HDD)
  • Page 6 INSTALLATION GUIDE • Two 2.5 HDDs can be installed in left side. Two 2.5 HDDs and two 3.5 HDDs can be installed in the right side. Installing supported cooling system.
  • Page 7 INSTALLATION GUIDE How to install 240 water cooler on the bottom. Install the fan on the water cooler, then lock it with toolless screws from the bottom. Lay th case flat and install the glass side panel, assembly finished.
  • Page 8 Imported by Svive, Østre Kullerød 4, N-3241 Sandefjord, Norway Made in China www.svivelife.com...
