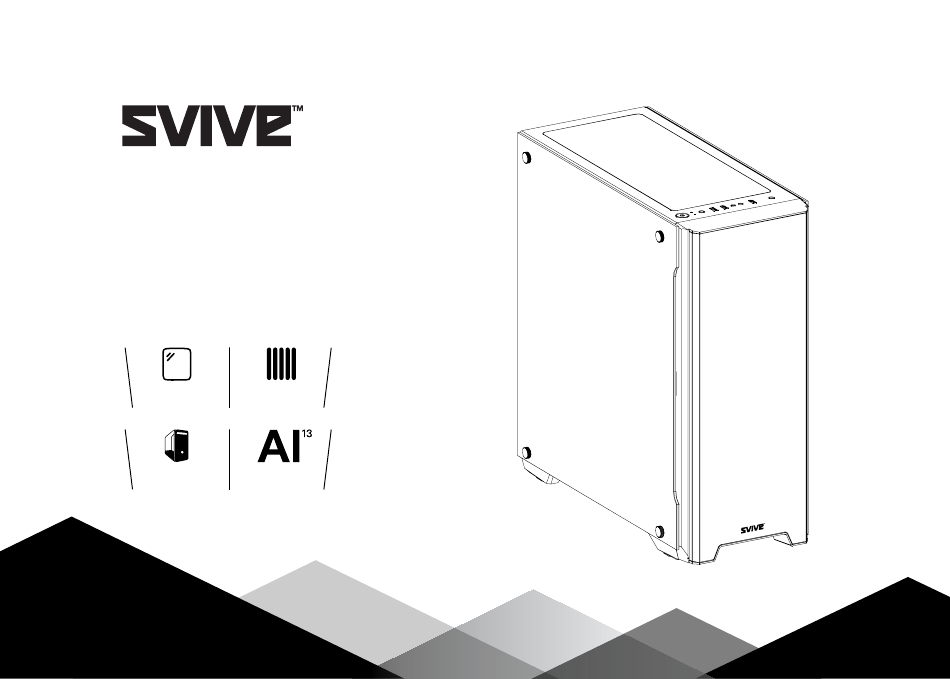

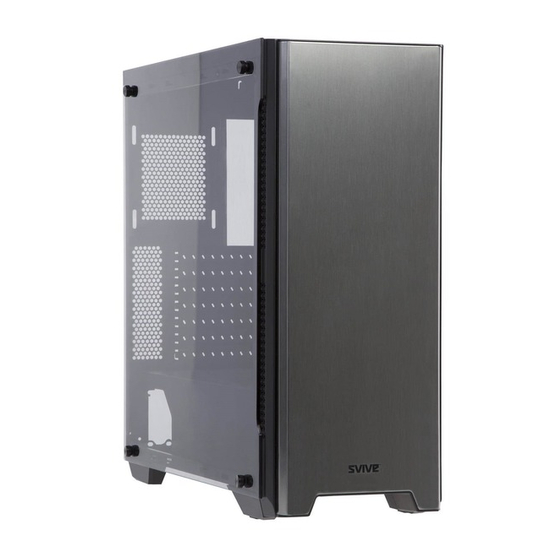

  • Page 1 S700 LUNA CHASSIS TEMPERED RADIATOR GLASS SUPPORT ALUMINIUM SHROUD DESIGN...

  • Page 2: Specifications

    SPECIFICATIONS PRODUCT HIGHLIGHTS • Chassis Size (DxWxH): 435x205x477mm • Steel front panel. • Motherboard Type: ATX Micro ATX • Top fan controller button. • Drive Bays: 2x3.5 HDD 2.5” SSD +1x2.5” SSD • Tempered glass side window offers • PCI Slots: 7 Slots a direct view of the inner system.
  • Page 3 REMOVE SIDE COVER 3.5” / 2.5” DEVICES INSTALLATION • Twist off four screws on the tempered glass side How to Install 3.5“ HDD panel then open the left panel. • Fix 3.5” HDD into the 3.5” converter bracket. • Remove the screws on the back of the case, •...

  • Page 4: Install Power Supply

    INSTALL POWER SUPPLY INSTALL MAINBOARD • Use 4 pcs 6x6 hexagon screw to fix the power • Lay down the case. supply. • Align the stand-off holes of the mainboard with the mainboard tray and screw in the stand-offs. • Make sure the holes on the mainboard and chassis line up properly before securing the screws.

  • Page 5: Remove The Front Panel

    INSTALL PCI REMOVE THE FRONT PANEL • Take off the PCI slot and insert the PCI device. • Pull the front panel then open it. Put back the PCI slot and fasten the screw. PCI slot 10*6 6*6 hexagon scew...
  • Page 6 INSTALL FAN • Connect top fan button with 3pin fan connector and 4PIN power connector with PSU. 360 Cooling System Top fan Dust cover Fan connector button Power 4PIN Fan 4PIN 360 Cooling System...

  • Page 7: Usb 2.0 Connector

    CABLE CONNECTION GUIDE USB2.0 connector USB3.0 connection HD Audio connection AUD_GND PORT1L PRESENCE# PORT1R SENSE1_RETURN PORT2R SENSE_SEND SENCE2_RETURN PORT2L AC’97 Audio connection AUD_GND MIC_BIAS ACCESSORY KIT FP_RET_R FP_OUT_R M3x4.5 screw, for M4x10x6 stand/o , mainboard and SSD FP_OUT_L FP_RET_L for mainboard Cabletie, for cable management 6x6 hexagon screw, BM6x5 screw,...
  • Page 8 Imported by Svive, Østre Kullerød 4, N-3241 Sandefjord, Norway Made in China www.svivelife.com...
