If you are installing the device for the first time, please read this manual in advance and configure it step by step. Reboot the device once you finish the
configuration is required, including change the network environments, account number and so on. If you need more info, please go to our website
(www.fiberme.com) and download the user manual.
Packaging list
1
Handset Cord

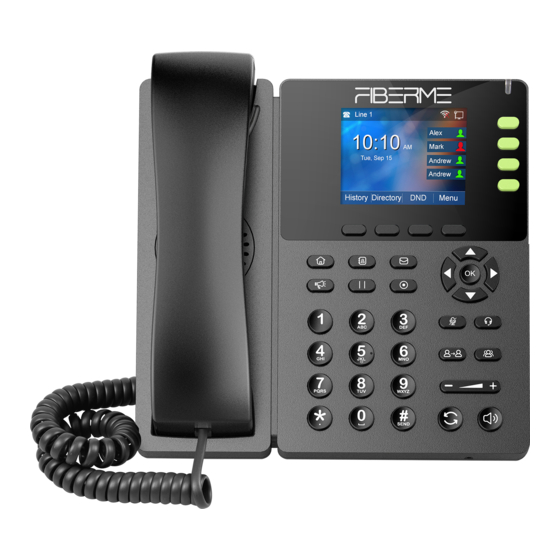

IP Phone
Handset
Stand
Ethernet Cable
Assembling the phone
2
2
Assembling the phone
Wall mount the phone
Fix two appropriate screws on
the wall. Leave 1/4 distance
from the wall. It allows you to
slide the mounting
Connect the stand
brackets on to the screws.
Connect the handset
If you are using an external power supply, please connect the power supply, and plug the power supply into the
DC 5V supply hub on the back of the phone. Note: Only the power supply from FIBERME is recommended.
3
Starting the phone
3
Starting the phone
After the phone is connected the power supply, it will start the intialization process automatically. After that, the LCD will display "FIBERME" logo and
then the phone will be ready to use.
DC5V
LAN
PC
Power Adapter
4
Configuring your phone
4.1 Network Settings
There are two ways to configure the network settings.
DHCP: By default, the phone attempts to contact a DHCP server in your network to obtain its valid network settings. e.g., IP address, subnet mask,
gateway address and DNS address.
Static IP Address: If the phone can't connect with DHCP server, please configure IP address, subnet mask, gateway address, primary
DNS address and secondary DNS address manually.
4.2 Accessing the web management
Step1. Connect the phone to the LAN via the Ethernet port of the phone, connect your PC to the PC port of the phone with Ethernet cable
Quick Installation Guide
Power Adapter
Step2.
Open web browser on your computer, enter the IP address (find the IP address by pressing Menu >My Status) into the address bar, and then press Enter key.
(Optional)
Step3. Enter the username (Default: admin) and password (Default: admin) in the login page and click Login.
1749 Old Meadow Rd. Suite 401 - McLean, VA 22102, USA
www.fiberme.com
4.3 Connect via wired network
Quick Installation Guide
Step1. Power on the phone.
Step2. Connect the LAN port of phone to the available network adapters (switches or routers) with Ethernet cable.
Step3. If there is DHCP server in network, you can find the IP address by pressing Menu >My Status.
4.4 Connect via Wi-Fi
Step1. Press Menu button, then choose Basic Settings >Wi-Fi via ▲ or ▼ button.
Step2. Choose "Available Network".
Step3. Use ▲ or ▼ button to select the network and press soft key "Con" to connect with it. Input the password if Wi-Fi authentication is required
Note: If AP is connected,
5
Registering your phone
5
Registering your phone
Input the device's IP address in the address bar of the browser. Then you can login SIP Account configure of the phone. Choose Enable on Line Enable,
input SIP Account parameters.
Configure information
Change "Line Enable" to "Enable" from the dropdown menu
In "Display Name" please write the name will be appear on the phone for this line
Note: If the phone does not show any above
information on the screen, please re-confirm
In the "Phone Number" field, please write the extension number.
installation steps and the connections.
In the "Account" field, please write the extension number
If it still doesn't work, please replug the phone.
If there still no display on screen, please
In "Password" field, please write the extension password
contact the administrator or service provider.
In "SIP Server IP" please add IPPBX IP Address
In "SIP Port" please change it if it's not a default SIP Port "5060"
will appear in the status bar on the main interface.
.
1749 Old Meadow Rd. Suite 401 - McLean, VA 22102, USA
www.fiberme.com
