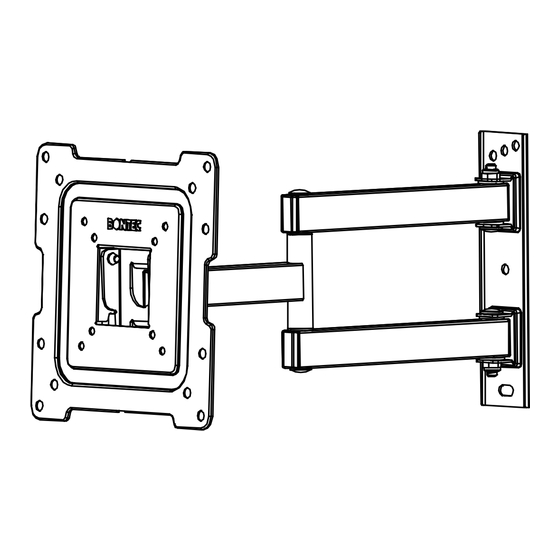

- Page 1 INSTALLATION MANUAL TV Wall Mount Model: CT128...
-
Page 2: Supplied Parts
Carefully open the carton, remove contents and lay out on cardboard or other protective surface to avoid damage. Check package contents against the Supplied Parts List in the next page to assure that all components were received undamaged. Do not use damaged or defective parts. - Page 3 M-A (x4) M-B(x4) M-C (x4) M4x12 M6x15 M8x20 M-D(x4) M-E (x4) M-F (x4) D6 Washers D8 Washers M-G (x1) M-H (x5) bubble level Cable tie W-A (x3) Before getting started, let's make sure this mount is perfect for you! 1. Is your TV VESA equal to/greater than 75x75mm and equal to/less than 200x200mm? MAX:200mm Yes --- Perfect!
- Page 4 2. What is your wall made of? 16" CAUTION: DO NOT install into drywall alone Perfect! Perfect! Drywall with Solid concrete wall? wood studs? Step 1 lnstall VESA Plate to the back of TV Manual Only! For Flat screen TV M-A/M-B 2.1 M-A/M-B/M-C 2.2 M-D/M-E/M-F...
- Page 5 For Curved TV Step 2 Mounting the Wall Plate to the Wall Brick or Concrete Wall...
- Page 6 70mm 60mm 10mm...
- Page 7 Wood Studs Wall 70mm...
- Page 9 Step 3 Lift and hang TV with brackets onto wall bracket.
- Page 10 +5° -15°...
- Page 11 Step 4 Product dimensions: 200mm 100mm 75mm 406mm +5° -15° 55mm...
