Installation Instruction
Carefully open the carton, remove contents and lay out on cardboard or other protective
surface to avoid damage.
Check package contents against the Supplied Parts List in the next page to assure that all
components were received undamaged. Do not use damaged or defective parts.
Carefully read all instructions before attempting installation.
IMPORTANT SAFETY INFORMATION
Install and operate this device with care. Please read this instruction before installation, and
carefully follow all instructions contained herein. Use proper safety equipment during installa-
tion.
Please call a quali ed installation contractor for help if you don't understand these directions or
have any doubts about the safety of the installation.
Do not use this product for any purpose or in any con guration not explicitly speci ed in this
instruction. We hereby disclaims any and all liability for injury or damage arising from incorrect
assembly, incorrect mounting, or incorrect use of this product.
UNPACKING INSTRUCTIONS

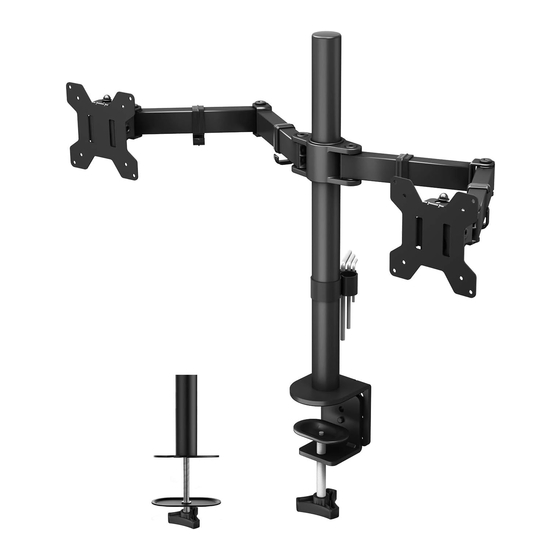

MDM 002
1
English
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for BONTEC MDM 002
Summary of Contents for BONTEC MDM 002
- Page 1 English Installation Instruction MDM 002 UNPACKING INSTRUCTIONS Carefully open the carton, remove contents and lay out on cardboard or other protective surface to avoid damage. Check package contents against the Supplied Parts List in the next page to assure that all components were received undamaged.
- Page 2 Supplied Parts List (1)Pole-a (1)“C” Clamp-b (1)“C” Clamp Brace-c (1)Swivel Arm-d (2)VESA Plate-e (3)M5x14 Bolt-f (2)M8x12 Bolt-g (2)Nut-h (1)Grommet Base (1)Support Plate-i (1)M10 Washer-j (1)Spring Washer-k Plate-l (8)M4x12 (1)Wire Clip-m1 (4)Wire Clip-m2 (1)Allen Key-n Thumb Bolt-o (8)M4x30 Bolt-p (8)M4 Spacer-q (1)Soft Pad-r1 (1)Soft Pad-r2...
- Page 3 Step 1 Install the Pole to the Desktop Option A: Desk Clamp Install 1.Install the “C” Clamp Brace(c) to the Pole (a) using 3pcs M5x14 Bolts(f), and tighten using the Allen Key(n),see Figure 2. Attach Soft Pad(r1) to the “C” Clamp Brace(c), see Figure 2.
- Page 4 Step 1 Install the Pole to the Desktop Option C: Grommet Base Install Self Drilled Grommet Hole Installation 1.Position the Pole(a) on the mounting surface and mark the center hole. Drill a 3/8" (10mm) diameter hole at the marked position through the mounting surface.
- Page 5 Step 3 Attach the VESA Plate to the Monitor For Monitor with Flat Back For Monitor with Curved or Recessed Back Step 4 Slide the Monitor onto the Head of Swivel Arm Slide the monitor onto the head of Install the security Nut(h). Make sure the Swivel Arm(d) as shown in the above security nut is installed before you rotate diagram.
- Page 6 Step 5 Make the Necessary Adjustments Ignore this step if Fix the tilt angle monitors are level Tighten the bolt with the supplied Allen If one monitor is lower, remove the Nut(h) Key(n) to fix the tilt angle. and turn the bolt counter-clockwise with supplied Allen key(n) to raise the monitor.
