Summary of Contents for BONTEC ST-12

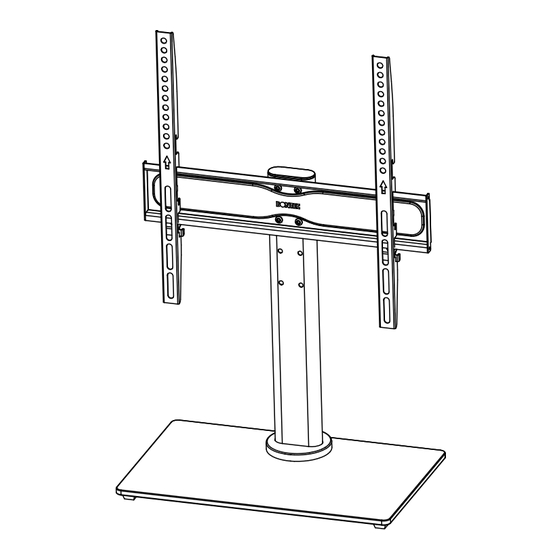

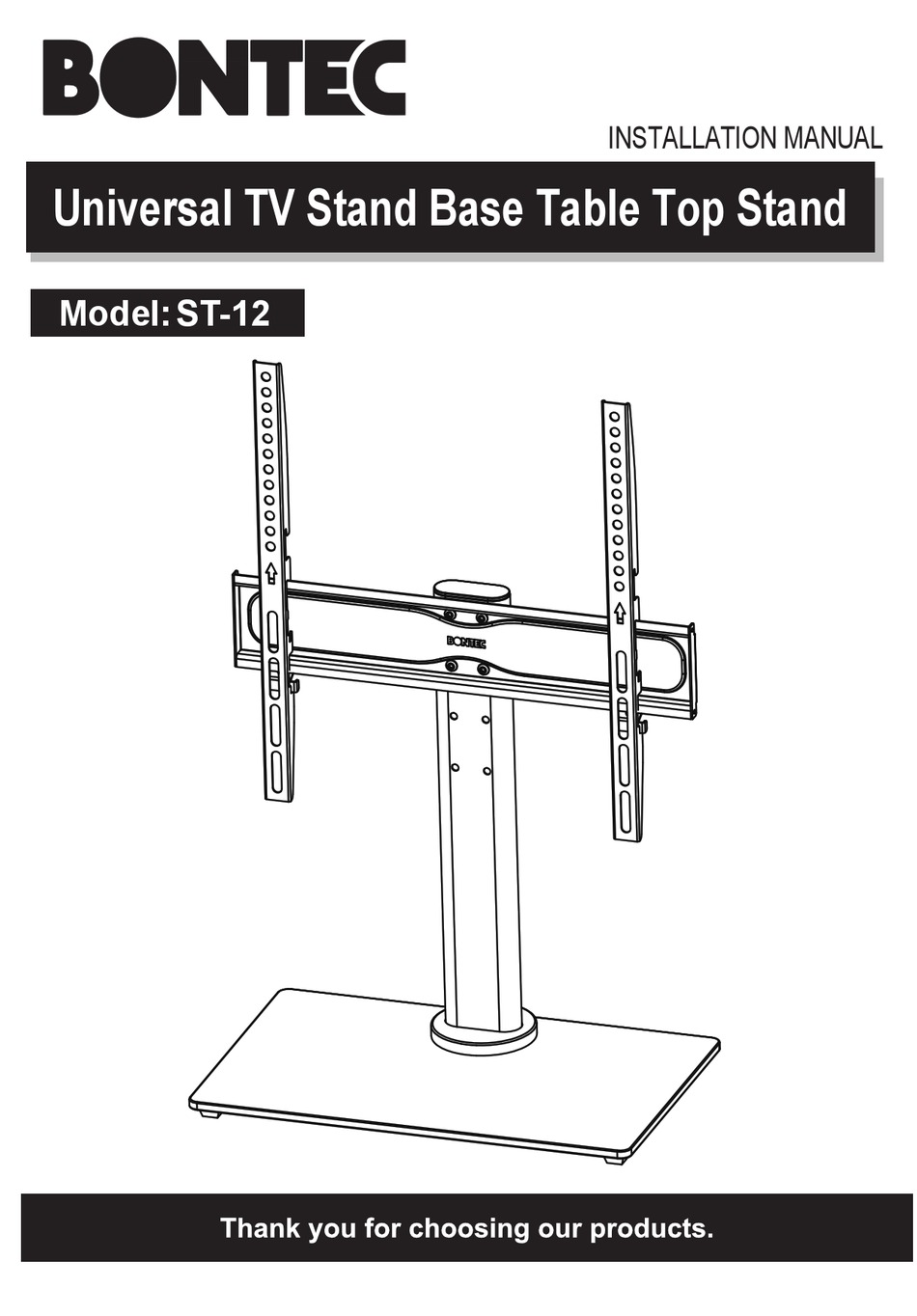

- Page 1 INSTALLATION MANUAL Model: ST-12...
-
Page 2: Supplied Parts
Carefully open the carton, remove contents and lay out on cardboard or other protective surface to avoid damage. Check package contents against the Supplied Parts List in the next page to assure that all components were received undamaged. Do not use damaged or defective parts. - Page 3 Rubber Foot M6x20 Bolt M6x16 Bolt D6 Metal Washer D6 Plastic gasket A (X4) B (X2) C (X3) D (X7) E (X3) M6x40 Bolt Wire Clip Safety Lock 4mm Allen Key F (X4) G (X4) H (X2) I (X2) J-1 (X1) J-2 (X1) ...
- Page 4 Back side The support pillar needs to be maintained at a 45° angle with the edge of the glass for the screw holes to be aligned ✓ ✕ 90° correct incorrect Insert the part along the direction of the arrow (make sure the direction of the arrow is perpendicular to the tempered glass to find the positions of the corresponding screw holes.
-
Page 5: Adjust The Angle
Adjust the angle. Grasp the Support Pillar with both hands and rotate it by 45° following the direction of the arrow. - Page 6 2 Height Adjustable Please fix the nut G with wrench J-2 while J-1 screwing bolt F. ...
- Page 7 First of all, make sure the diameter of the Bolt(M-A to M-E) your TV requires. Once you have determined the correct diameter,please see the diagram as below. You will thread the Bolt into the TV using the correct Washer(M-H), and using the spacer(M-G,W-F) if necessary.
- Page 8 ...
- Page 9 ...
- Page 10 ...
