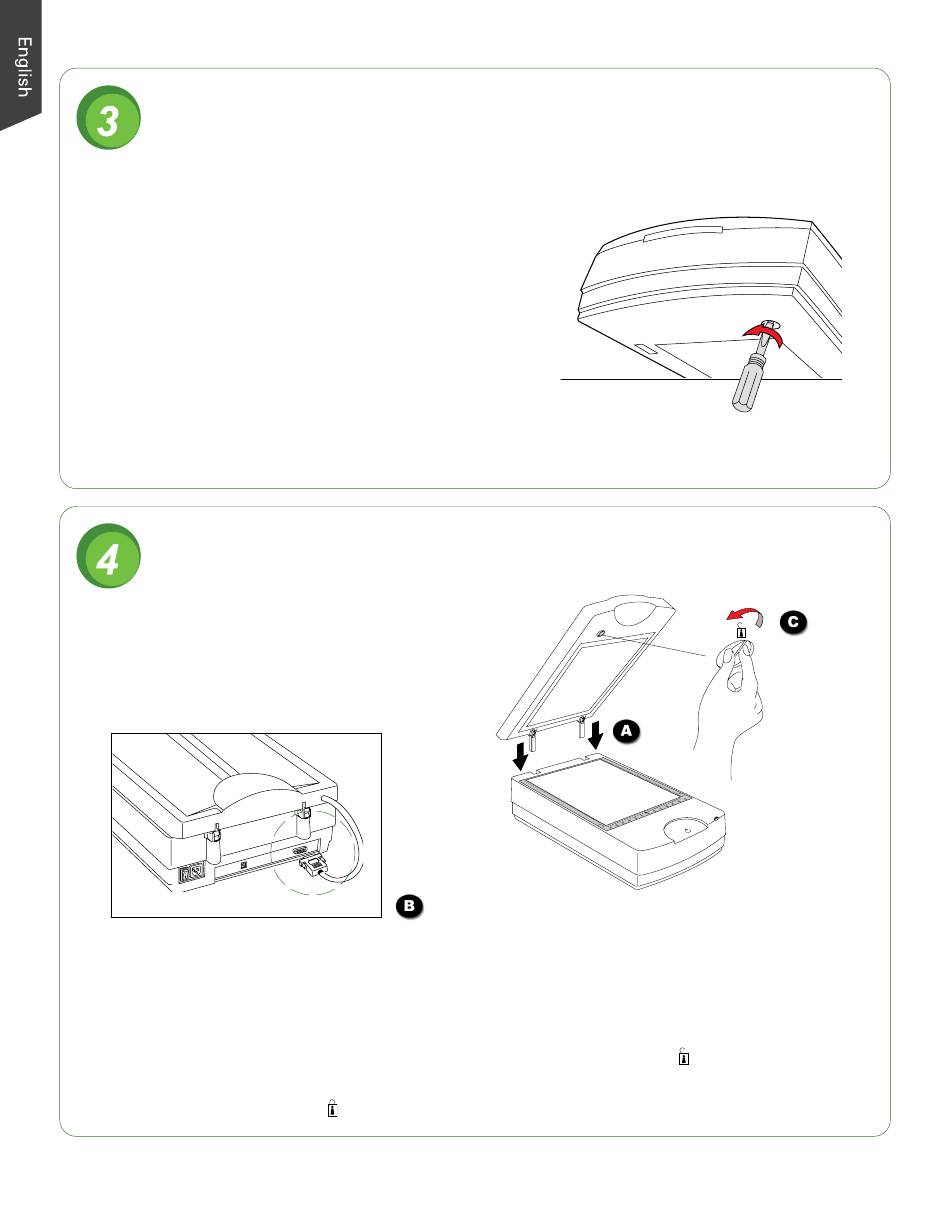

Unlock Digitizer
A. Remove the yellow "Unlock" sticker from your digitizer.
B. With the digitizer power off, turn the digitizer on its
side and locate the locking screw at the bottom of
the digitizer.
C. Using a screwdriver, push and turn the locking screw
counterclockwise to the unlock position.
When successfully unlocked, the screw will push out
a little, protruding slightly from the bottom of the
digitizer.
NOTE: To lock the digitizer (for shipping and other purposes),
push and turn the locking screw clockwise to the locked position.
Install TMA
A. Attach the TMA by sliding the posts at the
rear of the TMA into the holes.
B. Plug the connector of the TMA into the
digitizer's 15-pin accessory port.
C. Unlock the TMA.
1) Remove the yellow "Unlock" sticker from the TMA.
2) Look for the locking knob at the base of the TMA.
3) Turn the locking knob counterclockwise to the unlock position " ".
NOTE: To lock the TMA (for shipping and other purposes), turn the locking knob
clockwise to the lock position " ".
2
Unlocked
Unlocked
