Summary of Contents for nfortec SCULPTOR

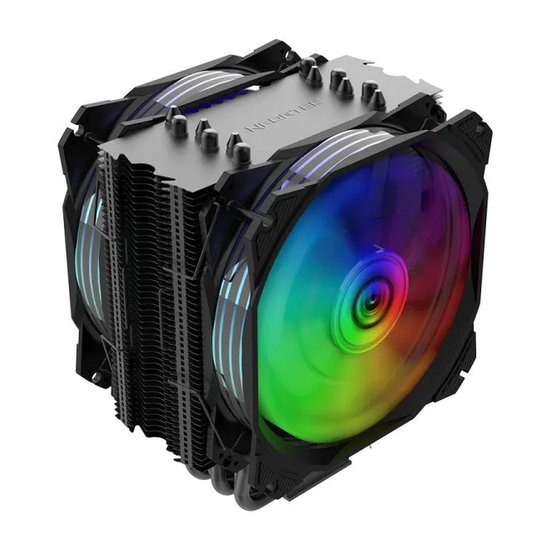

- Page 1 S C U L P T O R RGB CP U C O O LER DI SI PAD OR P OR A IRE PA R A C P U RG B INSTRUCTIONS MANUAL MANUAL DE INSTRUCCIONES...
- Page 2 TECHNICAL SPECIFICATIONS ESPECIFICACIONES TÉCNICAS 25mm 120mm 154mm 106mm 123mm...
- Page 3 ACCESORY BAG ACCESORIOS PARA INSTALACION...
- Page 4 BASIC INSTALLATION INSTALACIÓN BÁSICA INSTALLATION AMD AM4/AM5/AM3(+)/AM2(+)/FM2/FM1 INSTALACIÓN...
- Page 5 BASIC INSTALLATION INSTALACIÓN BÁSICA INSTALLATION Intel LGA 775/1366/115X/1200/1700 INSTALACIÓN...
- Page 6 BASIC INSTALLATION INSTALACIÓN BÁSICA WIRE INSTALLATION AND LIGHTING INSTALACIÓN DEL CABLEADO E ILUMINACIÓN 12v 4pin PWM power connector Conector de alimentación 12v 4pin PWM 5v 3pin A-RGB connector Conector de 5v 3pin A-RGB 5v 3pin A-RGB bridge connector Conector puente de 5v 3pin A-RGB...
- Page 7 BASIC INSTALLATION INSTALACIÓN BÁSICA WIRE INSTALLATION AND LIGHTING INSTALACIÓN DEL CABLEADO E ILUMINACIÓN Connect A to CPU_FAN or SYS_FAN pinheader on the motherboard Conecta “A” al conector CPU_FAN o SYS_FAN en la placa base Connect C to the 5v 3pin pinheader on the motherboard or controllerhub Conecta “C”...
- Page 8 S C U L P T O R RG B CP U C O O LE R D I S IPA D O R P OR A I RE PA R A C P U RGB...
