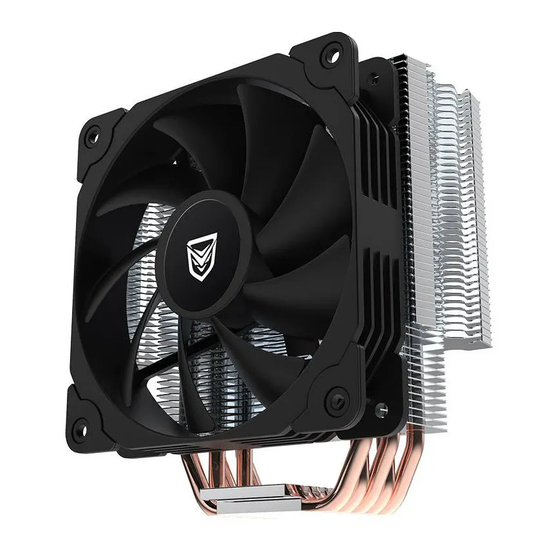

- Page 1 V E L A X CP U A I R C O O LE R INSTRUCTIONS MANUAL MANUAL DE INSTRUCCIONES...
-
Page 2: Technical Specifications
12v power 4pin (PWM) Conectores 12v power 4pin (PWM) Heatsink material Aluminium, Copper Material disipador Aluminio, Cobre 1x Vela X 1x Vela X Parts 1x Installation set for Intel/AMD Contenido 1x Set de instalación para Intel/AMD with thermal paste included con pasta térmica incluída... - Page 3 ACCESORY BAG ACCESORIOS PARA INSTALACION INTEL Bracket AMD Bracket Soporte para Intel Soporte para AMD Bracket Screw Tornillos de soporte Intel/AMD Back Plate Placa de instalación trasera. Thermal Grease Pasta térmica...
- Page 4 BASIC INSTALLATION INSTALACIÓN BÁSICA INSTALLATION Intel INSTALACIÓN LGA 775/115X/1366/2011/1200 Remove the fan before installing the Install the bracket mount on the cooler Apply the termal paste on the CPU and cooler by opening those 2 buckles. base and fasten with the 4 screws. remove the safety sticker on the cooler Retira primeramente el ventilador antes Instala el soporte de la placa base...
- Page 5 BASIC INSTALLATION INSTALACIÓN BÁSICA INSTALLATION Intel INSTALACIÓN LGA 775/115X/1366/2011/1200 Place the cooler on the CPU and fasten it to the backplate tight. Coloca el disipador en el procesador alineando con la placa trasera y asegúralo con fuerza. Install the fan Install the fan on the heatsink and connect it to the motherboard.
- Page 6 BASIC INSTALLATION INSTALACIÓN BÁSICA INSTALLATION INSTALACIÓN AM4/AM3+/AM3/AM2+/AM2 Remove the fan before installing the cooler by opening Install the bracket mount on the cooler base and fasten with those 2 buckles. the 4 screws. Retira primeramente el ventilador antes de realizar la Instala el soporte de la placa base en el disipador y aseguralo instalación tirando de las dos pestañas señaladas con los 4 tornillos...
- Page 7 BASIC INSTALLATION INSTALACIÓN BÁSICA INSTALLATION INSTALACIÓN AM4/AM3+/AM3/AM2+/AM2 Apply the termal paste on the CPU and Move the screw on the bracket and slide also on the remove the safety sticker on the cooler backplate to the corresponding position with the proper socket motherboard.
- Page 8 V E L A X CP U A I R C O O LE R...
