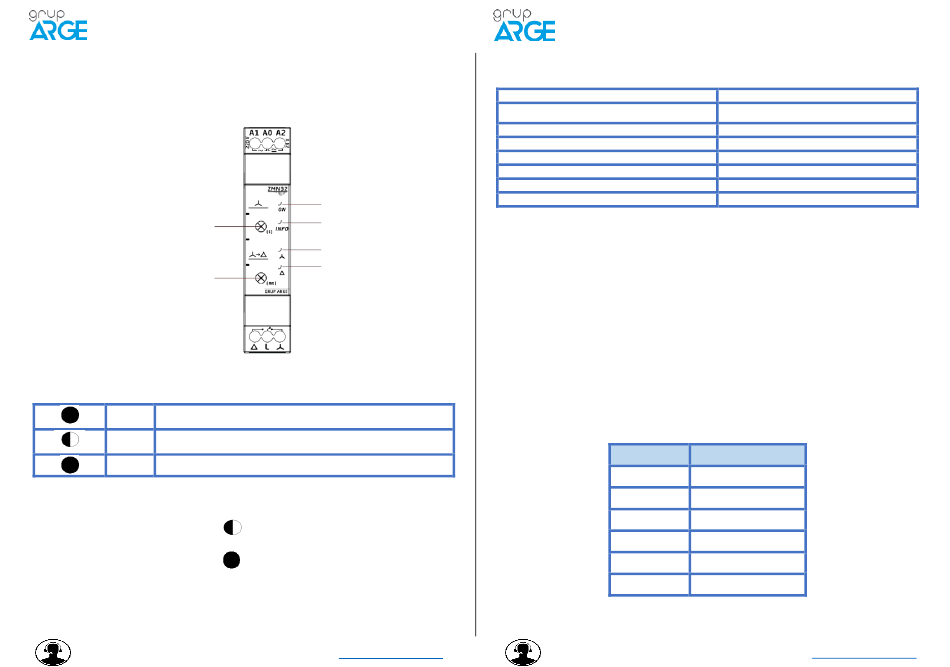

TIME RELAYS (ZMN32) USER MANUAL
LED Descriptions:
For ZMN32:
Pulled Time of Relay λ (s)
between the transition from λ to
Δ Wait Time (ms)
LED Descriptions:
It indicates that energy is present. It also lights up when the
ON
potentiometer changes.
When the potentiometer is adjusted, if the time value is set correctly,
INFO
it lights up, if it remains in the unstable area, it turns off.
λ / Δ It lights up when the relay is pulled and turns off when it is not pulled.
*
*
TECHNICAL SUPPORT :+90 549 823 91 90
Supply LED
Time Setting Help LED
λ Relay Pulled LED
Δ Relay Pulled LED
Table:1
Flasher
Lighting
www.gruparge.com
TIME RELAYS (ZMN32) USER MANUAL
Technical Features:
Operating Frequency
Time Range
Relay Output
Adjustment Type
Indicator
Ambient Temperature
Protection Class
Connection
Use of the Device:
ZMN32 Time Relay;
Upon energizing the device, the star relay pulls and the star LED lights up. It remains in this position for the set
0.1-60s Star Tone time. At the end of the time, the star relay releases and the star LED turns off. It starts
counting the set time for the transition from star to triangle in the set range of 20-600ms. During this time both
relays are released. At the end of the time, the Triangle relay pulls and the triangle LED turns on. The triangle
relay remains pulled until the power is cut off. Times set with potentiometers can be affected by change until
the relay controlled by the set time changes state. After changing the relay position, it is not affected by the
time change.
ZMN32 models have info LED feature. The info LED helps to set the time. IF the potentiometer that sets the star
to triangle transition time is in the critical area when the power is first energized, the info LED will turn on and
off until this potentiometer changes. When there is a change in the potentiometer, if the set potentiometer
value is not in the critical area, the LED turns on, if it is in the critical area, the LED turns off.
Product Feature
Time Range
Star-Triangle
Contact Output
24 V AC/DC
220 V AC
DIN I Box
TECHNICAL SUPPORT :+90 549 823 91 90
1
50 / 60 Hz.
Y-U:20-600ms Y:0.1-60s
2N/O, 5A, 1250 VA
Potentiometer
4 pieces LED
-5ᵒC ; +50ᵒC
IP20
DIN rail mounting
Table:2
ZMN32
Y-U:20-600ms Y:0.1-60s
√
2N/O, 5A, 1250 VA
√
√
√
Table:3
