Summary of Contents for GRUP ARGE Zmn41

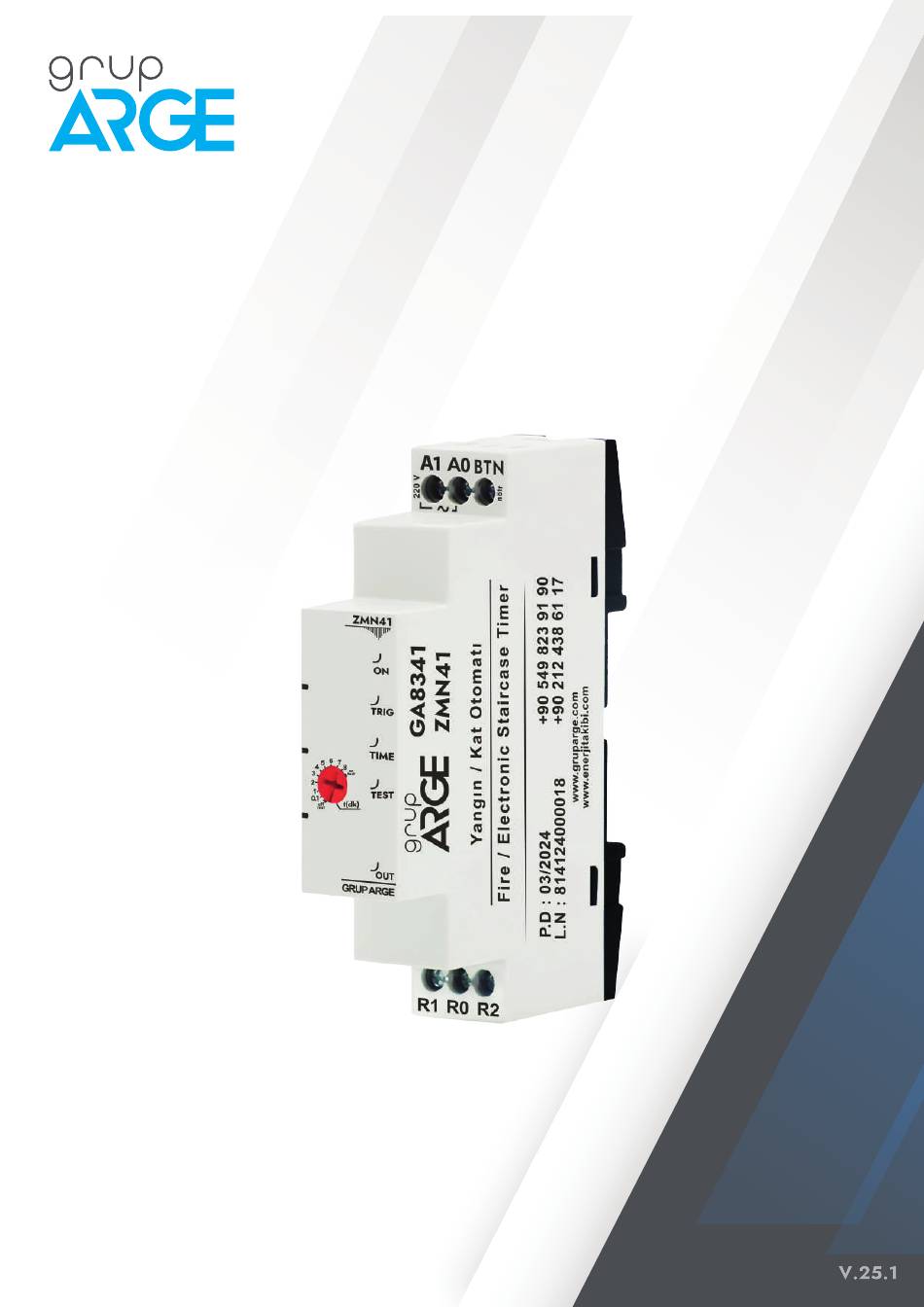

- Page 1 Time Relays (Zmn41) User Manual ADDRESS: Ikitelli OSB Mah. Cevre 14. Blok So k. Telas Blok Dis Kapi No: 1 Kat: 1-2 Basaksehir/Istanbul Phone: +90 212 438 80 24 Fax: +90 212 438 80 25 info@gruparge.com...
-
Page 2: Table Of Contents
CONTENTS PROPER USE AND SAFETY REQUIREMENTS ..........1. INTRODUCTION ....................1.1. General Features ................... 1.2. Technical Features ..................1.3. LED Descriptions ..................1.4. LED Warnings ....................1.5. Use of the Device ..................1.6. Function Diagram ..................1.7. Technical Drawing ..................1.8. -
Page 3: Proper Use And Safety Requirements
PROPER USE AND SAFETY REQUIREMENTS Cut all the power when connecting and disconnecting the device to a panel. Do not clean the device with a solvent or similar material. Only use a dry cloth. Please do not intervene to the device when a technical problem is encountered and get in contact with a technical service within the shortest time. -
Page 4: Introduction
1. INTRODUCTION 1.1. General Features Electronic time relays are microprocessor-based control devices used in time-criti- cal processes. These devices are specially designed to activate or deactivate a circuit or a system within the set time and function. This relay group, which is gen- erally used in the control panels of power circuits, can basically control the system by changing the relay positions with or without delay. -
Page 5: Led Descriptions
1.3. LED Descriptions ZMN41 Supply LED Trigger LED TRIG Time Counting LED TIME Time Adjustment and Floor Automat Test Mode LED TEST Mode Select Trimpode t (dk) Relay Output Information LED 1.4. LED Warnings Table:1... -
Page 6: Use Of The Device
1.5. Use of the Device ZMN41 Time Relay; The floor automat device can be used in fire alarm systems and floor lighting systems. Grup Arge floor automat device has an adjustable time interval between 0.1 seconds - 8 minutes. There are 5 information LEDs on the device. -
Page 7: Technical Drawing
Off Test Mode: Source Voltage Relay Voltage Trigger Signal On Test Mode: Source Voltage Relay Voltage Trigger Signal 1.7. Technical Drawing 18,75 mm... -
Page 8: Product Assembly And Disassembly
1.8. Product Assembly and Disassembly PUT ON PULL REMOVE HOLD 1.9. Connection Diagram (180-280 V AC/DC)
