GRUP ARGE SIVI01 User Manual

Classic liquid level relay
Hide thumbs

Advertisement

Quick Links

Download this manual

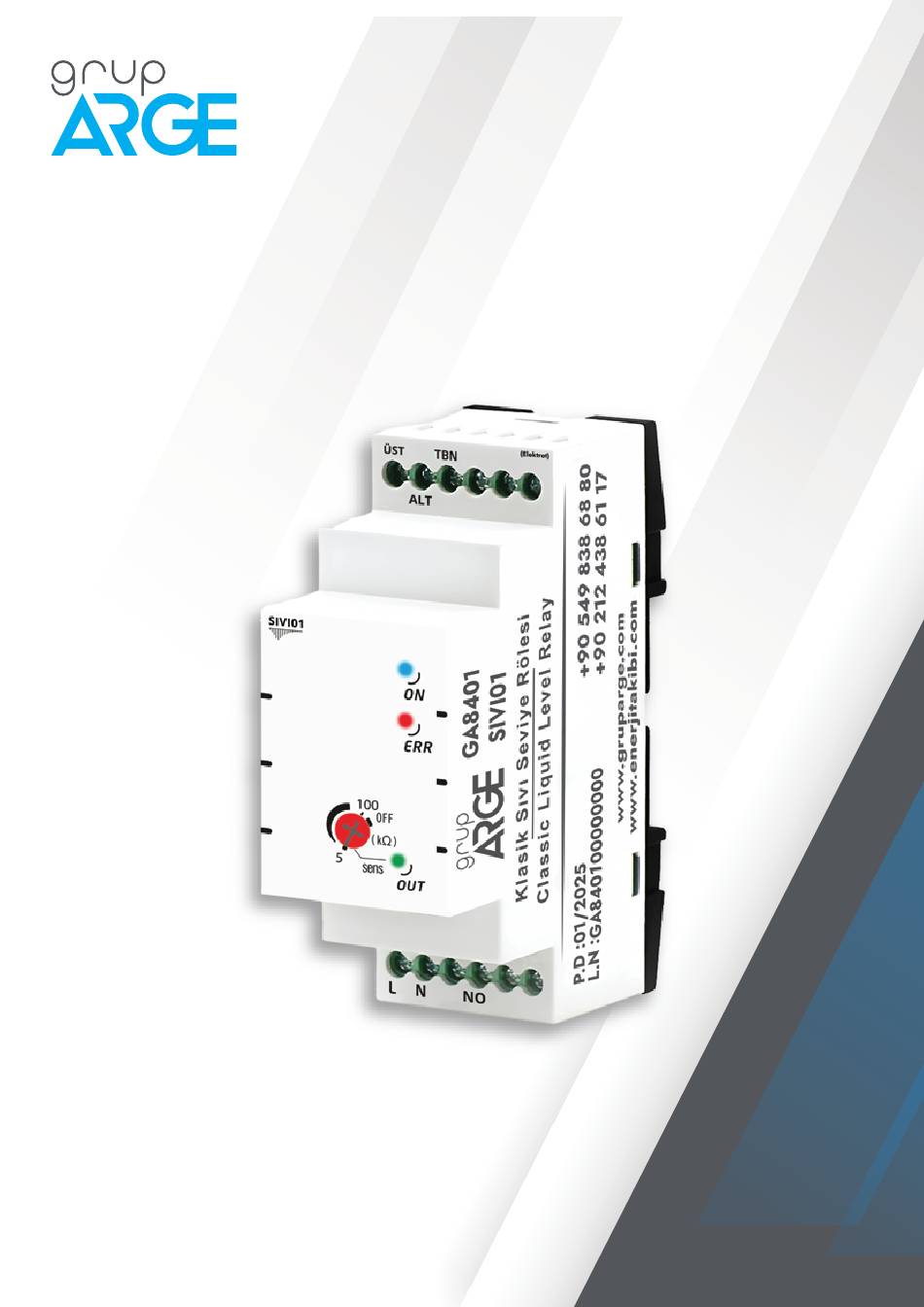

SIVI01
Classic Liquid Level Relay
User Manual
ADDRESS: Ikitelli OSB Mah. Cevre 14.
ADRES: İkitelli OSB Mah. Çevre 14.
Blok Sok. Telas Blok Dis Kapi No: 1
Kat: 1-2 Basaksehir/Istanbul
Kat: 1-2 Ba ak ehir/İstanbul
Phone: +90 212 438 80 24
Fax: +90 212 438 80 25
info@gruparge.com
V.25.1

Advertisement

loading
Need help?

Need help?

Do you have a question about the SIVI01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GRUP ARGE SIVI01

Summary of Contents for GRUP ARGE SIVI01

  • Page 1 SIVI01 Classic Liquid Level Relay User Manual ADDRESS: Ikitelli OSB Mah. Cevre 14. ADRES: İkitelli OSB Mah. Çevre 14. Blok Sok. Telas Blok Dis Kapi No: 1 Kat: 1-2 Basaksehir/Istanbul Kat: 1-2 Ba ak ehir/İstanbul Phone: +90 212 438 80 24 Fax: +90 212 438 80 25 info@gruparge.com...

  • Page 2: Table Of Contents

    CONTENTS PROPER USE and SAFETY REQUIREMENTS ............3 1. INTRODUCTION...................... 4 1.1. General Features ....................4 1.2. Usage and Operation Principle ................4 1.3. Installation ......................4 1.4. Technical Features ....................5 1.5. Technical Drawing ....................5 1.6. Connection Diagram .................... 6...

  • Page 3: Proper Use And Safety Requirements

    PROPER USE and SAFETY REQUIREMENTS Cut all the power when connecting and disconnecting the device to a panel. Do not clean the device with a solvent or similar material. Only use a dry cloth. Please do not intervene to the device when a technical problem is encountered and get in contact with a technical service within the shortest time.

  • Page 4: Introduction

    (ALT), the relay will release. (This will prevent damage to the water motor by running with an empty tank). SIVI01 waits for the water tank to refill and when the conductive liquid level reaches the upper electrode, the relay will pull again.

  • Page 5: Technical Features

    • Mounting : DIN Rail • Sensitivity Adjustment : Adjustable • Output Contacts : NO – 5A@250V AC between 5-100 kΩ NC – 2A@250V AC 1.5. Technical Drawing 65,59 mm (Electrode) ÜST 44,87 mm SIVI01 ( kΩ ) sens (Output) 34 mm...

  • Page 6: Connection Diagram

    1.6. Connection Diagram (Electrode) ÜST SIVI01 Upper Electrode Low Electrode Bottom Electrode ( kΩ ) TANK sens (Output) Connection Diagram for Filling the Tank (Electrode) ÜST SIVI01 Upper Electrode Low Electrode Bottom Electrode ( kΩ ) TANK sens (Output) Connection Diagram for Draining the Tank...
