Samsung IER,IER-F, IFR ,IFR-F (IE/IF015/20/25/40R/R-F) - Displays Simple User Guide

Checking the Components

  1. Simple User Guide
  2. Warranty card (Not available in some locations)
  3. Regulatory guide
  4. Power cord
  5. Power extension cable
  6. OCM cable
  7. COVER PCB(TOP/BOTTOM) x 7 / Screw (M4 x L10) x 7 (Supported models: IER, IFR)
  8. COVER PCB(TOP/BOTTOM) x 4 / Screw (M4 x L10) x 13 (Supported models: IER-F, IFR-F)
  9. STUD PEM x 2 (Supported models: IER, IFR)
  10. PET tape
  11. COVER PCB(SIDE) x 6 (Supported models: IER-F, IFR-F)
  12. BRACKET ALIGN (Supported models: IER-F, IFR-F)
  13. BRACKET LINK x 2 (Supported models: IER-F, IFR-F) Contact the vendor where you purchased the product if any components are missing. Components may differ in different locations.

Connecting the Power Cable

  • Connect the power cable after all cables are connected.
  • Before connecting external devices, be sure to disconnect the power cable.

Precautions when connecting power

  • In case of powering IER(IFR) and IER-F(IFR-F) together, adjust cabinet number so that total Power consumption is under 600W for 110V, 1000W for 220V.
  • Exceeding the recommended maximum number of devices may produce overvoltage, causing the circuit breaker to trip down or the product to be damaged. Make sure that the number of connected devices does not exceed the recommended maximum number.
  • Samsung is not liable for any problems incurred by connecting devices that exceed the recommended maximum number.
  • The label info which is attached behind product shows rated power of cabinet and rated current of outlet.

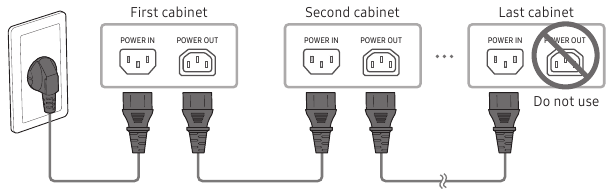

  • Transfer power by daisy chain with extension power cable.
  • Do not use POWER OUT socket of last Cabinet.
    Connecting the Power Cable

Installing the cabinets

  • Make sure you entrust the installation to a professional installation service provider. For further information regarding installation, contact the dealer you purchased the product from.
  • Install the cabinet using the frame kit provided by the manufacturer. For more information about how to install the frame kit, refer to the user manual that comes with it.
  • Samsung shall not be liable for any damage to the product and any injury to the users or others that may be incurred while the users install the product by themselves.

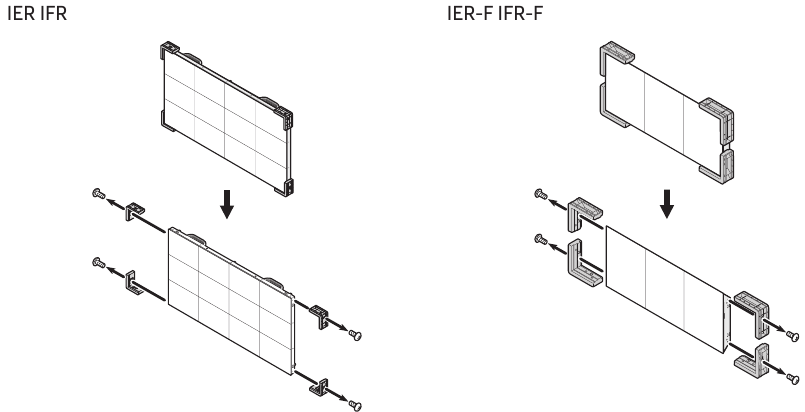

Removing the protective brackets
Remove the safety bracket before proceeding to installation.
Installing the cabinets

Troubleshooting Guide

Issues Solutions

The screen keeps switching on and off.

Check that the cable between the product and the PC is connected correctly.

No Signal is displayed on the screen.

Check that the product is connected correctly with a cable.
Check that the source device connected to the product is powered on.

No Video is displayed cabinet by cabinet.

Check the cable connections between S-Box and Cabinet / Cabinet and Cabinet.

Not Optimum Mode is displayed.

This message is displayed when a signal from the graphics card exceeds the product's maximum resolution and frequency.
Refer to the Standard Signal Mode Table and set the maximum resolution and frequency according to the product specifications.

Specifications

Model Name IE015R IF015R IE015R-F IF015R-F IE020R IF020R IE020R-F IF020R-F
Cabinet Refresh rate 3840Hz 3840Hz 3240Hz 3840Hz 3240Hz
Pixel Pitch 1.5 mm 2.0 mm
LED pixel configuration 3 in 1 (RGB)
LED pixel size (W x H) 1.0 mm x 1.0 mm 1.5 mm x 1.5 mm
Pixels (Row x Column) 640 x 360 pixels 160 x 360 pixels 480 x 270 pixels 120 x 270 pixels
Aspect ratio (W:H) 16:9 4:9 16:9 4:9
Model Name IE025R IF025R IE025R-F IF025R-F IE040R IF040R IE040R-F IF040R-F
Cabinet Refresh rate 3840Hz 3240Hz 3840Hz 3240Hz 3840Hz 3240Hz 3840Hz 3240Hz
Pixel Pitch 2.5 mm 4.0 mm
LED pixel configuration 3 in 1 (RGB)
LED pixel size (W x H) 2.1 mm x 2.1 mm
Pixels (Row x Column) 384 x 216 pixels 96 x 216 pixels 240 x 135 pixels 60 x 135 pixels
Aspect ratio (W:H) 16:9 4:9 16:9 4:9
Synchronization Video Frame rate 50/60Hz
Power Supply

AC100-240V~ 50/60Hz

Refer to the label at the back of the product as the standard voltage can vary in different countries.

Environmental considerations Operating Temperature: 0°C – 40°C (32°F – 104°F) Humidity: 10% – 80%, non-condensing
Storage Temperature: -20°C – 45°C (-4°F – 113°F) Humidity: 5% – 95%, non-condensing
  • This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.
  • For information on Samsung's environmental commitments and product-specific regulatory obligations, e.g. REACH, WEEE, Batteries, visit http://www.samsung.com/uk/aboutsamsung/samsungelectronics/corporatecitizenship/data_corner.html
  • For detailed device specifications, visit the Samsung website.
  • Use a cable of CAT 6 (*STP type) or higher.
  • Open Source Announcement
    To send inquiries and requests for questions regarding open sources, contact Samsung via Email (oss.request@ samsung.com).

Precautions when handling the cabinets

  • Metal objects may adhere to the front surface of the cabinet due to its magnetism.
  • If any metal object adheres, use a magnet or airgun to remove it. Be careful when removing metal objects using a magnet, as the magnet may separate the module from the cabinet.
  • Be careful when holding magnetic stripe cards close, as the magnetism may affect those cards.

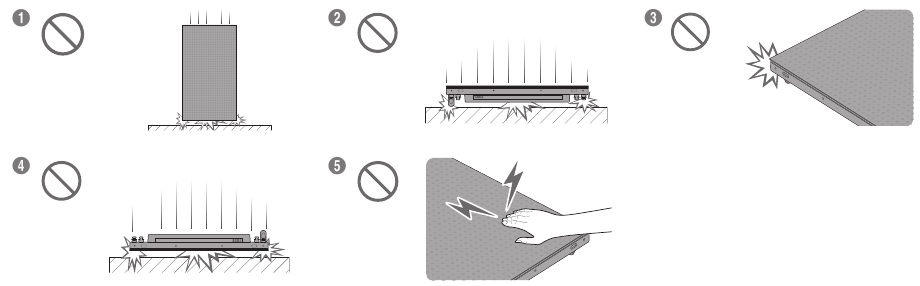

  1. [Caution to prevent external shock and dropping of the product]
    After removing the protective brackets, be careful not to expose the product to external shocks or vibrations. Make sure that the product is not dropped from any height.
  2. [Caution to prevent damage to the LED]
    Be careful not to expose the product to vibrations or external shocks when it is lying flat on the floor.
  3. [Caution to prevent damage to corners]
    Take extra care to ensure that the corners of a cabinet do not get damaged.
  4. [Caution to prevent damage to the LED]
    After removing the protective brackets, do not place the product on the floor with the LED facing down.
  5. [Caution to prevent damage to the LED from static]
    Do not touch the product without anti-static gloves.
  • Be sure to wear anti-static gloves when touching the product.
