Summary of Contents for Dali S24X Series

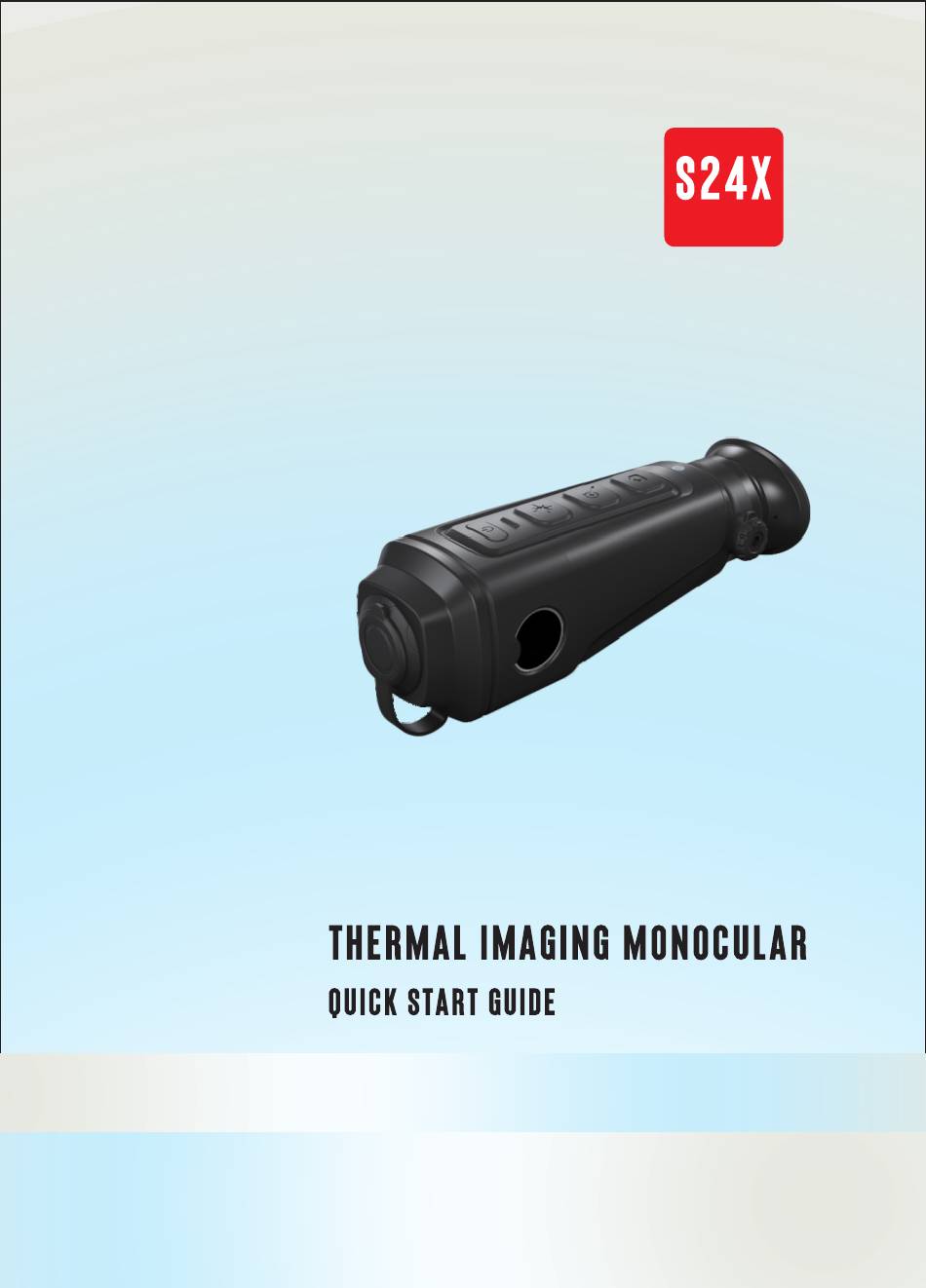

- Page 1 series...
- Page 2 series Power/Color/Zoom in/Photo Charging\data,Video Power light Laser Eyepiece Display Lens (Lens cover) Diopter...
- Page 3 series Power ·Long press to turn on/off the thermal imager, and the green indicator light will be on after turning on. ·Short press for dormancy, in dormancy, press any key to wake up. Color palette ·Short press to switch polarity. ·Long press to turn on the laser.
- Page 4 series Photo ·Short press for photo taking, long press to start recording, short press again to end recording. Combination buttons： Photo button and zoom button ·Long press the “Photo”button and “Zoom” button at the same time to manually correct the image. Diopter adjustment button ·Adjust the diopter of the knob according to the degree of myopia.
- Page 5 series according to the on-site environment by pressing the “zoom in” “photograph” button : 0~100% adjustable,the factory default is: 25%,can be adjusted according to the scene environment by pressing “Zoom” or“Photo” buttons : 0~15 “ “Photograph” key to adjust according to the on-site environment to obtain a clearer image.
- Page 6 series software “connect” to see the image, and the functions of image taking, video recording, playback and storage can be realized through the mobile software. In Android phones, you can download the mobile client program from the ofcial website and install it. on the scale can be automatically displayed, and the range can be adjusted by pressing the “zoom in”...
- Page 7 series or “photograph” button. To upgrade the system, the upgrade program must be stored in the built-in memory card of the instrument through the computer, and then click this option to upgrade. you can press the Zoom” button to turn on the "ON" formatting, please do not do other operations after it is turned on, a box will pop up after the format is successful, and the "OFF"...
- Page 8 series When charging, remove the interface cover at the bottom of the instrument and · insert the USB charging cable (voltage DC5V/2A) for charging. The red indicator light means charging, and the green indicator light means the · charging is completed. Remove the interface cover at the bottom of the instrument and connect the ·...
