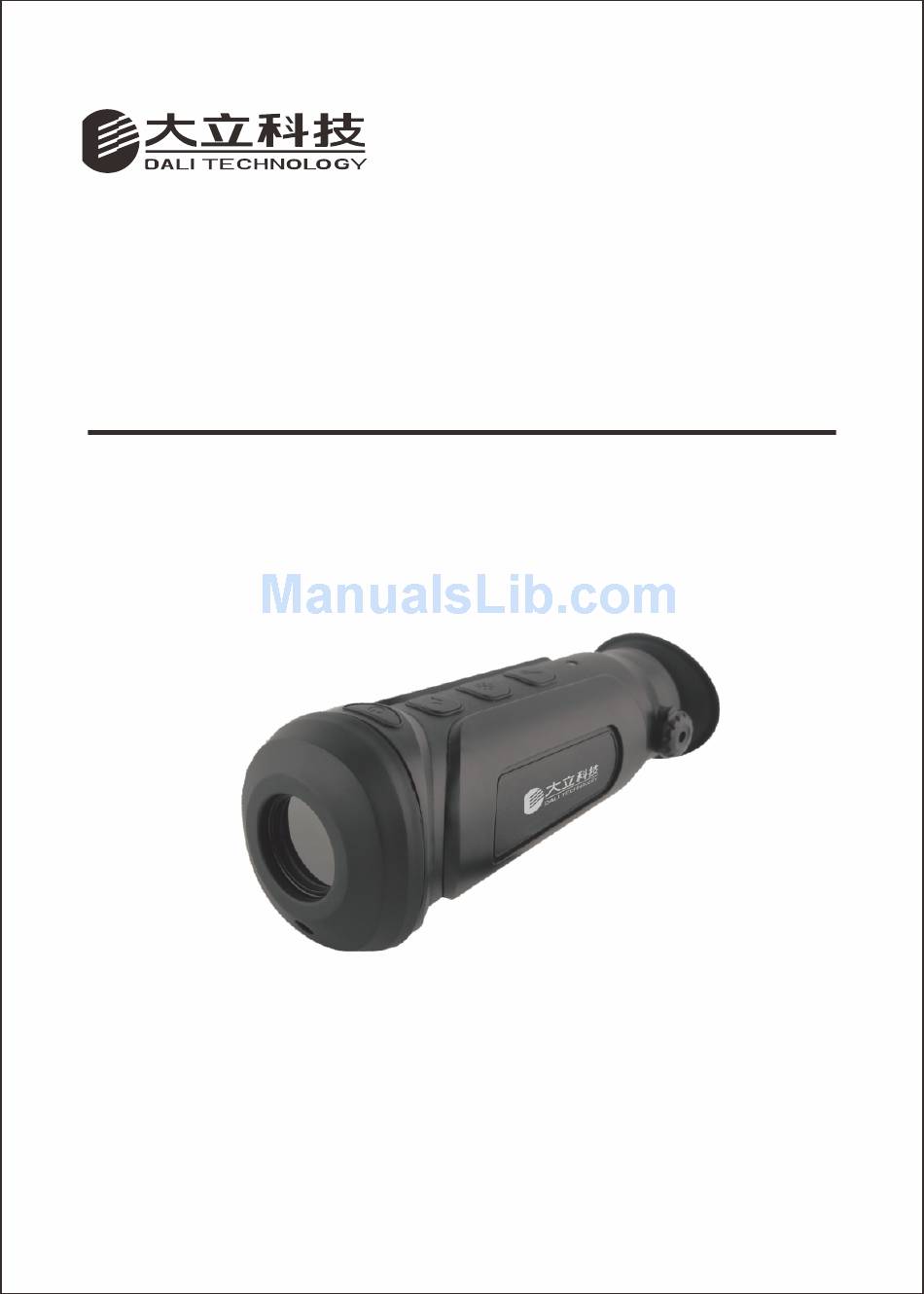

S240 Thermal Imaging Monocular Quick Start Guide ZHEJIANG DALI TECHNOLOGY CO LTD...
Page 2
IOutlinebuttonsandinterfaces Powerindicator Zoom/WIFI Palette/ Brightness/Laser Hotspottracking Power/NUC IIButtons&Functions PowerButton Longpress3StoswitchON/OFFthecamera.Greencolorindicatorwillbeturned onafterthecameraispoweredon. ShortclicktomakeNUC(non-uniformitycorrection)tothecameraifneeded. ElectricalZoom ShortclicktoswitchbetweenX2,X3,X4imagedigitalzoom,thegoalcanbe amplifiedinrealtime Longpress3secondstoopentheWIFIimagetransferfunction,thewifilogo willbedisplayedintheupperrightcorneroftheimagedisplay. IntheAndroidorappleappstoresearchIR-TRACKER,installtheapp.Switchon (longpress""buttonfor3S)theWiFifunction,usethemobilephonetofind hotspot"CHD-BE:XX",enterthepasswordtoconnect"12345678"aftera successfulconnection,runtheapp” IR-TRACKER” inthecellphone,click "connect"thenpressconfirmonthepop-upmenu.Thedefaultpasswordis “chird” anditcannotbechanged.thentheliveimagescanbeseen.through mobileapp,customerscanhavetakingpicture,videorecording,playback, storagefunctions. Brightness Shortpresstoadjustthebrightnessleveloftheeyepiece(Level5),adjustthe brightnessaccordingtothesiteenvironment. Longpress3secondstoopenthelaserpointerfunction. Polarity(Palette) Shortpressswitchdisplaybuilt-incolorpalettesblackhot,whitehotand redhot,therearethreekindsofcolorpalettesembeded. longpress3secondstoopentheimagefocustrackingfunction.
Page 3
Eyepiece VisualAdjustmentKnob VideoOutput USBportforcharging Holefortripod Laserpointer Lens VisualAdjustmentKnob Adjusttheknobaccordingtothedegreeofpersonalmyopia. USBCharge Whencharging,throughtheinstrumentatthebottomoftheUSBcover,insert theUSBchargingcabletocharge(voltageDC5V).Whencharging,theredindicator lightisbright,andthechargeisfinishedasthegreenindicatorlight. VideoOutput Opentherubbercoveratthebottomofthecameracanfindthevideointerface, insertthevideocableconfiguration,accessdisplaywithdisplayerorother long-distancetransmission. IIIImportantNotes Foruncooledinfraredtelescopeusingaverysensitivethermalreactor,soin anycase(bootorshutdown)shallnotbethelensdirectlyalignedwithstrong radiationsource(suchasthesun,laserbeamshinesorreflex),otherwiseitwill bringpermanentdamagetotheuncooledinfraredtelescope! Pleasedonotpointthelaserpointertothehumaneyeafteritisswitchedon, soastoavoiddamage! Thecamerawillbeswitchedintothestandbymodeautomaticlyifthereis nooperationdonetothecamerawithin5minutesandcanbewakedupby clickingonanybutton. Forthefirsttime,pleasecheckthebattery.ForUSBchargingpleaseputthe instrumentintheenvironmentbelow40℃. Pleasedonotopentheenclosureordoanymodifytothecamera,the maintenanceandrepairofthecameracanonlybedonebytheauthorized personbyourcompany.
Page 4
Add: 639 Binkang Road, Hangzhou, P.R.CHINA, 310053 Tel: +86-571-86695699 Fax: +86-571-86695600 www.dali-tech.com E-mail: sales@dali-tech.com...
