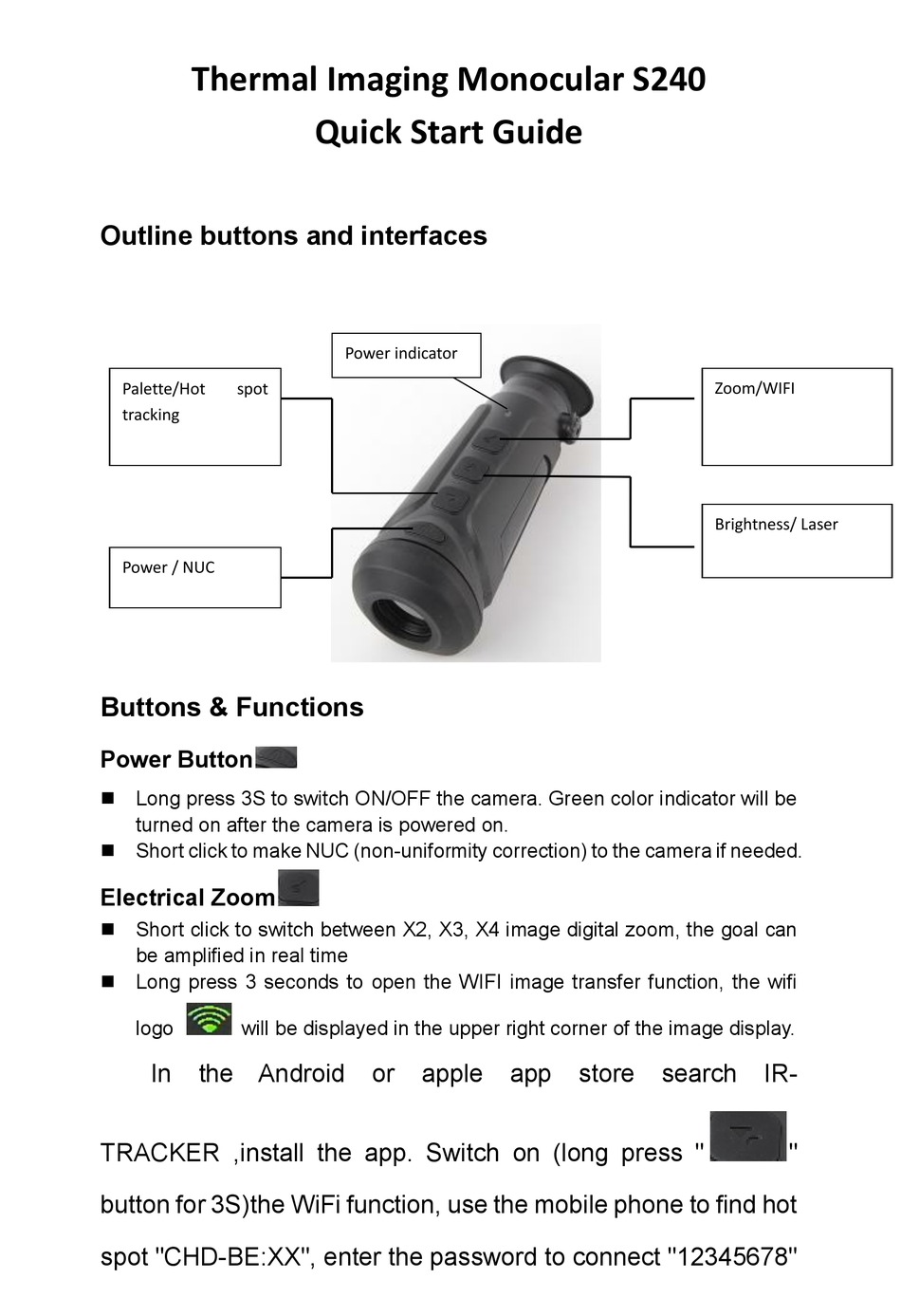

Thermal Imaging Monocular S240
Outline buttons and interfaces
Palette/Hot
spot
tracking
Power / NUC
Buttons & Functions
Power Button
Long press 3S to switch ON/OFF the camera. Green color indicator will be
turned on after the camera is powered on.
Short click to make NUC (non-uniformity correction) to the camera if needed.
Electrical Zoom
Short click to switch between X2, X3, X4 image digital zoom, the goal can
be amplified in real time
Long press 3 seconds to open the WIFI image transfer function, the wifi
logo
will be displayed in the upper right corner of the image display.
In
the Android
TRACKER ,install the app. Switch on (long press "
button for 3S)the WiFi function, use the mobile phone to find hot
spot "CHD-BE:XX", enter the password to connect "12345678"
Quick Start Guide
Power indicator
or
apple
app
store
search
Zoom/WIFI
Brightness/ Laser
IR-
"
Advertisement
Table of Contents
Related Manuals for Dali S240
Summary of Contents for Dali S240
- Page 1 Thermal Imaging Monocular S240 Quick Start Guide Outline buttons and interfaces Power indicator Palette/Hot spot Zoom/WIFI tracking Brightness/ Laser Power / NUC Buttons & Functions Power Button Long press 3S to switch ON/OFF the camera. Green color indicator will be turned on after the camera is powered on.
- Page 2 after a successful connection, run the app” IR-TRACKER”in the cell phone, click "connect" then press confirm on the pop-up menu. The default password is “chird” and it can not be changed . then the live images can be seen. through mobile app, customers can have taking picture, video recording, playback, storage functions.
- Page 3 Visual Eyepiece Adjustment Knob Video Output USBport Hole for tripod charging Laser pointer Lens Visual Adjustment Knob Adjust the knob according to the degree of personal myopia. USB Charge When charging, through the instrument at the bottom of the USB cover, insert the USB charging cable to charge (voltage DC5V).
- Page 4 will bring permanent damage to the uncooled infrared telescope! Please do not point the laser pointer to the human eye after it is switched on, so as to avoid damage! The camera will be switched into the standby mode ...
