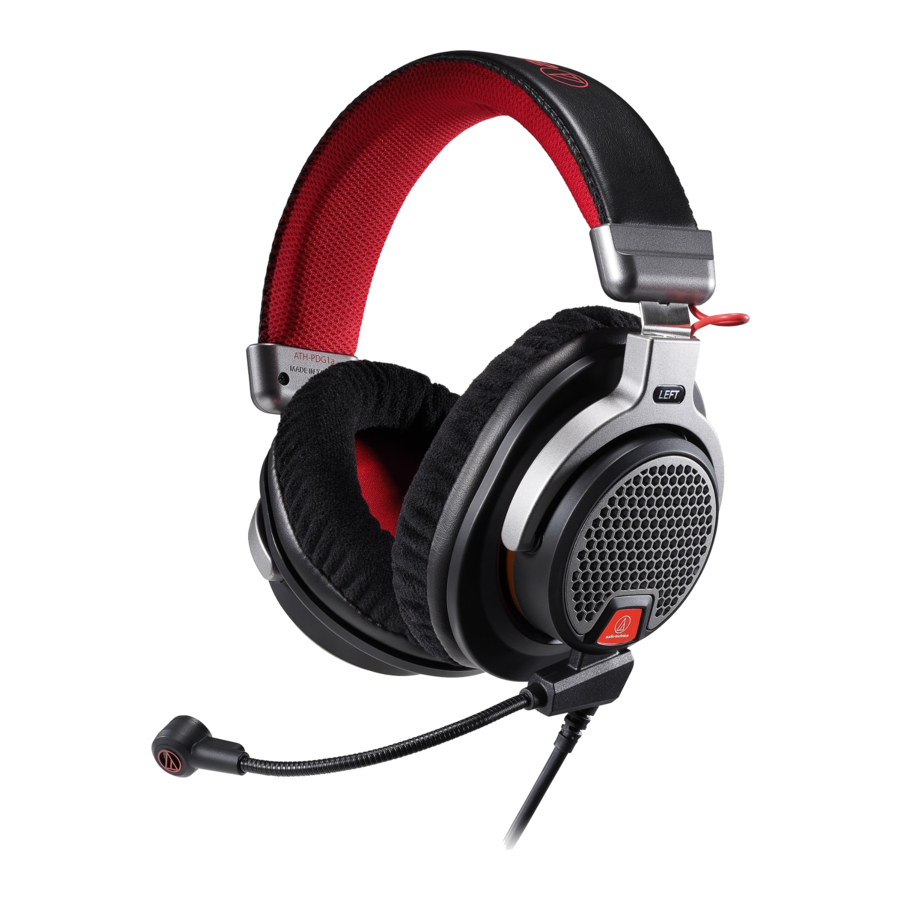

Audio-Technica ATH-PDG1a - Gaming Headset Manual

Name of each part

Confirm each part before using the product.

1. Earpad
2. Headband
3. Arm
4. Housing
5. LEFT/RIGHT indicator
6. 3.5 mm (1/8") stereo mini-jack
7. 1.2 m (3.9') cable with smartphone controller and mic
8. 3.5 mm (1/8") goldplated stereo mini-plug
9. Remote control with mic
10. 3.5 mm (1/8") gold-plated stereo mini-plug (4 pole/L-shaped)
11. Microphone
12. 2.0 m (6.6') cable for PC
13. Y-type stereo headset cable
14. 3.5 mm (1/8") gold-plated stereo mini-plug (3 pole)
15. 3.5 mm (1/8") gold-plated stereo mini-plug

Using the product

Lower the volume on the device you intend to use.

1. Connect the 2.0 m (6.6') cable for PC to headphones.

• When connecting to smartphone, use the 1.2 m (3.9') cable with smartphone controller and mic.

2. Connect the product to the Y-type stereo headset cable, and then connect the Y-type cable to the PC's microphone input and headphone output.

• When your PC's headphone/microphone terminal is integrated, you don't need the Y-shaped stereo headset cable.
• When connecting to a PlayStation ® 4 wireless controller, connect to the stereo headphone/microphone jack on the wireless controller.
• When connecting to a smartphone, connect to the headphone jack of the smartphone.

3. Place the headphone marked "LEFT" over your left ear and the headphone marked "RIGHT" over your right ear so that the earpads cover your ears completely.
4. When using the 2.0 m (6.6') cable for PC, adjust the microphone for optimal pickup.
5. Turn on the connected device and adjust volume as necessary.

Microphone pivot point (2.0 m (6.6') cable for PC)

• The arm can be moved upward or downward for optimal microphone positioning as shown in the figure.
• This microphone is a flexible gooseneck type.
• When using this product, do not rub the microphone or hold it tightly to avoid unexpected noise or malfunction.


Using the remote controller (2.0 m (6.6') cable for PC)

Adjust the volume for the headphones and mute and unmute the microphone.

Using the remote controller (1.2 m (3.9') cable with smartphone controller and mic)

• Some smartphones do not support playback and pause functionality for music file.
• The remote control on the headphones cannot adjust the volume on the playback device itself.
• Playback will not be muted, even on the lowest setting.

Specifications

Headphones

• Type: Open air dynamic
• Driver: 40 mm
• Sensitivity: 92 dB/mW
• Frequency response: 20 to 20,000 Hz
• Maximum input power: 1,300 mW
• Impedance: 39 ohms

Microphone

2.0 m (6.6') cable for PC

• Type: Back electret condenser
• Polar pattern: Unidirectional
• Sensitivity: -38 dB (0dB=1V/Pa, 1 kHz)
• Frequency response: 250 to 16,000 Hz

1.2 m (3.9') cable with smartphone controller and mic

• Type: condenser
• Polar pattern: Omnidirectional
• Sensitivity: -40 dB (0dB=1V/Pa, 1 kHz)
• Frequency response: 100 to 10,000 Hz

Other

• Weight (without cable): Approx. 225 g (7.9 oz)
• Accessories: 2.0 m (6.6') cable for PC (3.5 mm (1/8") gold-plated stereo mini-plug (4 pole)), 1.2 m (3.9') cable with smartphone controller and mic (3.5 mm (1/8") gold-plated stereo mini-plug (4 pole/L-shaped), Y-type stereo headset cable
• Sold separately: Earpad, 2.0 m (6.6') cable for PC, 1.2 m (3.9') cable with smartphone controller and mic, Y-type stereo headset cable

For product improvement, the product is subject to modication without notice.

"PlayStation" is a registered trademark of Sony Computer Entertainment Inc.
PS4 is a trademark of the same company.
