Identify the Connectors and Attach the Cables

Identify the connectors and switches on the back panel and attach the necessary Netopia Router cables.
• • • • E E E E t t t t h h h h e e e e r r r r n n n n e e e e t t t t C C C C o o o o n n n n n n n n e e e e c c c c t t t t i i i i o o o o n n n n m m m m e e e e t t t t h h h h o o o o d d d d ( ( ( ( p p p p r r r r e e e e f f f f e e e e r r r r r r r r e e e e d d d d ) ) ) )

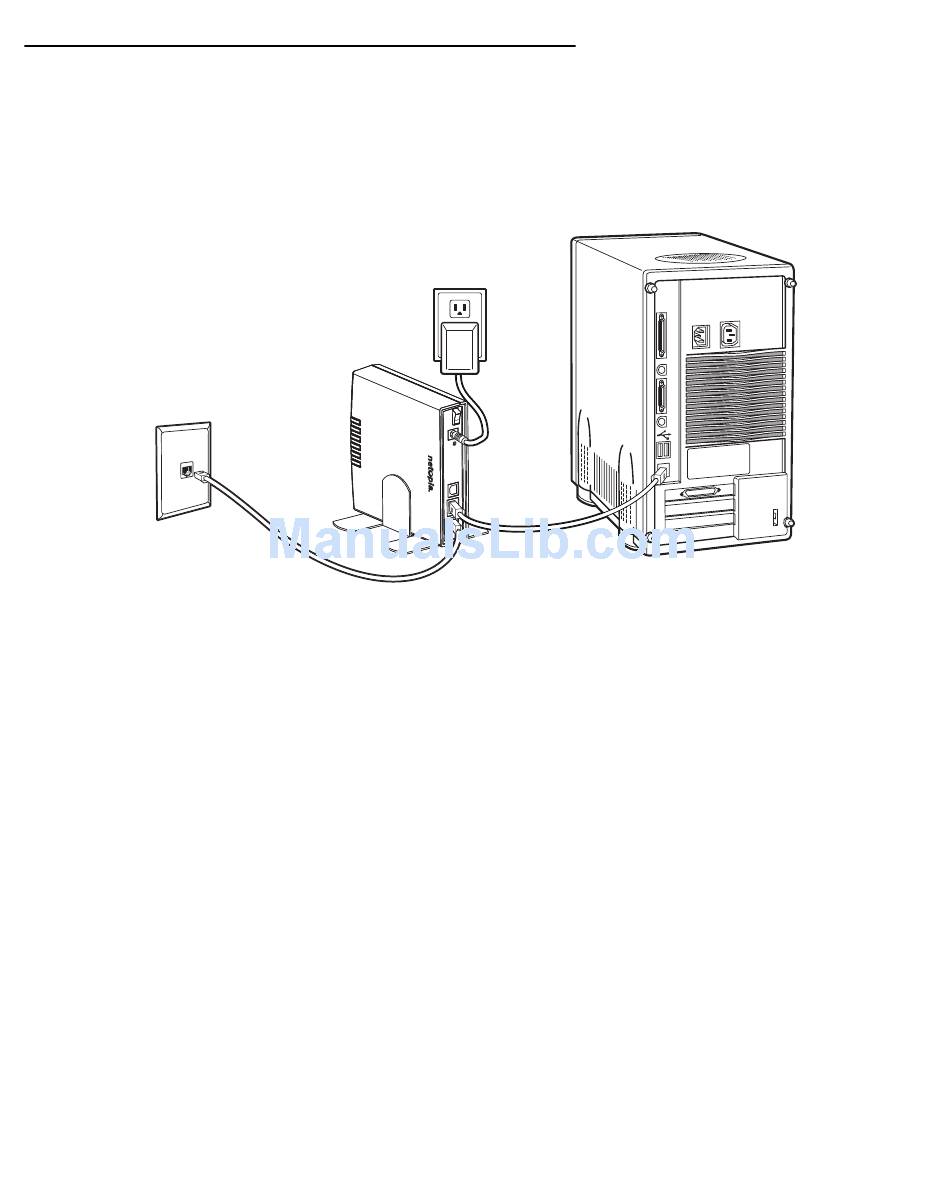

Connect your computer, DSL line, and power source as shown.
1. For a direct computer to router Ethernet connection, use the standard Ethernet cable included with your
router.
2. Use the supplied DSL line cable to connect the router to your DSL wall outlet.
3. Connect the supplied power brick to a power outlet and the connector end to the router.
You should now have: the power adapter plugged in; the Ethernet cable connected between the router and your
computer; and the DSL cable connected between the router and the DSL wall outlet.
