Configuration and Setup

Section 4: Configuration and Setup

4.1 Setup Example

The Quick Start Demo
After making the power and Ethernet connections, the X-600M can automatically scan for the presence
of any ControlByWeb™ Ethernet devices (on the same sub-net) and also for any expansion modules
connected to the X-600M via the ribbon-cable connector. It also automatically creates a dashboard web
page and populates it with all of the resources (components) supported by the Ethernet devices and
expansion modules. This makes it easy to start experimenting with the web page's user interface and to
try out the relays and sensors.
To quickly add a device do the following:

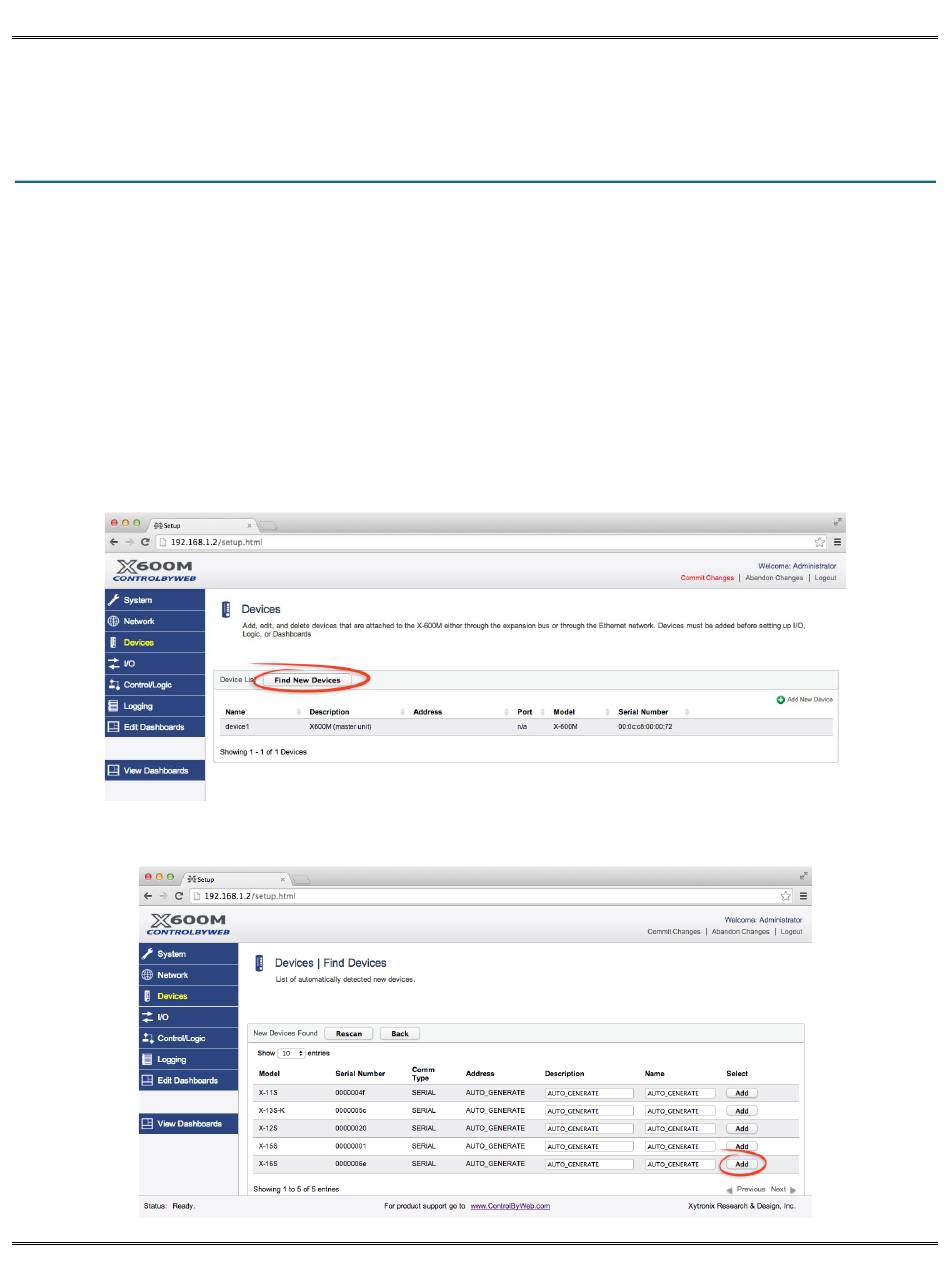

1. Click on the Devices menu tab to pull up the Devices Overview page. Then click on the Find New
Devices button to scan the expansion bus and the local network for ControlByWeb devices and
expansion modules.
2. In this example we are going to add an X-16s analog expansion module. Click the Add button for the
X-16s.
