Section 3: Example Applications
3.1 Monitor Height, Position, etc. over an IP network

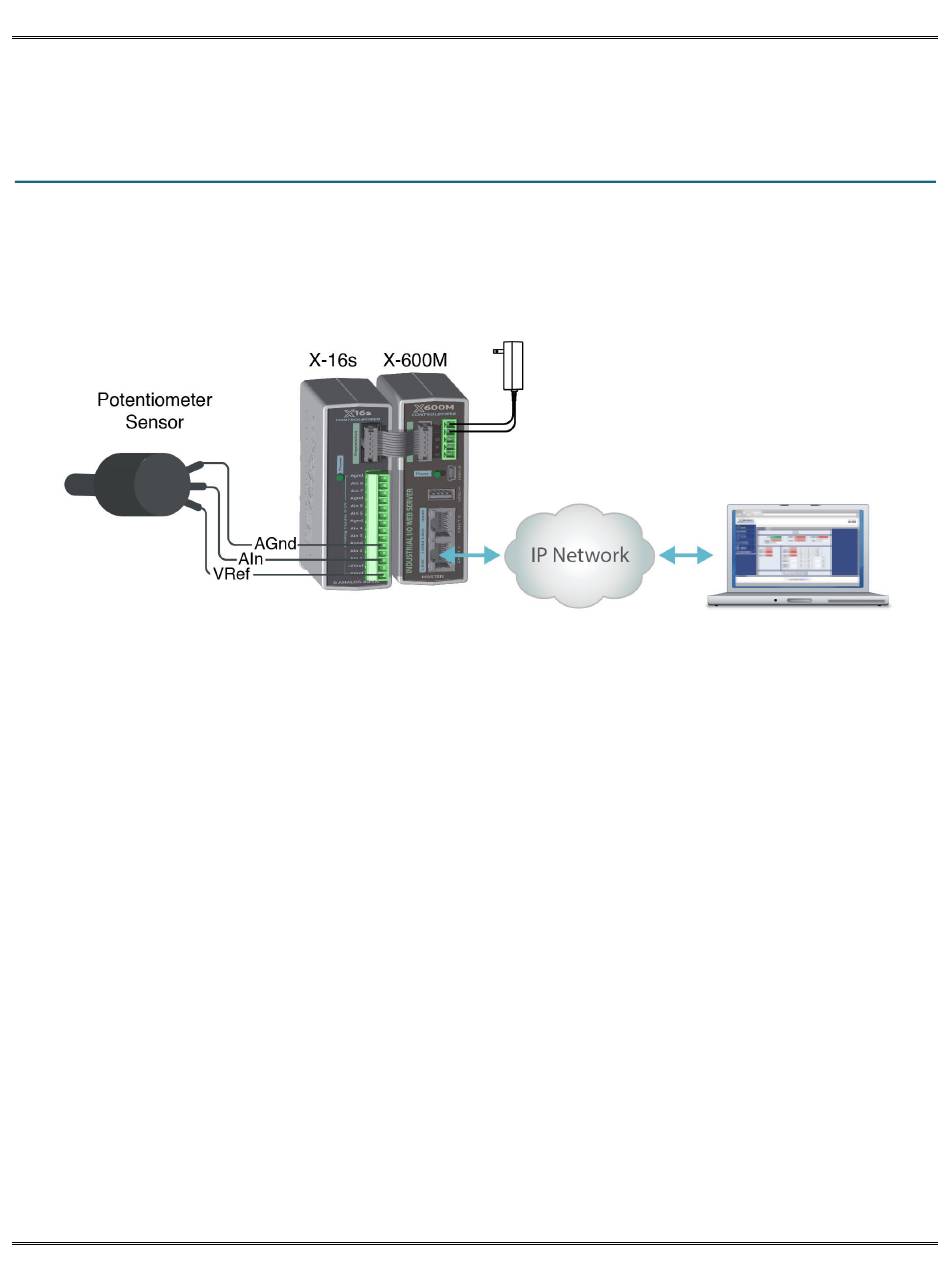

The illustration below shows an example of using the X-16s with a potentiometer position sensor.
Potentiometers are in essence a variable resistor with three connections. Typically the +5Vref reference
from the X-16s is used to apply power across the potentiometer. The wiper terminal of the potentiometer
is connected to any of the eight analog inputs.
Xytronix Research & Design, Inc.
Example Applications
Page 13
