Wavetronix Click 111 Using Manual page 17

Level 1 LEDs
Level 2 LEDs

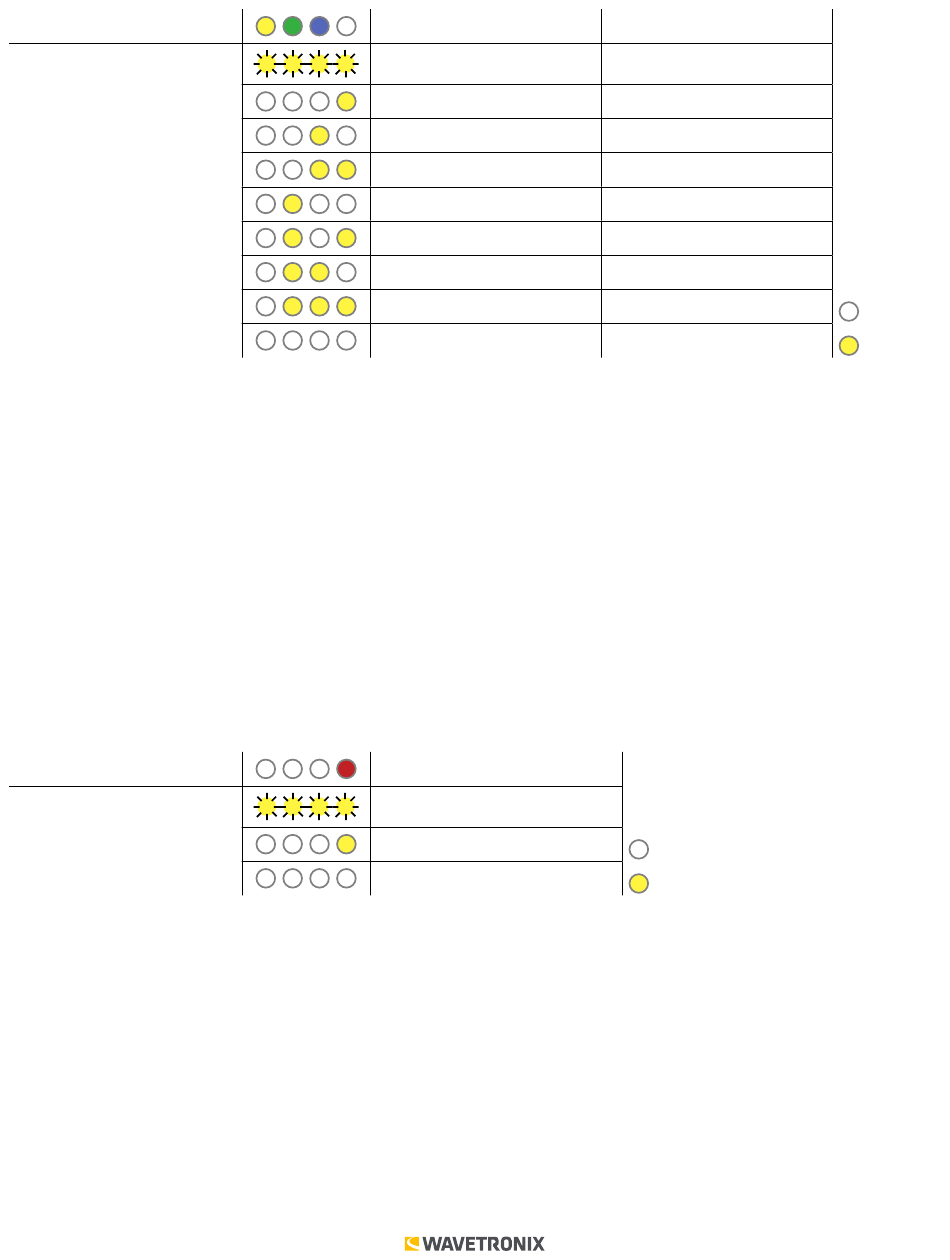

See the Navigating through the Menu and the Menu Operation Example sections for how to configure this parameter.
Because this parameter can also be set by the DIP switches, you may need to ensure that the DIP switches are
set to Software configuration mode; if they are set to Hardware, the front panel menu will be able to display but
not change these settings.
Channel Ouput Polarity
The next parameter on the front panel menu label is channel output polarity. To select this parameter, release the
push-button when the red LED comes on solid.
Note. This parameter can also be changed using the DIP switches or Click Supervisor.
This parameter lets you choose the polarity of the calls placed by the Click 111. A call can be indicated by either
high voltage or low voltage, depending on how you configure the device. The Channel Output Polarity parameter
affects both buses.
Level 1 LEDs
Level 2 LEDs
See the Navigating through the Menu and the Menu Operation Example sections for how to configure this parameter.
Because this parameter can also be set by the DIP switches, you may need to ensure that the DIP switches are
set to Software configuration mode; if they are set to Hardware, the front panel menu will be able to display but
not change these settings.
Fault Ouput Polarity
The next parameter on the front panel menu label is fault output polarity. To select this parameter, release the
push-button when the yellow and red LEDs come on solid.
Note. This parameter can also be changed using the DIP switches or Click Supervisor.
