Wavetronix Click 111 Using Manual page 14

Note. This parameter can also be changed using the DIP switches or Click Supervisor.
This group of DIP switches determines whether the data buses are enabled to receive contact closure data. Each
bus can be independently enabled or disabled.
This parameter may be useful if you know a bus will not be receiving any data—for instance, if you're only using
one sensor with your Click 111. If a bus is disabled from receiving data, then its associated channels will not go into
a fault state, even if that bus is not receiving any data.
Note. If you've disabled a bus from receiving data, you can still use it to configure the card using Click Supervisor.
A disabled output will never enter the detection state, and will never indicate a fault condition. Any combination
of outputs can be enabled. Due to limited space on the side label, not all combinations of enabled and disabled
channels are listed (see the table below).

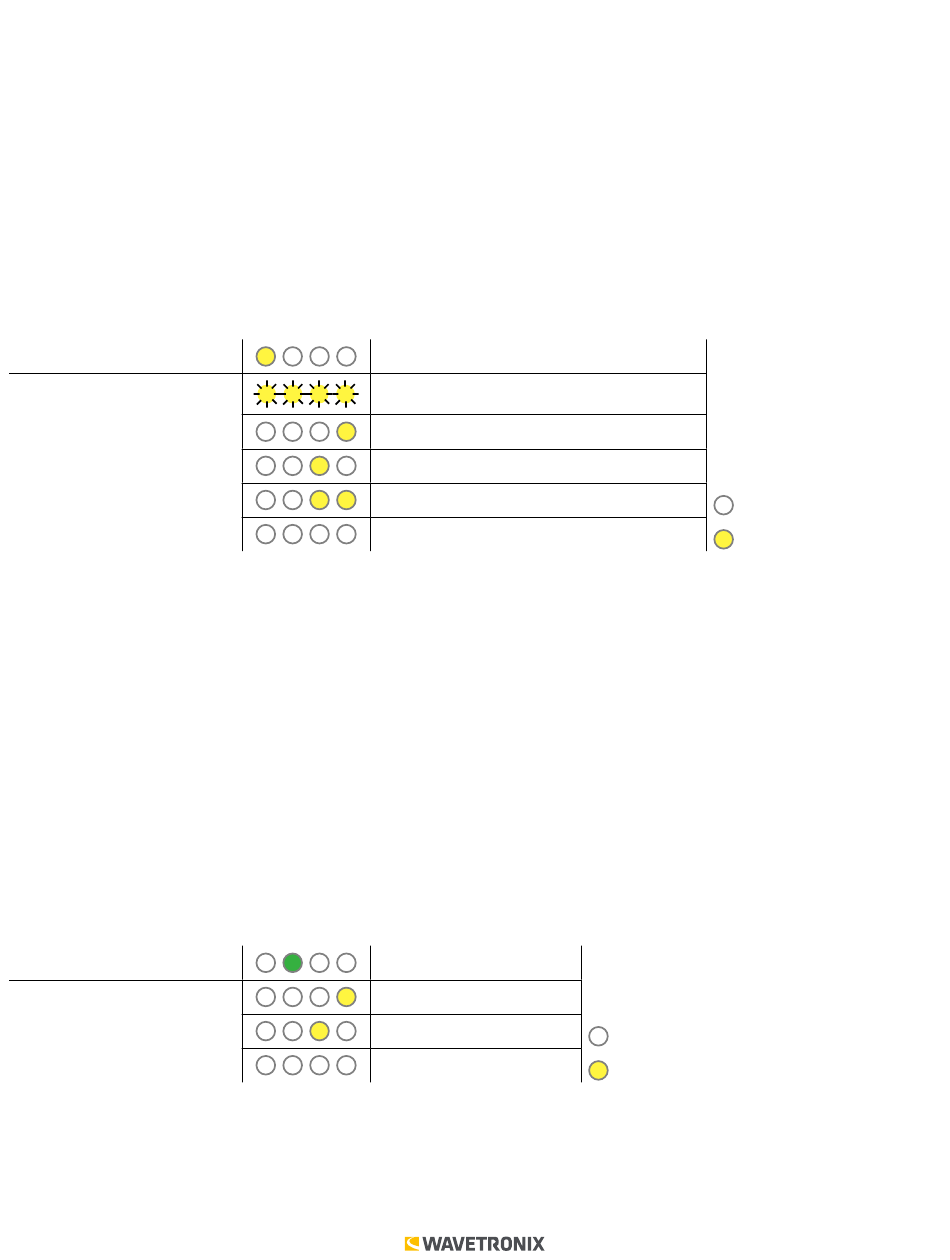

Level 1 LEDs
Level 2 LEDs
See the Navigating through the Menu and the Menu Operation Example sections for how to configure this parameter.
Because this parameter can also be set by the DIP switches, you may need to ensure that the DIP switches are
set to Software configuration mode; if they are set to Hardware, the front panel menu will be able to display but
not change these settings.
Autobaud
The second option on the front panel menu label is the autobaud function. This option is indicated by the green
LED coming on solid.
Note. The autobaud function can only be accessed here, on the front panel menu.
This function initiates an autobaud on the RS-485 buses (you will select which bus to autobaud on the Level
2 LEDs). An autobaud will stop data reporting on the selected port and attempt to communicate with the
SmartSensor at all supported baud rates.
Level 1 LEDs
Level 2 LEDs
See the Navigating through the Menu and the Menu Operation Example sections for how to configure this parameter.
WX-501-0552 • 01.22
Bus Data Enable
Bus 1 & 2 Data Disabled
Bus 1 Data Enabled, Bus 2 Data Disabled
Bus 1 Data Disabled, Bus 2 Data Enabled
Bus 1 & 2 Data Enabled (Default)
Cancel and exit menu
Autobaud
Autobaud on bus 1
Autobaud on bus 2
Cancel and exit menu
LED off
LED on
LED off
LED on
14 of 23
