Summary of Contents for Minolta MN2K50NV

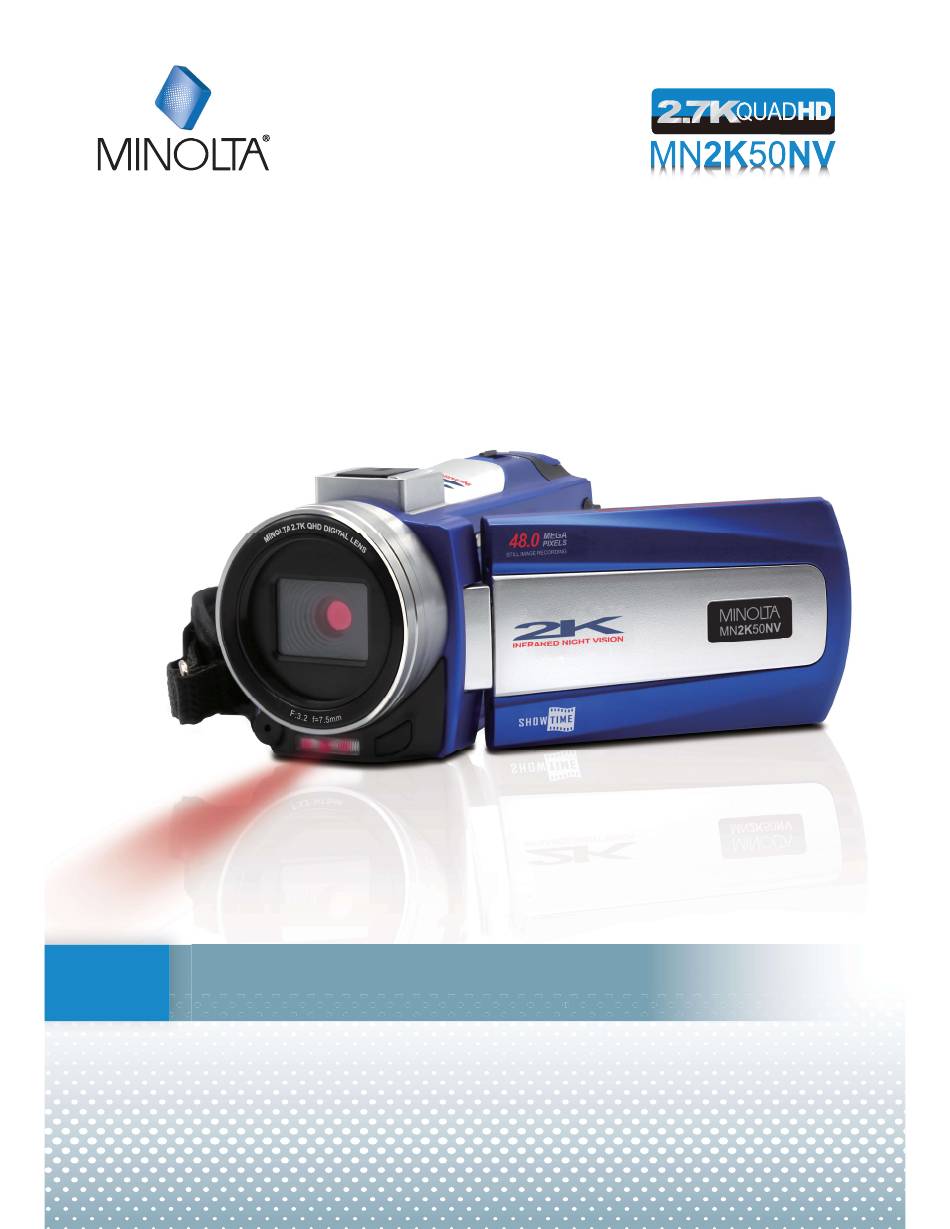

  • Page 1 MN2K50NV User Manual...

  • Page 2: Federal Communications Commission Interference Statement

    About this Manual Congratulations on purchasing the Minolta MN2K50NV Camcorder! The contents of this manual are subject to change without notice. Note that the differ somewhat from the screens and configuration of the actual camera. Copyright This manual contains proprietary information protected by copyright. All rights are reserved.
  • Page 3 conditions for satisfying RF exposure compliance. FCC: SAR standard Value: 1.6 W/Kg, Maximal Measure: 0.4 W/kg CE Mark Warning This is a Class B product, in a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.
  • Page 4 batteries, which might cause poisoning. Once the battery's color changes or its shape is twisted, please stop using it. USB adapter Information Do not expose the adapter to high temperatures or moisture places. Otherwise, it may cause fire or electric shock. Do not attempt to repair, disassemble, change or transform the adapter.
  • Page 5 1.1 Camcorder Interface...
  • Page 6 1.2 Button Function Description Function Description Tap once to power on, press and hold for 2 Power | IR seconds to power off. While powered on, tap once to enable or disable IR night vision. Tap to cycle between Video, Photo, Playback and Mode Setup modes.
  • Page 7 Battery Release Slide the switch to remove the battery. Switch Built-in speaker output for playback of video files Speaker when audio recording is enabled. Lens Front capture device for all video and photo.

  • Page 8: First Use

    2. First Use 2.1 Inserting the Memory Card Insert the included SD memory card to record and store your videos and photos. When the battery is low, media stored on the memory card will not be erased. Please insert the SD memory card by following the steps below: 1.
  • Page 9 NOTE: Please format the memory card before using the camcorder (Caution, this will erase all data on the card). Do not remove or insert the memory card when recording. It may damage the card or cause data loss. Memory card rating must be Class 10 or above. 2.2 Installing the Battery Insert the lithium-ion battery into the battery compartment with the metal contacts facing the back of the camcorder.
  • Page 10 2.3 Charging the Battery Connect your camcorder to the included AC adaptor with the USB cable provided for charging. Open the camcorder LCD screen to access the charging port. Flip down the charging port door to access the USB port. Insert the small end of the USB plug into the camcorder s port, and the larger end in to the included AC adaptor.
  • Page 11 2.7 Connecting to a TV The camcorder can also be connected to a TV. When connected, the camcorder screen will turn off and the camcorder will function normally. Use the TV as the camcorder monitor.
  • Page 12 2.8 Video Mode Press the MODE button to switch to Video Mode. The meaning of each icon within Video Mode is explained in the table below: 1) Video Mode 7) Zoom Indicator 13) White Balance 2) Video Size (Resolution) 8) Battery Level 14) Menu 3) Beauty Filter Icon 9) Effect...
  • Page 13 2.9 Photo Mode Press the MODE button to switch to Photo Mode. The meaning of each icon within Photo Mode is explained in the table below: 1) Photo Mode 8) Number of Photos Remaining 15) Exposure 2) Photo Size (Resolution) 9) Memory Card Inserted 16) Image Quality 3) Beauty Filter 10) Zoom Indicator...
  • Page 14 2.10 Using the Zoom Function This camcorder has a digital zoom function. To operate the zoom function, slide the ZOOM button right to zoom in closer to the subject, and to the left to zoom away from the subject. 2.11 Using the IR Night Vision Mode This camcorder has built-in infrared (IR) LEDs for night vision recording - giving you the ability to capture photos and videos in a dark environment.

  • Page 15: Remote Control

    2.13 Remote Control Note: Before using the remote, remove the battery tab on the back. When using the remote, it should be pointed towards the remote control receiver on camcorder as they can block the signal from the remote.
  • Page 16 Using the Camcorder 3.1 Video Recording Power the camcorder on and it will be ready to record clips right away. You may press the MODE button or press the icon in the top left corner of the touch screen to switch to another mode. A camcorder icon will appear in the top left hand corner of the screen when you are in Video mode.
  • Page 17 2. Select using the LEFT or RIGHT buttons and press the OK button to enter the submenu. 3. Press the LEFT or RIGHT buttons to navigate the menu and press the OK button to confirm your selected setting (Auto, Daylight, Cloudy, Fluorescent, Tungsten).
  • Page 18 seamlessly end recording and begin recording a new video file. 3.1.7 Time-Lapse This feature allows you to capture long sequences of events in a much shorter time period. 1. In Video Mode press the MENU button. 2. Select using the LEFT or RIGHT buttons and press the OK button to enter the submenu.
  • Page 19 2. Select Beauty Filter using the LEFT or RIGHT buttons and press the OK button to enter the Beauty Filter submenu. 3. Press the LEFT or RIGHT buttons to navigate the menu and press the OK button to confirm your selected option (On, Off). 4.
  • Page 20 3.2 Photo Shooting Power the camcorder on and press the MODE button or press the icon in the top left hand corner of the touch screen to switch to Photo mode. 1. Line up your shot by looking at the LCD screen to see what is in the shot. 2.
  • Page 21 button to confirm how sharp you would like your photograph to be (Sharp, Normal, Soft). 4. Press the MENU button to exit the menu without making a selection. 3.2.4 White Balance White Balance changes the color of light in your pictures, making it seem warmer or cooler depending on how the light you're shooting in affects the frame.
  • Page 22 Press the LEFT or RIGHT buttons to navigate the menu and press the OK button to confirm your selected option (Off, 2 Seconds, 5 Seconds, 10 Seconds). Press the MENU button to exit the menu without making a selection. 3.2.8 Photo Burst This function allows to you capture 3 consecutive photos with one click of the PHOTO button.
  • Page 23 2. Select using the LEFT or RIGHT buttons and press the OK button to enter the submenu. 3. Press the LEFT or RIGHT buttons to navigate the menu and press the OK button to confirm your selected option (Auto, Night, Portrait, Landscape, Backlight, Sport, Party, Beach, High Sensitivity).
  • Page 24 Playback Mode Videos and photos captured on your camcorder can be easily played back. 1. Press the LEFT or RIGHT buttons to cycle through the captured videos and photos stored on the memory card. 2. When viewing a photo push the ZOOM button to the right and it will zoom in on the picture on the screen.
  • Page 25 Rotate submenu. 2. Press the LEFT or RIGHT buttons to navigate the menu and press the OK button for your selected setting (90°, 180°, 270°). 3. Press the MENU button to exit the menu without rotating the current picture. 3.3.4 Slideshow Photographs can be viewed as a slideshow on the camcorder.
  • Page 26 3.4 Setup Menu Basic settings can be changed in the Setup menu. These include date & time, language and sound options. Power the camera on and press the MODE button, or press the icon in the top left hand corner of the touch screen to switch to setup mode.
  • Page 27 3.4.4 Beep Sound This function can turn the sound the camcorder makes after pressing a button, on or off. 1. In Setup Mode, use the LEFT or RIGHT buttons to select Beep and press the OK button to enter the Beep Sound submenu. 2.
  • Page 28 3.4.8 Touch Screen Calibration The LCD touch screen can be calibrated by following these steps. 1. In Setup Mode use the LEFT or RIGHT buttons to select Touch Screen and press the OK button to start calibrating the screen. 2. There will be a small plus sign that then shows in the bottom left corner of the screen, try to touch the plus sign as close to center as possible.
  • Page 29 4.1 Technical Specifications Model Number Minolta MN2K50NV 7mm Front Lens Threading for Lens Accessory Attachments Zoom 16X Digital Zoom Image Sensor 8MP CMOS Sensor Shutter -Shake Image Stabilization JPEG: Pixels (photo) Pixels (video) AVI: 2.7K 1080p 720p VGA ISO Sensitivity...
  • Page 30 Minolta is a registered trademark of JMM Lee Properties, LLC and is used in the United States by Elite Brands Inc. under license. -441-1100 www.minoltadigital.com www.elitebrands.com Copyright © 2022 Elite Brands Inc. please call our toll-free technical support hotline at 800-441-1100. Please be...
