RUCKUS SmartZone 300
AC Power Supply Unit
Quick Setup Guide
This Quick Setup Guide provides information on how to order a
replacement AC power supply unit (PSU) for the SmartZone 300
(SZ300) controller. It also describes how to replace the AC PSU on
the controller.
For additional guides that describe how to install or replace other
field-replaceable units (FRUs) on the SmartZone 300 controller,
visit the Ruckus Support website at:
https://support.ruckuswireless.com/documents
This Guide in Other Languages
请从以下网站获得该指南的简体中文版
https://
support.ruckuswireless.com.
Vous trouverez la version française de ce guide à l'adresse
suivante https://support.ruckuswireless.com.
このガイドの日本語版は
https://support.ruckuswireless.com
でご覧ください。
이 가이드의 한국어 버전은 웹 사이트
(https://
support.ruckuswireless.com) 에서 확인하시기 바랍니다.
Veja a versão em português (Brasil) deste guia em
support.ruckuswireless.com.
Puede ver la versión en español (América Latina) de esta guía en
https://support.ruckuswireless.com.
AC Power Supply Unit Ordering Information
To order a replacement AC power supply unit for the SmartZone
300 controller, contact Ruckus Support.
For information on how to contact Ruckus Support, visit
support.ruckuswireless.com/contact-us. When asked for the part
number, provide the information in the following table.
TABLE 1 AC Power Unit Part Number
Part Number Description
902-S310-AC00 Kit, spare, AC power supply, SZ300 (use with
902-0174-XX00 power cord)
Copyright © 2021 CommScope, Inc. All rights reserved.
Published December 2021, Part Number 800-72221-001 Rev D
Replacing the AC Power Supply Unit on the
SmartZone 300
When a power supply unit (PSU) on the SmartZone 300 fails,
obtain a new PSU from Ruckus and replace the faulty PSU. You
can tell if a PSU has failed if its status LED is red and it is emitting
long, recurring beeps.
NOTE: The PSU is hot pluggable; you do not need to power
down the controller before replacing it.
DANGER: The PSU may be hot! Exercise caution when touching
the PSU.
1. Locate the PSU that must be replaced.

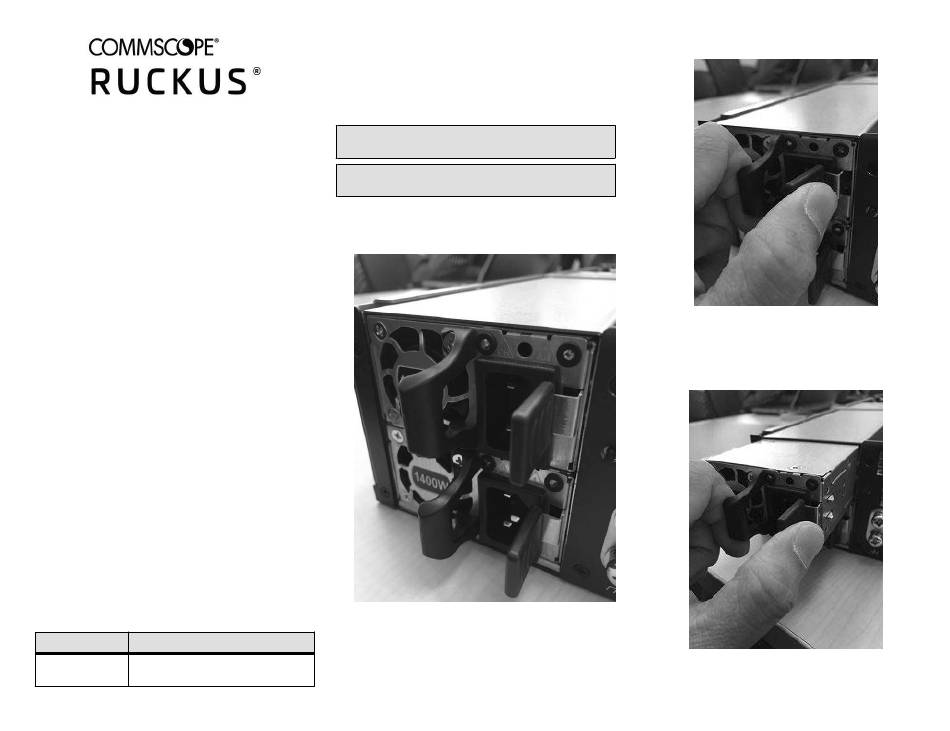

FIGURE 1 AC PSU
https://
https://
2. Disconnect the power cable from the failed PSU.
3. Unlock the PSU by sliding the lock to the left.
FIGURE 2 Unlocking the PSU
4. Hold the lock, and pull the handle of the PSU away from the
chassis to remove it.
FIGURE 3 Removing the PSU
5. Remove the replacement PSU from its antistatic packaging,
and verify that there is no visible damage to it.
Page 1 of 2
