RUCKUS SmartZone 300
Spare Hard Disk Drive Quick
Setup Guide
This Quick Setup Guide provides basic instructions for ordering
and installing a spare hard disk drive (HDD) into the Ruckus
SmartZone 300 (SZ300) controller.
For information on advanced configuration and management
options, see the Getting Started Guide and other appropriate
documents, which are available for download from the Ruckus
Support website:
https://support.ruckuswireless.com/documents.
This Guide in Other Languages
请从以下网站获得该指南的简体中文版
https://
support.ruckuswireless.com.
Vous trouverez la version française de ce guide à l'adresse
suivante https://support.ruckuswireless.com.
このガイドの日本語版は
https://support.ruckuswireless.com
でご覧ください。
이 가이드의 한국어 버전은 웹 사이트
(https://
support.ruckuswireless.com) 에서 확인하시기 바랍니다.
Veja a versão em português (Brasil) deste guia em
support.ruckuswireless.com.
Puede ver la versión en español (América Latina) de esta guía en
https://support.ruckuswireless.com.
Hard Disk Drive Ordering Information
To order a spare hard disk drive for the SmartZone 300 controller,
contact Ruckus Support.
For information on how to contact Ruckus Support, visit
support.ruckuswireless.com/contact-us. When asked for the part
number, provide the information in the following table.
Part Number Description
902-S350-0000 Kit, Spare (FRU), hard disk drive, SZ300
Copyright © 2021 CommScope, Inc. All rights reserved.
Published December 2021, Part Number 800-72227-001 Rev E
Opening the Front Bezel
The front bezel helps prevent accidental access to the controller's
modules. Before you can install a module, you must open the
front bezel.
NOTE: If the controller is mounted in a rack with adjacent units
below the unit where a module needs to be serviced, Ruckus
recommends extracting the controller from the rack
approximately 5cm (2 in.). This will provide clearance of the
bezel when rotated out towards you.
Follow these steps to open the front bezel.
1. With the controller in front of you, place your fingers on both
sides of the front bezel.
2. Pull the bezel toward you until it opens.
3. Gently lower the bezel to expose the controller's replaceable
modules.

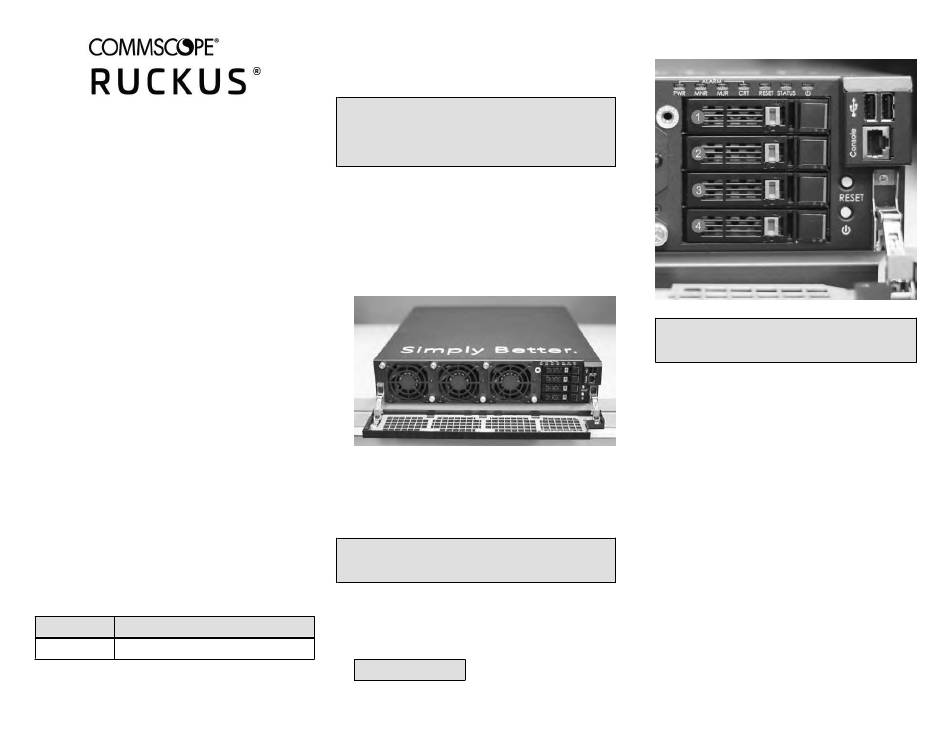

FIGURE 1 Controller with the front bezel open
https://
Installing a Spare Hard Disk Drive
After you have obtained a spare hard disk drive and opened the
front bezel of the SmartZone 300 controller, you are ready to
install the drive.
NOTE: Both hard disk drives (HDDs) are redundant and hot-
swappable. You do not need to power off the controller to
https:// swap a single failed HDD.
Follow these steps to install the hard disk drive.
1. On the front panel, identify the HDD that you want to
replace. From the top of the front panel, disk tray 1 is for a
solid state drive (SSD), and disk trays 2 and 3 are for HDDs
(see the following figure).
NOTE: Tray 4 is unused.
FIGURE 2 Disk trays on the front panel of the controller
NOTE: If you are replacing a failed disk, check the LED of
each tray. A red or amber LED indicates that the disk is not
operational.
2. Unlock the disk tray by moving the orange disk tray lock to
the left (unlock) position.
3. Press the black/blue tray button to open the tray handle.
4. Hold the tray handle, and firmly pull it toward you until the
disk tray, along with the HDD, comes out of the chassis
completely. Put the disk tray assembly aside.
5. Unpack the replacement HDD. The replacement HDD comes
assembled with its own disk tray.
6. Insert the disk tray (with the replacement HDD) into the disk
bay until the drive locks in the connector on the SAS
backplane.
7. Close the handle, and lock the tray by moving the orange disk
tray lock to the right (lock) position.
8. Verify that the new drive's status LED flashes green. This
indicates that the controller is rebuilding the RAID array.
When the controller completes rebuilding the RAID array, the
drive's status LED shows solid green.
You have completed replacing a spare HDD in the SmartZone 300
controller.
