U P
C
ASME A112.18.1 / CSA B125.1
Models/Modelos/Modèles
468-SD-DST, 16926-SD-DST,
16927-SD-DST, 16928-SD-DST,
16929-SD-DST & 16997-SD-DST
Series/Series/Seria
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
WARNING: THIS FAUCET IS NOT TO BE USED WITH PORTABLE
DISHWASHERS! / ADVERTENCIA: ¡SESTA LLAVE NO SE DEBE UTILIZAR
CON MAQUINAS LAVAPLATOS PORTATILES! / AVERTISSEMENT: ON NE
DOIT PAS BRANCHER UN LAVE-VAISSELE PORTATIF SUR CE ROBINET!
MEETS OR EXCEEDS — ASME A112.18.1 / CSA B125.1
ALCANZA O EXCEDE LAS SIGIENTES NORMAS —
ASME A112.18.1 / CSA B125.1
LE ROBINET EST CONFORME OU SUPèRIEUR AUX EXIGENCES DES
NORMES SUIVANTES: ASME A112.18.1 / CSA B125.1
For easy installation of your Delta
faucet you will need:
• To READ ALL the instructions completely
before beginning.
• To READ ALL warnings, care, and maintenance
information.
Para instalación fácil de su llave Delta
usted necesitará:
• LEER TODAS las instrucciones completamente
antes de empezar.
• LEER TODOS los avisos, cuidados, e
información de mantenimiento.
Pour installer votre robinet Delta
facilement, vous devez:
• LIRE TOUTES les instructions avant de débuter;
• LIRE TOUS les avertissements ainsi que toutes
les instructions de nettoyage et d'entretien.
60930
®

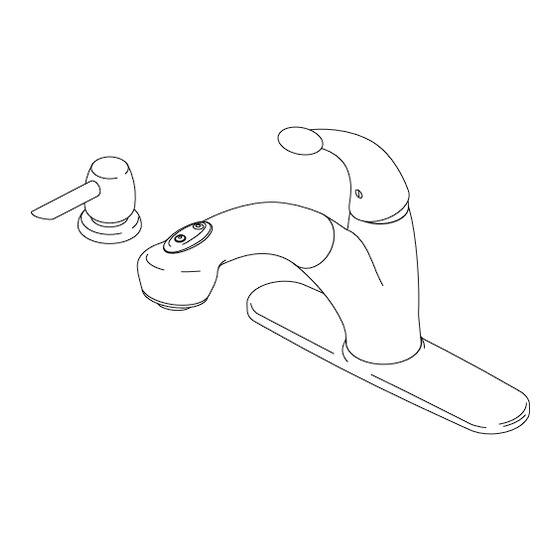

SINGLE HANDLE PULLOUT TALBOTT
LEWISTON
, CICERO
®
LLAVES EXTRAÍBLES DE AGUA PARA COCINAS TALBOTT
DEBONAIR
, LEWISTON
®
ROBINETS À UNE MANETTE À BEC-DOUCHETTE
RÉTRACTABLE TALBOTT
CICERO
, ET UPTOWN
®
You may need/Usted puede necesitar/
Articles dont vous pouvez avoir besoin:
T E FLO N
60930
1
, DEBONAIR
™
, AND UPTOWN
KITCHEN FAUCETS
®
®
, CICERO
, Y UPTOWN
®
®
, DEBONAIR
, LEWISTON
™
®
POUR ÉVIERS DE CUISINE
®
1/8"
,
®
,
™
®
,
®
11/18/10
Rev. F
Advertisement
Table of Contents
Related Manuals for Delta TALBOTT
Summary of Contents for Delta TALBOTT
- Page 1 ™ ® 60930 LEWISTON , CICERO , AND UPTOWN KITCHEN FAUCETS ® ® ® LLAVES EXTRAÍBLES DE AGUA PARA COCINAS TALBOTT ™ DEBONAIR , LEWISTON , CICERO , Y UPTOWN ® ® ® ® ROBINETS À UNE MANETTE À BEC-DOUCHETTE RÉTRACTABLE TALBOTT...
- Page 2 IS THE EXCLUSIVE WARRANTY BY DELTA FAUCET COMPANY, WHICH DOES NOT MAKE ANY OTHER WARRANTY OF ANY KIND, INCLUDING THE IMPLIED WARRANTY Delta will replace, FREE OF CHARGE, during the warranty period, any part or finish that proves OF MERCHANTABILITY.
-
Page 3: Faucet Installation
Faucet Installation Faucet Installation DECK MOUNT STYLE CENTER MOUNT STYLE Install round escutcheon (1) Secure to sink with mounting Place baseplate shanks (1) through Secure faucet to sink with mounting mounting holes in deck. Option: If sink is onto faucet (2). Insert faucet nut and washer (1). -
Page 4: Hose Installation
Hose Installation Pass hose (1) through faucet (2). Thread wand Push hose end (1) onto faucet outlet (2). Attach clip (3) over hose and outlet as shown. Pull down assembly (3) onto hose (1) to prevent it from becoming moderately to ensure connection has been made. lodged in faucet when installing weight (4). - Page 5 Loop tubing created. Delta is not responsible for tubing that is l Tubing is cut too short: buy a coupling union and a (2) if it is too long. Note: Recommended tubing...
- Page 6 Correct method Incorrect Installation Instalación Incorrecta Método Correcto Installation Incorrecte Bonne méthode Do not install sleeve Ensure cut is straight. upside down. No instale la manga Asegúrese que el corte Custom Fit Connections - Plastic Sleeve Installation Instructions boca abajo. esté...
- Page 7 Soap Dispenser Installation Turn on hot and cold water supplies Reinstall the spray wand. Check all Remove nut (1). Separate head (2) from body (3). Insert body (3) (1). Pull the hose assembly (2) out connections at arrows for leaks. and gasket (4) through selected hole in sink.
- Page 8 Setting The Handle Limit Stop (Optional) because it limits the amount of hot water in the mix; however, this handle limit stop This faucet includes an integrated handle limit stop that has two positions. Position will not always prevent scalding because it does not compensate for incoming 1, to the left, allows full handle motion (the full range between “all cold”...
-
Page 9: Maintenance
For All Models Para todos los modelos 1/8" Pour tous les modèles RP63263 Adapters 3/8"-24 UNEF to 1/2"-20 UN & 3/8"-24 UNEF to 1/2"-14 NPSM Adaptadors 3/8”-24 UNEF a 1/2”-20 UN & 3/8”-24 UNEF a 1/2”-14 NPSM Adapteurs 3/8 po-24 UNEF à 1/2 po-20 UN et 3/8 po-24 UNEF à... - Page 10 60930 Rev. F...
- Page 11 60930 Rev. F...
- Page 12 60930 Rev. F...
