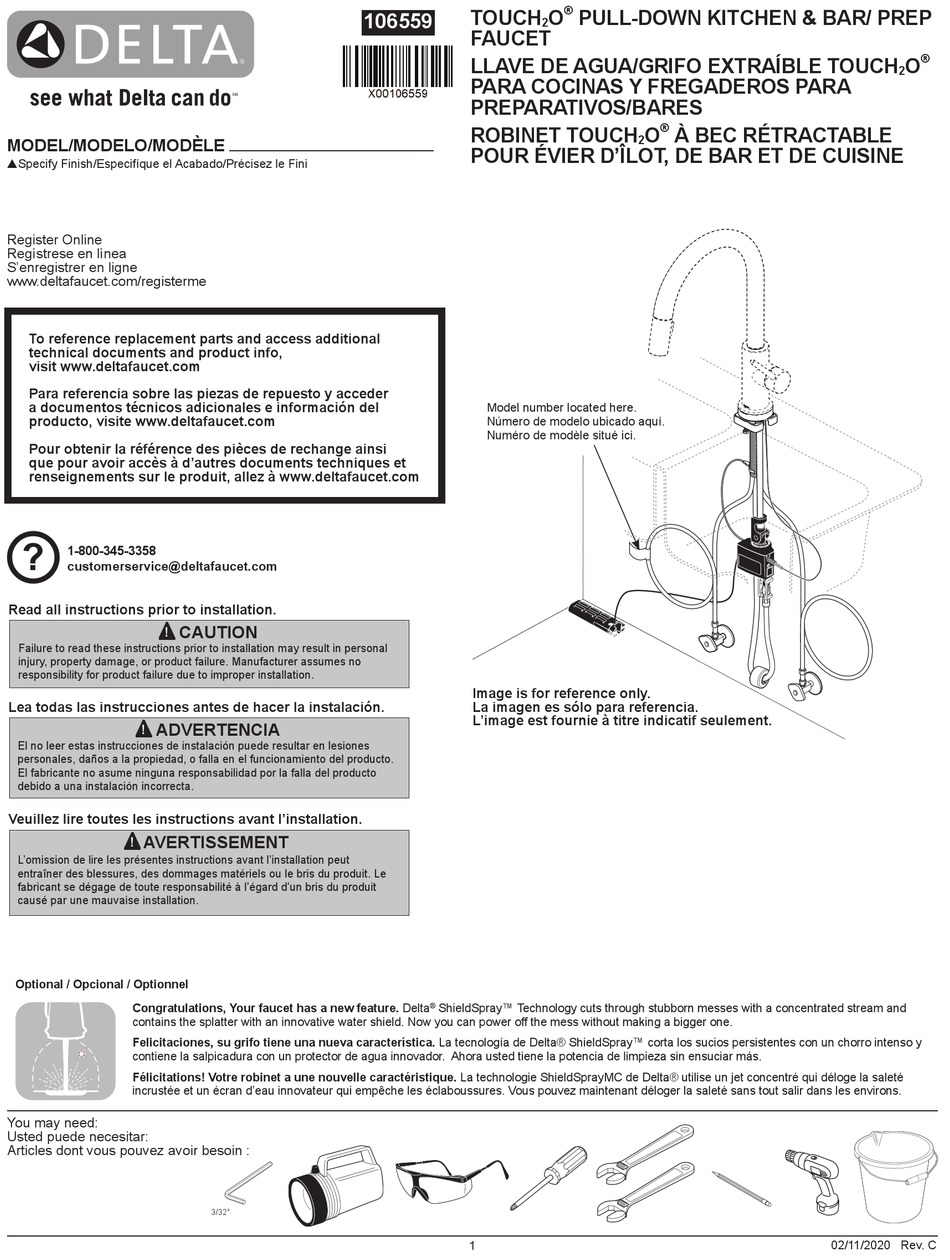

Delta TOUCH2O Series Manual
  1. Manuals
  2. Brands
  3. Delta Manuals
  4. Plumbing Product
  5. TOUCH2O Series
  6. Manual

Delta TOUCH2O Series Manual

Pull-down kitchen & bar/ prep faucet
