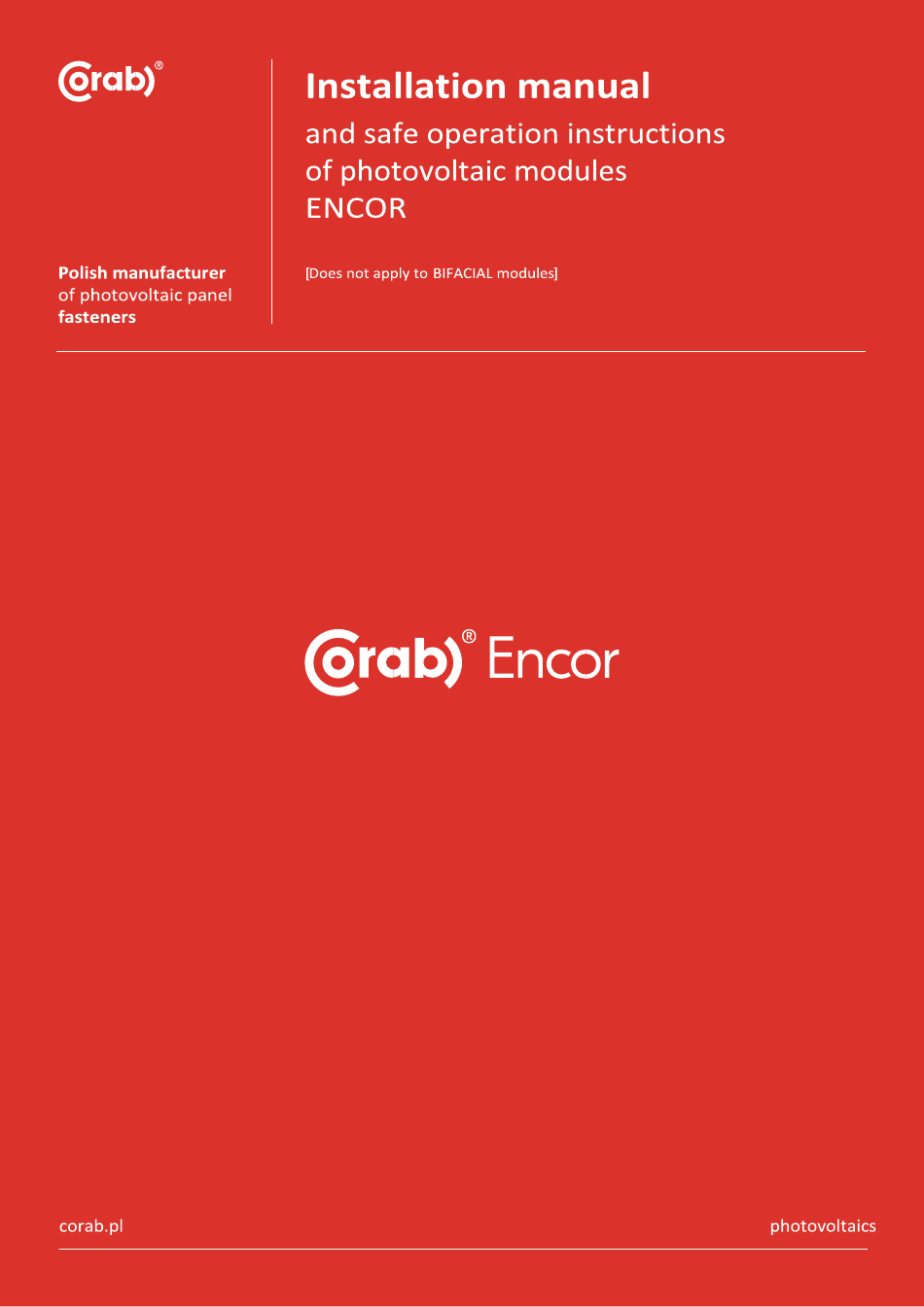

- Page 2 ■ The electrical characteristics are within ±3 percent of installation and safe operation instructions of ENCOR the indicated values of Isc, Voc and Pmax under standard photovoltaic modules (hereinafter referred to as test conditions: irradiance of 1000 W/m², AM 1.5 “Module”).
- Page 3 Installation manual and safe operation instructions of photovoltaic modules ENCOR [ Does not apply to BIFACIAL modules] ■ Work only under dry conditions, and use only dry tools. ■ Only use same connectors to connect modules to form a Do not handle modules under wet conditions unless string, or connect to another device.
- Page 4 Always use tested and certified mounting structures year. approved for a given system design. It is recommended to use structures or parts manufactured by Corab S.A. ■ In the northern hemisphere, the module is ■ Ensure that the module installation method and bracket recommended to face south, while in the southern hemisphere, the module is recommended to face north.
- Page 5 Installation manual and safe operation instructions of photovoltaic modules ENCOR [ Does not apply to BIFACIAL modules] ■ The following recommendations must be observed avoid shadowing effects from the module clamps. The during installation: mounting details are shown in the following figures.
- Page 6 Installation manual and safe operation instructions of photovoltaic modules ENCOR [ Does not apply to BIFACIAL modules] Mounting of modules EC 370M-6-120FB 370Wp and EC 375M-6-120B 375Wp Clamp position / Test load: positive pressure 2400 Pa/negative pressure 2400 Pa Test load: positive pressure 5400 Pa/ negative pressure 2400 Pa...
- Page 7 Installation manual and safe operation instructions of photovoltaic modules ENCOR [ Does not apply to BIFACIAL modules] Mounting of modules EC 395M-10-108FB 395Wp and EC 405M-10-108B 405Wp Clamp position / Test load: positive pressure 5400 Pa/ negative pressure 2400 Pa...
- Page 8 Installation manual and safe operation instructions of photovoltaic modules ENCOR [ Does not apply to BIFACIAL modules] Electrical installation increase in the number of modules in the array. A too low ■ To avoid galvanic corrosion, all components used must Riso can results in inverter faults.
- Page 9 Installation manual and safe operation instructions of photovoltaic modules ENCOR [ Does not apply to BIFACIAL modules] Photovoltaic modules can be grounded using accessories ■ Never use chemicals when cleaning modules as this may manufactured by another company, provided that they are certified for grounding the modules and installed in affect the module warranty and energy output.
