Summary of Contents for Minimotors DUALTRON X-LIMITED

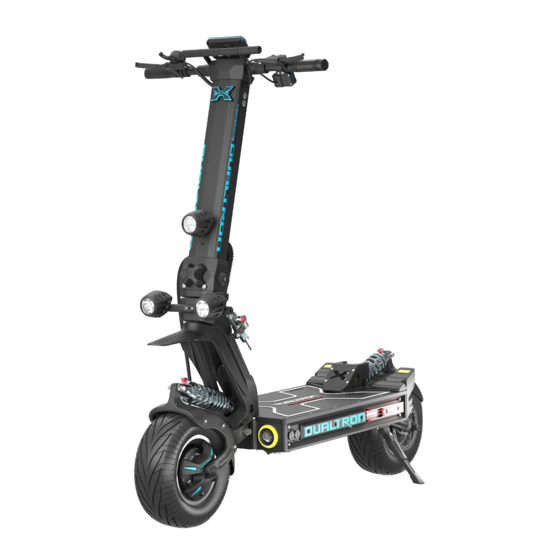

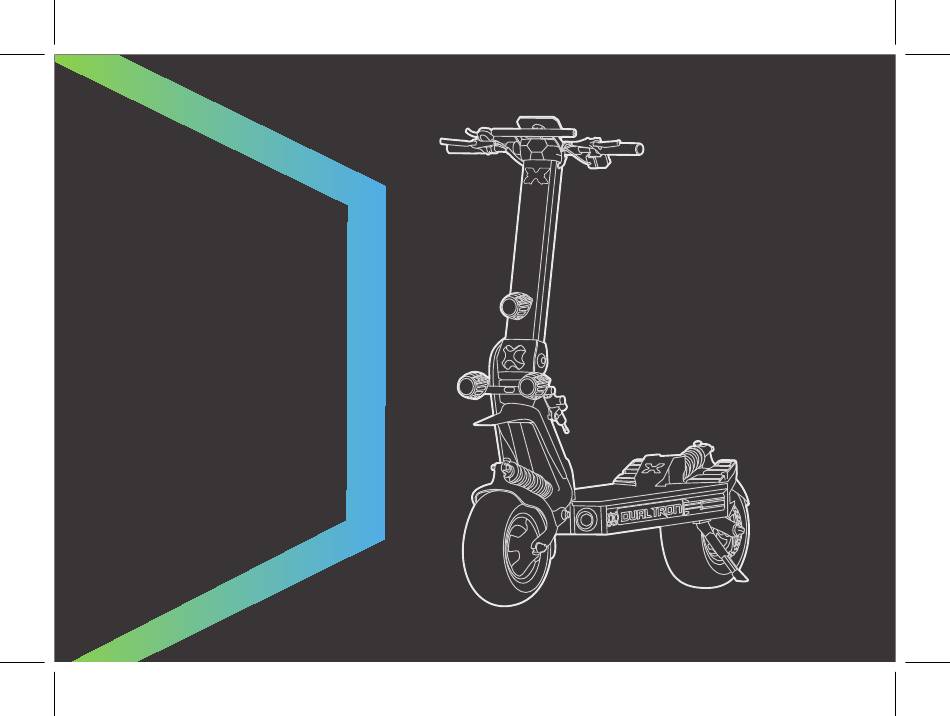

- Page 1 X-limited Personal Mobility PRODUCT MANUAL...
- Page 2 The pictures shown are for illustration purposes only. Actual product may vary.
-
Page 4: Diagram And Functions
Diagram And Functions Handlebar Functions Dashboard Accelerator Lampholder Front brake lever Rear brake lever Logo LED Multi switch USB port Power switch (sub battery) Running headlight switch Multi switch voltage Accelerator Headlight Side LED Name Function Operation method Damper Folding knob Rear turn signal Running headlight ON/OFF... -
Page 5: Specifications
Specifications Item Parameter Model DUALTRON X LIMITED Length × Width × Height 1450x648x1400mm Product Folded: Length × Width × Height 1450x358x775mm Net Weight 82.9kg Max. load 150kg Rider Recommended Age 14–60 years old Wheelbase Approx.1100mm Ground Clearance Approx.190mm Drive System Two-wheel drive Max. - Page 6 Specifications Duration of Charging Approx. 15 h(main battery) Approx. 4 h(sub battery) Battery Capacity 84V60Ah 11V20Ah Battery Charging Ambient Temperature 0 to 40°C (Battery temperature exceeds 55°C,BMS start protection program..) Battery Management System Over-heating, short circuit, over-current, over-discharge and over-charge protection Motor Type BLDC Hub Motor Motor...
-
Page 7: Packing List
Packing List Accessories M6 Screw x 4 M8 Screw x 2 M6 Elastic Gasket x 4 Main battery charger x1 M8 Elastic Gasket x 2 sub battery charger x1 M6 Flat Gasket x 4 Multitool x 1 Directional Damper x 1 Screw Cap x 4 Manual... - Page 8 Assembly ① Unfold the steering tube and lock the folding knob firmly. ③Install the screws for headlight/damper with the included multitool or An M6 Allen key. ② Install the two M8 screws with the multitool. （Folding knob may break and then fall down.The screws are very necessary.） DO NOT use an electric screwdriver!
-
Page 9: Damper Adjustment
Damper Adjustment Assembly Adjustment Knob Adjustment Knob Unfold the handlebars,slide the folding handle lock into position to Turn the adjustment knob to the right to increase the shock rebound resistance. fix the handle firmly. During use, if the handle is slightly shaken, Turn the adjustment knob to the left to decrease the shock rebound resistance. -
Page 10: Bluetooth Connection
Bluetooth Connection APP Download Guide Android iphone 1.Scan the QR code to download the APP. 1.Search "DUALTRON" in the application and download it, and register / log in. 2.Choose the mobile phone system that suits you to install,and register / log in. Dualtron Search vehicle sure... -
Page 11: How To Ride
How to Ride Power on the scooter and choose the Stand on the footboard with one foot Put both feet on the footboard and stand stably. Pull the speed mode. * Please choose the speed and push off with the other foot to start throttle to speed up. - Page 12 Folding Unscrew the folding knob and M8 screws, then fold the Fold the handlebars,slide the folding handle lock out of steeing tube. Risk of pinching! position to release handles. Lift up the bottom of the front fork and rear foot pedestal to Install back the folding knob prevent loss.
