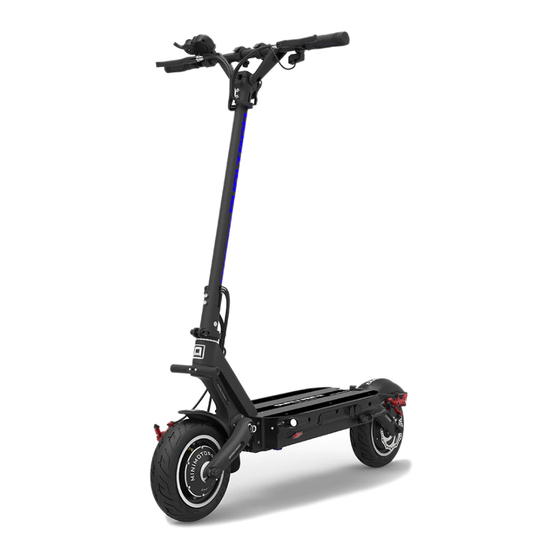

Page 1: User Manual

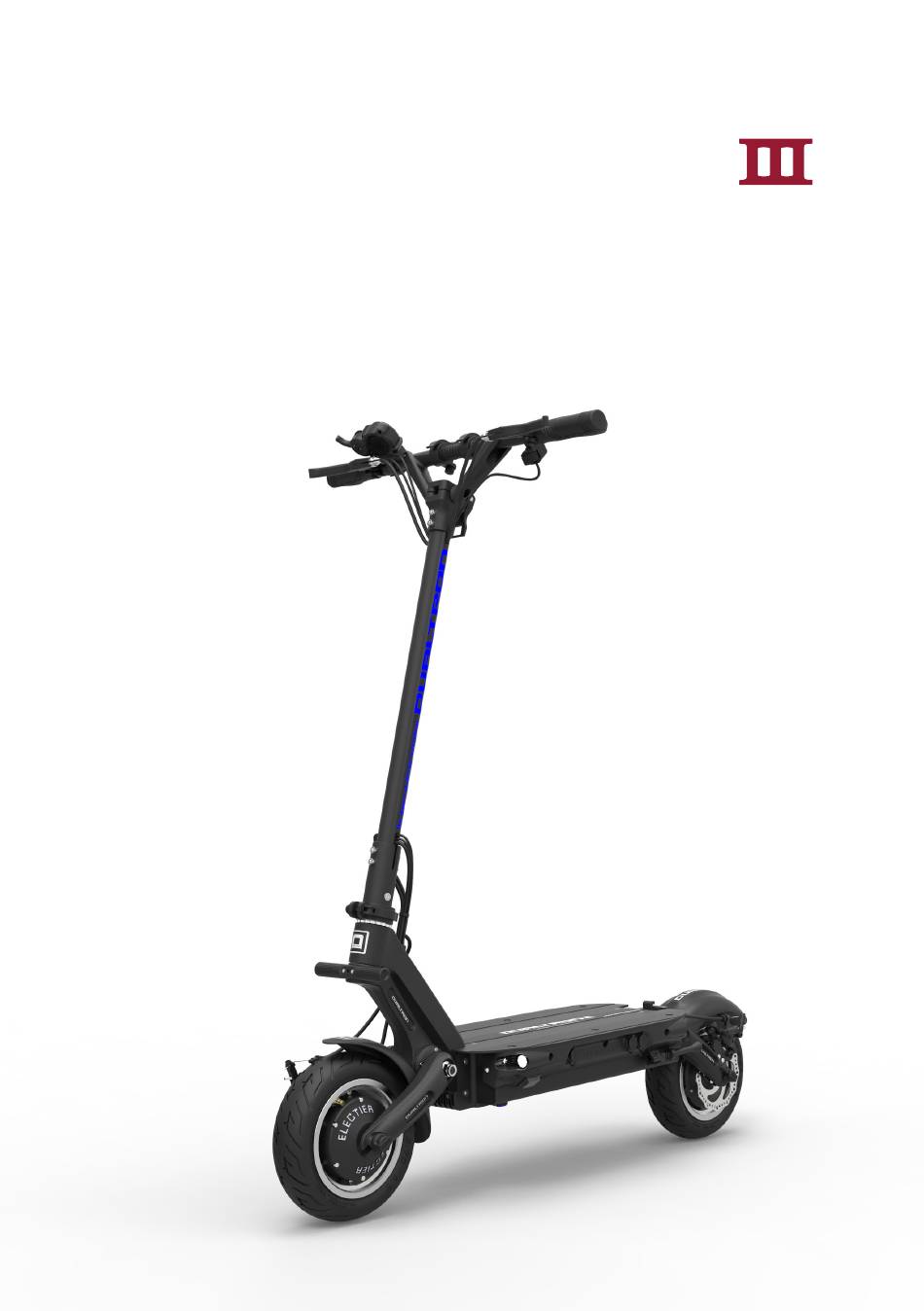

DUALTRON The dream of electric technology PERSONAL MOBILITY User Manual... - Page 2 1999 to the present and making a product that is loved by people in the world. Minimotors Co. LTD., Is doing its best to become the world best 04. Product components ····························································································...
-
Page 3: Safety Guidelines And Restrictions
Novice Elderly Slow mode is recommended Slow mode is recommended Before Reading Manual DUALTRON Comply with Caution Please read this manual carefully the related laws Novice Elderly before using this product Slow mode is recommended 10. Do not drive on steep slopes 1) Safety guidelines and restrictions Acceptable gradeabilityis different for each product. -
Page 4: Product Structure
Product structure Name of each part DUALTRON Handle Electric wiring diagram EYE throttle LCD Index finder Handlebar fixing instrument panel throttle(Accellerator) DUALTRON 3 WIRING DIAGRAM QR lever Brake lever Green Green Motor Brake lever Yellow ECO/Turbo Single/Dual Yellow Front (+Electronic brake) Switch Switch Blue... -
Page 5: Product Components
Product components How to use the product DUALTRON 1) Productun folding LED Remote Finishing screw control Main body QR lever Basic tool Charger Locking slide Checking the components inside of the box 1. Raise the handle post(Steering tube) 2. Locking the folding parts Top : Default battery charger(1.7A), Default tool, User manual, Remote control Release the QR lever, raise the locking Tighten the finishing screw properly to... - Page 6 How to use a product DUALTRON 2) How to start 3) How to stop Step1 Step2 Rear brake use Front brake use Be sure to use the rear brake first for Always use the front and rear brake decelerating when stopping while driving. levers together to stop smoothly and For safe stop, it is necessary to practice slow safely after decelerating with the rear...
-
Page 7: How To Use The Instrument Panel
(User adjust) 2(MID SAVE) TIME 3(NO SAVE) 00 : 00 Km/h mode button TIME Driving time 00 : 00 MINIMOTORS TIME Electronic brake power LCD brightness control Auto off time setting ABS setting 0(Off)~5(Powerful) 0(Back light off)~5(Brightest) 1~30 minutes 0(OFF), 1(ON) -
Page 8: Led Bar Funtions
①②③④ ⑤ ①②③④ ⑤ ①②③④ ⑤ 00 : 00 [ M ] [ M ] [ M ] ⑥ ⑥ ⑥ Km/h Km/h Km/h Km/h Km/h Km/h How to use the instrument panel LED BAR funtions TRIP ODO DST TIME CHA Mp/h Mp/h Mp/h... - Page 9 How to use a charger correctly Safety precautions for Lithium battery DUALTRON 1. Care Lithium batteries should be protected from direct exposure to children and pets. Auxiliary battery 1) Basic charging method 2. Performance ① Lithium battery is affected by external temperature. In winter, when connection port Charging port the temperature is low, the performance of the battery is temporarily deteriorated and...
-
Page 10: Safety Guidelines Before Driving
Safety guidelines before driving Maintenance DUALTRON 2) Maintenance and self-maintenance 1) Required checking before use CHECK LIST Electric products can be damaged by various factors. The life span of each part 1. Check throttle and handle varies depending on driving habits and driving environment. Parts that exceed the •... -
Page 11: Important Notice
Important notice DUALTRON Important notice 3. Causes and countermeasures of disc brake noise * Metal vibration may occur due to motor vibration, vibration of the brake disc and pad The disc braking method uses a disc brake method with many during the load section that accelerates during driving. -
Page 12: Product Specification
Product Specification Memo DUALTRON MEMO Product Name DUALTRON3 Note Motor MAX 3600W BLDC DUAL HUB MOTOR Battery type Li-Ion battery pack Battery capacity 59.2V 28Ah 1658Wh Charging time (1.7A) 16hr+ When using standard charger(1.7A) Charging time (3.4A) 8hr+ When using 2EA of standard charger(1.7A) Charging time (6.5A) 4.3hr+ When using quick charger(6.5A, Optional) - Page 13 DUALTRON 3 Electric Scooter User Manual...
