Summary of Contents for Minimotors Dualtron Victor limited

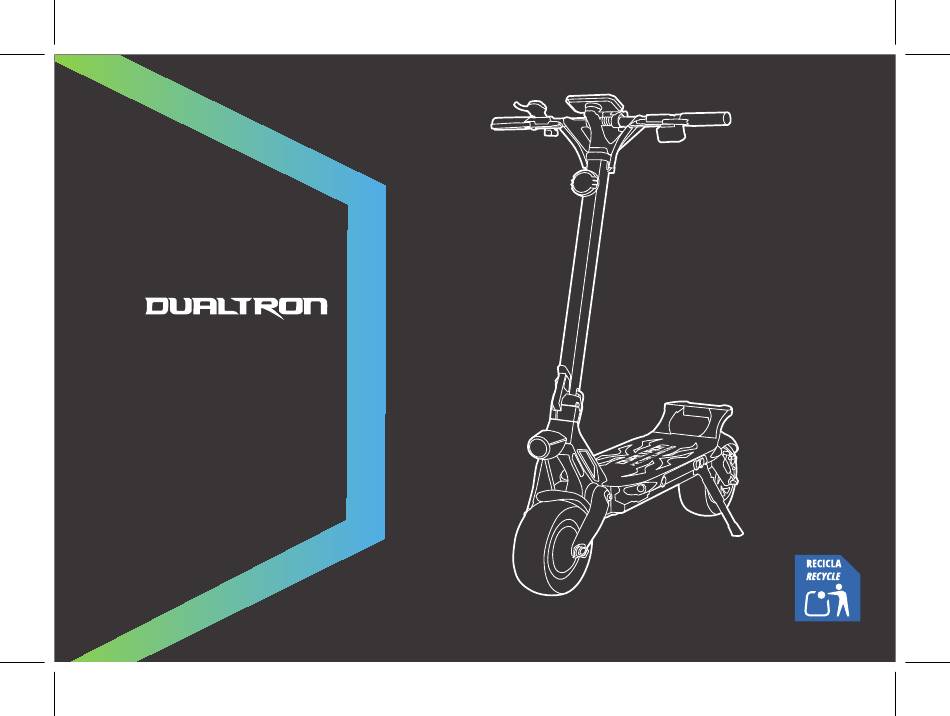

- Page 1 victor limited Personal Mobility PRODUCT MANUAL...
- Page 2 The pictures shown are for illustration purposes only. Actual product may vary.
-
Page 4: Diagram And Functions
Diagram And Functions EY4 display Accelerator Front brake lever Rear brake lever Handle post(Steering tube) Horn Name Function Operation method ON/OFF Rubber deck Locking slide Spoiler/Footrest with light Rear fender Running headlight Rear brake Front suspension Front fender Disc Kick stand Front motor Turn signal 10inch wide... -
Page 5: Specifications
Specifications Item Parameter Product Model Dualtron Victor limited Battery Capacity 60V28Ah CN / 60V35Ah Samsung Range 90km / 110km Battery Charging Ambient Temperature 0 to 40°C (Battery temperature exceeds 55°C,BMS start protection program.) Battery Management System Over-heating, short circuit, over-current, over-discharge and over-charge protection Max. - Page 6 Specifications Nutt Hydraulic Brake Machine Brake Brake ABS&EBS (Indicating the battery temperature exceeds 55°C,BMS start protection program,ABS/EBS fails.） Electric Brake 100-120V/200-240V~ Input Voltage Charger 66.4V 1.7A Max. Output Voltage 10x3.0-6.5 tubeless tire Type 50 psi Tire Tire Pressure Rubber Material F&R suspension cartridge（replaceable）...
-
Page 7: Packing List
Packing List Accessories Battery charger x1 Multitool x 1 Manual... - Page 8 Assembly Folding latch ① Raise the steering tube and make sure the folding latch gets into the button correctly. ② Press down the quick release lever firmly to make sure the (Carefully,if the folding latch gets into the button incorrectly,the steering tube will fall folding mechanism is tightened.
-
Page 9: Bluetooth Connection
Bluetooth Connection APP Download Guide Android iphone 1.Scan the QR code to download the APP. 1.Search "DUALTRON" in the application and download it, and register / log in. 2.Choose the mobile phone system that suits you to install,and register / log in. Dualtron Search vehicle sure... -
Page 10: How To Ride
How to Ride Power on the scooter and choose the Put both feet on the footboard and stand stably. Stand on the footboard with one foot speed mode. * Please choose the speed and push off with the other foot to start Pull the throttle to speed up. - Page 11 Folding Safety button Fold the handlebars,slide the folding handle lock out of position to release Slide the safety button up and open the quick release lever. handles. Press the both folding latches, and then fold the steering tube. When Lock the handlebar hook to the footrest. pressing the safety latch, you must hlod the steering tube with your hand to Ensure that lock the handlebar when lift scooter) prevent falling down and hitting.)
