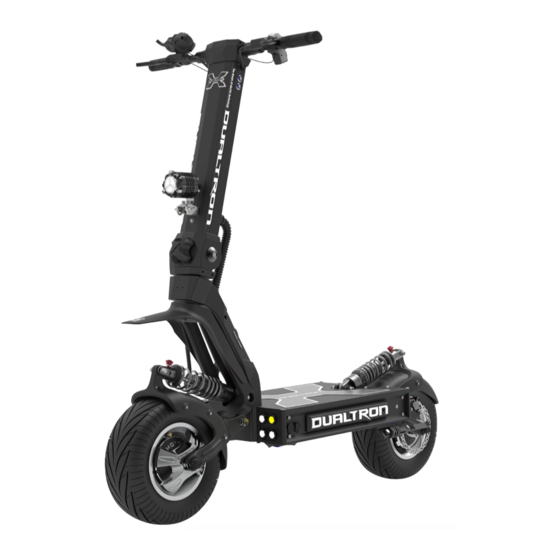

PERSONAL MOBILITY
User Manual
This product is always two-wheel drive.
※

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DUALTRON X Series and is the answer not in the manual?

Questions and answers

Related Manuals for Minimotors DUALTRON X Series

Summary of Contents for Minimotors DUALTRON X Series

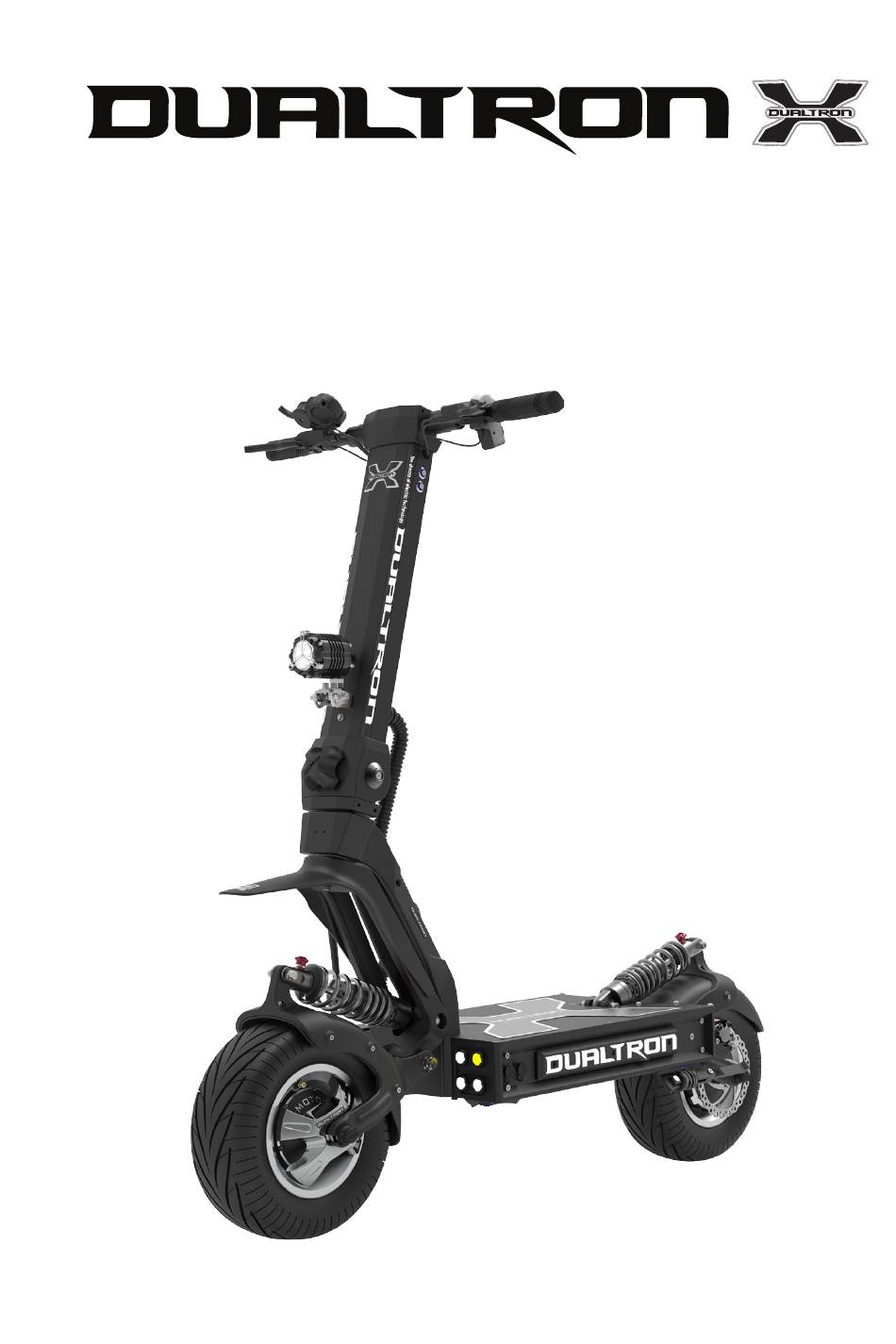

  • Page 1 PERSONAL MOBILITY User Manual This product is always two-wheel drive. ※...
  • Page 2 - You can easily purchase Minimotors Smart Electric Insurance. (Mertiz Fire) - You can see the information of Minimotors products at a glance. (from electric kick board to other products) - You can check the location of the branch with the Minimotors national branch information guide. (Nationwide branch office guidance and search for the nearest branch through linking with my location) - You can easily view news events as announcements.

  • Page 3: Table Of Contents

    Dualtron X user manual contents Safety guidelines and restrictions ....product structure ......Name of each prat .

  • Page 4: Safety Guidelines And Restrictions

    Safety guideline 관계법 준수 Caution Please read this manual carefully before 초보자 여성/노약자 using this product 고속모드(L3) 사용금지  General safety guideline ※ Even if the it is within the warranty period, you may be liable for any accident caused by any of the following causes. Be careful of water! This product and components are not waterproof.
  • Page 5 초보자 여성/노약자 고속모드(L3) 사용금지 고속모드(L3) 사용금지 Do not drive on steep slopes Acceptable gradeabilityis different for each product. Excessive hill roads exceeding the specification may cause damage to the product(parts) due to temperature cut, overcurrent or low voltage cut, which may cause the product to malfunction. 관계법...

  • Page 6: Product Structure

    Product structure Electrical wiring diagram Product size Unfolded Folded Handle width 632mm Footrest width 350mm 1214mm 780mm 1305mm 1305mm Errors may occur depending on the measurement method. Dualtron X User Manual...

  • Page 7: Name Of Each Prat

    Name of each part Handle Main battery Index finger Eye throttle LDC Brake lever volt meter throttle instrument panel (+Electronic brake) (GrREEN) (Accellerator) Handle grip Brake lever ( Handle) (+Electronic brake) Brackets Sub battery Front high power volt meter LED operation switch (BLUE) Emergency light Turn signal light...

  • Page 8: Product Components

    Product components Checking the components inside of the box Main body, Slow battery charger for 60V (1.75A) 1EA, Default tool, Swing arm fender, User manual Ejecting Assembly of instrument panel and brake the product Caution The chassis of this product is securely fixed on a steel frame inside the box.

  • Page 9: How To Use The Product

    How to use the product Production folding  Folding knob Raise the handle post (Steering tube) Locking the folding parts Release the folding knob and push the. Lock the folding knob to hold it firmly and handle post(steering tube) to the end. check for the looseness during use.
  • Page 10 How to use product How to start  LED lamp button Sub-battery power button Turning on the main switch Turn on the LED lamp Step1. Step2. When you turn on the product, press the POWER Press the sub-battery power button on the button on the LCD instrument panel for 2 right side of the steering tube to turn on the seconds.
  • Page 11 How to stop  Step1 Step2 Rear brake use Front brake use Be sure to use the rear brake first for Rapid braking using the front wheel brake while driving may risk overturning. When stopping, use the decelerating when stopping while driving. rear wheel brake first to reduce the speed, and then For safe stop, it is necessary to practice slow use the front wheel brake together to stop safely.

  • Page 12: How To Use The Instrument Panel

    How to use the instrument panel Caution Speed Speed step Power button Speed unit Km/h Accelerator Battery balance index finger Blinks 3 times per 10 00 : 00 throttle seconds when the remaining TIME batter power is 10%. Km/h It blinks continuously when Mode button the remaining battery power 00 : 00...
  • Page 13 0(UNLOCK) ~ 5 (Powerful) ~ 5 (Brightest) 1(ON) 1(LOCK) MINIMOTORS PE function (Rear motor lock setting)  The rear motor lock function (throttle :PD) is not activated at the factory. Km/h How to active PE function (Rear motor lock setting) ■...
  • Page 14 ①②③④ ⑤ ①②③④ ⑤ ①②③④ ⑤ [ M ] [ M ] [ M ] ⑥ ⑥ ⑥ How to use the Km/h Km/h Km/h Km/h Km/h Km/h Mp/h Mp/h Mp/h instrument panel ⑦ ⑦ ⑦ 00 : 00 88888 00 : 00 88888 00 : 00...

  • Page 15: Product Feature Guide

    Product Feature Guide Self-diagnosis through Instrument panel  Fault type Diagnosis Solution System error ② ①②③④ ⑤ * If the error information [ M ] ⑥ appears, immediately stop Motor error ④ using the product and take the Km/h scooter to the service center ⑤...

  • Page 16: How To Use The Charger Correctly

    How to use a charger correctly 2P charging port (Handle 3P rapid charing port part 1EA, Right side of (Left side of body 2EA) Basic charging method  body 1EA) Open the chargingport cap and connect it to the connector of the charger and connect it to the household outlet.

  • Page 17: Safety Precautions For Lithium-Ion Battery

    Safety precautions for Lithium battery 1. Care Lithium batteries should be protected from direct exposure to children and pets. 2. Performance Lithium battery is affected by external temperature. In winter, when the ① temperature is low, the performance of the battery is temporarily deteriorated and the mileage and power output is reduced. Lithium battery has a characteristic that discharge performance is reduced by more ② than 15% when charging / discharging 300 times or more. If usage time is shortened due to long usage, it should be replaced with a genuine one through the nearest point. 3.

  • Page 18: Safety Guidelines Before Driving

    Safety guidelines before driving Required checking before use  1. Check throttle and handle • Operate the accelerator throttle lever about 2 ~ 3 times to check whether it returns to the home position. • Be careful that excessive throttle leaning and manipulation of the throttle can cause malfunction due to internal parts damage.

  • Page 19: Inspection And Maintenance

    Maintenance Maintenance and self-maintenance  CHECK LIST Electric products can be damaged by various factors. The life span of each part varies depending on driving habits and driving environment. Parts that exceed the service life may cause accidents. Let’s manage various parts and prevent safety accidents in advance.
  • Page 20 Maintenance Important notice • While driving, metal sounds from motor vibrations, tremors from brake discs and pads, etc., may occur in the accelerating load range (torsional vibration). (About 150~30Km, depends on the product) This is a phenomenon in which vibrations occur at a certain rpm of all rotating bodies (fans, cars, ships, etc.) that are not abnormal.
  • Page 21 3. Causes and countermeasures of disc brake noise The disc braking method uses a disc brake method with many electric kickboards because braking power is good. However, if you get a sharp hissing sound when you hold the disc brake, dust or sand particles on the ground will spill out on the surface of the disc, causing foreign substances to be on the brake pads or disc surface, or bending due to heat or external...

  • Page 22: Important Checklist

    * To prevent safety accidents, the following checks should be made before and during the use of the product. If the abnormal symptom are monitored or detected, stop using immediately and undergo a self-inspection or inspection by visiting your nearest Minimotors branch. After the abnormal symptoms have been resolved, the product can be used safely.
  • Page 23 Grip ■ • Use it after taking measures against play, such as turning or removing the handlebar. Brake cable ■ • Check for damage to wires at both ends of the lever and disc brake, external bending, oil leakage, and so on. •...

  • Page 24: Product Specification Table

    Product Specification Product Model Eletronic kick-board DUALTRON X H35E Name name Motor MAX 6720W BLDC DUAL HUB MOTOR Li-Ion battery pack Battery type SAMSUNG SDI Battery capacity 60V 49Ah 2940Wh (main battery) Battery capacity 60V 3Ah 180Wh (sub battery) With slower charger for 60V (2P) Charging time (main battery) (sub battery)

  • Page 25: Essential Information For Buyer

    You must send it to your dealer. • Our minimotors take 2 to 4 days from the date of order and delivery may be delayed due to congestion. | Customer consultation | •...

  • Page 26: Product Warranty

    품질 보증서 product warranty www.minimotors.co.kr Minimotors Co. LTD. This product is inspected at the manufacturing factory and sales branch before sale and finally shipped. Please be aware that some initial defects and defects may occur from time to time due to the nature of the product before purchase. All repairs for initial defect or defect found after using the product are provided within the free warranty period.

  • Page 27: Nationwide Service Center

    010-9447-1060 / 061-723-1060 순천지점 강원지역 010-9174-5714 원주지점 제주지역 010-3639-4548 / 064-744-0289 제주지점 * 미니모터스의 전국 지점은 판매와 A/S를 동시에 지원합니다. 지점 방문 시 반드시 유선 연락 또는 본사 홈페이지 (www.minimotors.co.kr/ 전국 지점 안내)에서 위치를 확인하신 후 방문하시기 바랍니다. Dualtron X User Manual...
  • Page 28 · 주소 : 경기도 파주시 탄현면 축현산단로 88-12 · 사용연령 : 18세 이상 · 최대하중 : 120kg B321H003-19001 1666-8596 고객 센터 kakaotalk Yellow ID : @미니모터스 상담가능 시간 : AM 10:00~PM 6:00 (토, 일 공휴일은 제외/PM 12:00~1:00 점심시간) Since 1999 www.minimotors.co.kr...

This manual is also suitable for:

Dualtron x h35e
