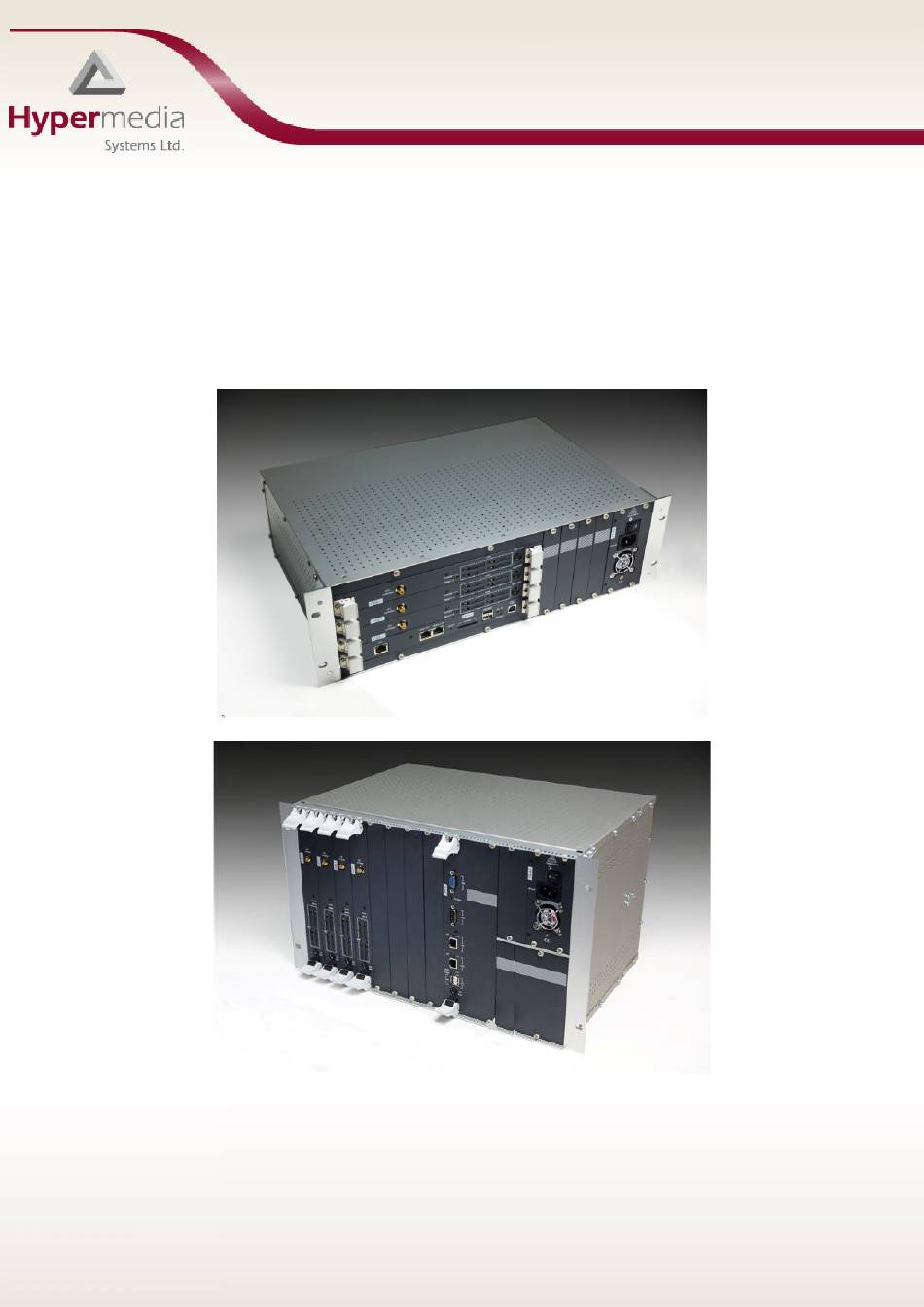

- Page 1 Hypermedia HG-7000 Product Manual 3U and 6U SMS PRO Gateways...
- Page 2 Information in this document is subject to change without notice. Trademarks and Software Information Hypermedia ® and the Hypermedia logo design are registered trade- marks of Hypermedia, Inc. in the United States and various other coun- tries. All other trademarks are the property of their respective owners. Software Protection As between the parties, Hypermedia Systems, Ltd.
- Page 3 Hypermedia Systems Ltd. shall, at its sole discretion, either repair the PRODUCT or replace it with a product of the same functionally. Replacement products may be refurbished or contain refurbished materials. If Hypermedia Sys- tems Ltd.
- Page 4 52.227-19, as applicable. AMENDMENTS. Hypermedia Systems Ltd. may amend these terms and conditions at any time by posting a notice on one or more of its websites. Your continued use of the PRODUCT shall constitute your acceptance of such amended terms.
-
Page 5: Table Of Contents
Table of Contents Hardware and Installation................1 Overview ..........................2 Contents of Package ...................... 2 Safety Information......................... 3 System Components......................4 Installation..........................6 Pre-Installation Preparation ................... 6 Inserting the SIM Cards....................7 Inserting the SanDisk Card.................... 9 Powering Up and LEDs....................... 10 HMC Quick Start .................. - Page 6 PIN Codes ........................... 27 MSN Values ........................28 Reset ............................ 29 Information Screens ......................30 Module Info ......................... 30 Serial Numbers ......................30 Locks ........................... 31 SIM Select ........................... 32 SIM Counters ........................33 SIM Auto Manage....................... 34 Call Counter Steps....................... 36 CLI Blocking........................
- Page 7 ACR Rules ........................54 Modifying the Existing ACR Number List ..............56 Creating a New ACR Number List File ..............57 Counters ..........................59 Enabling Counters ....................... 59 Disabling Counters ...................... 60 Slave Managers ........................61 Adding a Slave Gateway to a Master Gateway ............61 Configuring a Slave to Display its SIM Cards on the Master ........
- Page 8 Changing the Routing Group of an Active SIM............84 Receiving Notification of Configuration Changes ............84 Sending an SMS ........................85 Sending Bulk SMS ......................90 Changing the Priority of Bulk Messages Already Sent ..........90 Deleting an Entire Bulk ....................91 Moving a Bulk or SMS Queued to the Master Queue..........
-
Page 9: Hardware And Installation
Chapter 1 HARDWARE and INSTALLATION Hardware and installation vary depending upon the features included with the Hypermedia Gateway system. Skip the sections that do not apply to your system. This section includes: • “Contents of Package” on page 2 •... -
Page 10: Overview
Corporate businesses and service providers can leverage their use of the SMS Pro Gateway (HG-7000) infrastructure via its advanced set of API interfaces. The SMS Pro Gateway also supports seamless integration of market standrds such as SMPP, SMTP, and HTTP. -
Page 11: Safety Information
Installation, service, and maintenance of the Hypermedia Gateway should be done by qualified technicians only. • Do not connect the Hypermedia Gateway to any power source other than the indicated nominal source. • The power supply cord must be connected to a socket with a valid ground. -
Page 12: System Components
The Hypermedia Gateway system consists of the components described below: • The Hypermedia Gateway unit is a 19" x 6U or 19" x 3U rack-mountable box that connects to the local PBX or network. The system enables any combination of connectivity between its PRI, BRI, VoIP, and cellular interfaces. - Page 13 • The Hypermedia Management Console (HMC) is used by the system administrator for remote configuration and monitoring of the Hypermedia Gateway system. It runs over TCP/IP and is accessed via a standard WEB browser. Table 1: Hypermedia Gateway Boards Board Name...
-
Page 14: Installation
• “Powering Up and LEDs” on page 10 Pre-Installation Preparation Install the Hypermedia Gateway in a 19” rack. Depending upon the phys- ical configuration, the unit requires a height of either 3U or 6U. In addi- tion, we recommend: •... -
Page 15: Inserting The Sim Cards
• WAN IP Address • Subnet Mask, and WAN Gateway Inserting the SIM Cards Insert the GSM SIM Cards. One SIM card should be used per each cellu- lar channel. Version 4.1 of the CG board does not have SIM drawers. Instead, the SIM port (pictured to the right) is spring loaded. - Page 16 Optionally, to use the CG board’s multi-SIM extender: Pull out the CG board. Multi-SIM Extender Figure 2: CG Card Multi-SIM Extender Slide back and pull up the SIM socket. Do not use force on the SIM sockets. Warning iii. Slide in the SIM cards. iv.
-
Page 17: Inserting The Sandisk Card
Inserting the SanDisk Card The Gateway saves Call Detail Records (CDRs) on a SanDisk (SD) flash memory card that is supplied by Hypermedia. Insert the SD card into the SD port in the HBD card. Figure 3: SanDisk Card and Port The SD port is spring-loaded. -
Page 18: Powering Up And Leds
Powering Up and LEDs Turn on the unit. The power panel is located at the top right corner of the system. Figure 4: Power Panel Redundant power supplies are optional. When installed, if one fails, or if you power up the system with just one power supply, an alarm will sound. To stop the alarm, press the Alarm Reset button at the top left of the panel. -
Page 19: Hmc Quick Start
HMC QUICK START Use the Hypermedia Management Console (HMC) to configure and monitor a Hypermedia Gateway from a remote location. Access to the Gateway is over TCP/IP using a standard version of Internet Explorer. The Hypermedia Management Console is customized to match the specific order. -
Page 20: Installation
Installation To install the Hypermedia Management Console program: Ensure that the computer matches the following minimum system require- ments: • Windows 2000, XP, or Vista • Internet Explorer 6 or 7 Ensure that you have access to the installation file. It is included with the Hypermedia Gateway CD-ROM.
