Summary of Contents for Aquatica Digital Maya

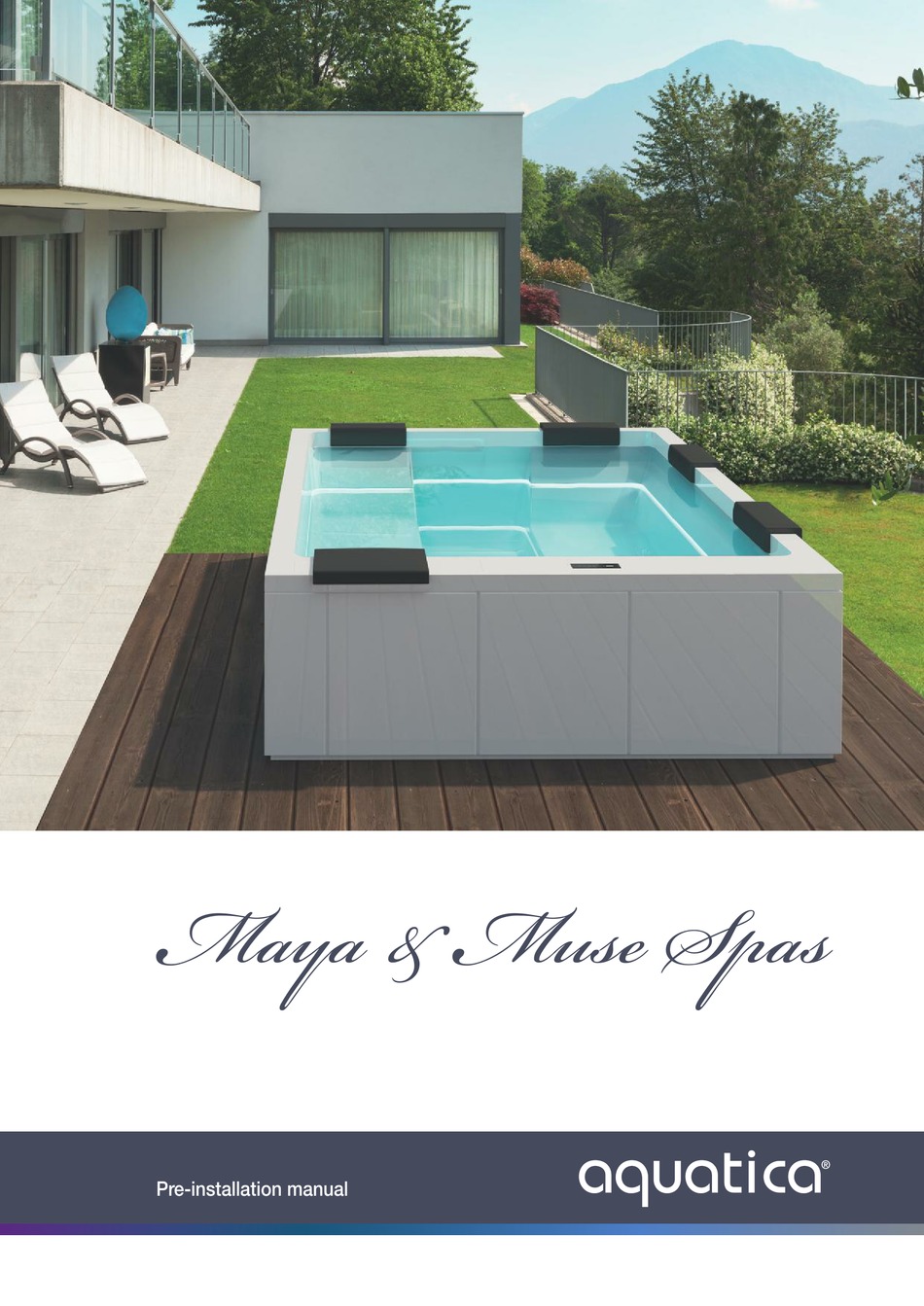

- Page 1 Maya & Muse Spas Pre-installation manual...
- Page 2 Proper preparation of the premises and systems will ensure a safe and rapid installation of the minipool. For this reason we advise you to read this manual carefully and to carefully follow all the information contained herein. The Treesse team is always available for any information or request for assistance that may be required during preparation.
-
Page 3: Table Of Contents
CONTENTS MUSE SPA PRO - MEASUREMENTS AND TECHNICAL SPECIFICATIONS ......... MAYA SPA PRO - MEASUREMENTS AND TECHNICAL SPECIFICATIONS ........WHAT PREPARATIONS ARE REQUIRED? ....................IDENTIFICATION OF THE INSTALLATION SITE ................... OUTDOOR INSTALLATION ............................INDOOR INSTALLATION ............................PREPARATION OF THE INSTALLATION SITE .................... -
Page 4: Muse Spa Pro - Measurements And Technical Specifications
PRE-INSTALLATION MUSE SPA PRO - MEASUREMENTS AND TECHNICAL SPECIFICATIONS PLATFORM 280 x 235 x 98 cm (110.24 x 92.52 x 38.58 inches) Packaging Freestanding Recessed Insulation Emergency Drain for pipes maximum 2500 litri The manufacturer suggests a water minimum load of 425 kg/m . (660 gal) content 9'-2 1/4"... -
Page 5: Maya Spa Pro - Measurements And Technical Specifications
PRE-INSTALLATION MAYA SPA PRO - MEASUREMENTS AND TECHNICAL SPECIFICATIONS PLATFORM 260 x 204 x 95 cm (102.36 x 80.31 x 37.4 inches) Packaging Freestanding Recessed Insulation Emergency Drain for pipes maximum 2000 litri The manufacturer suggests a water (528 gal) minimum load of 425 kg/m . - Page 6 PRE-INSTALLATION The spa works efficiently and safely if it is installed correctly and in compliance with the regulations in 80°C force in the country of use. 176°F This per-installation guide provides information for a proper preparation of the environments and the plumbing and electrical connections.
-
Page 7: What Preparations Are Required
PRE-INSTALLATION WHAT PREPARATIONS ARE REQUIRED? To be installed, the minipool Room for requires: the electrical Identification of the installation site. connections Preparation of the installation site. Preparation of the plumbing. Preparation of the electrical system. a possible external heat exchanger (optional), see next page for details. - Page 8 PRE-INSTALLATION PREPARA TION OF CONNECTION TO AN OPTIONAL EXTERNAL HEAT EXCHANGER (NOT SUPPLIED ) Room for the electrical connections Emergency Drain incoming hot domestic water OUT outgoing cold water Technical inspection port 230V 220V heater/exchanger control cable circulator (not supplied) water coming from the overflow edge recirculation pump switch (recommended)
-
Page 9: Identification Of The Installation Site
PRE-INSTALLATION IDENTIFICATION OF THE INSTALLATION SITE When choosing the position, take into account the local regulations that prohibit any electrical installation (plug sockets, switches, lamps, etc.) in the area surrounding the spa for a distance of at least 60 cm (24") and a height of 230 cm (90"). When choosing the position, bear in mind that the inspection side (electrical/plumbing components side) must always remain... -
Page 10: Preparation Of The Installation Site
PRE-INSTALLATION PREPARATION OF THE INSTALLATION SITE FREESTANDING INSTALLATIONS As a base, build a platform or flooring in reinforced B non-slip flooring around the minipool. concrete, at least 4" (10 cm) thick, perfectly flat and suitable for supporting the weight of the bathtub and the For the preparation of the water and electrical people using it. -
Page 11: Recessed Installations
PRE-INSTALLATION RECESSED INSTALLATIONS As a base, create a reinforced concrete recess having a Prepare: thickness of at least 10 cm (4"), perfectly flat and able to support the weight of the spa and the people using it. We • A A technical inspection port at least 50 cm wide on suggest an absolute minimum load of 350 kg/m2 or 72 all sides of the minipool. -
Page 12: Plumbing Preparations
PRE-INSTALLATION PLUMBING PREPARATIONS More information TAP WATER AND WELL WATER To ensure maximum hygiene and durability of the minipool it is essential to pay close attention to the quality of the water that will be used to fill it. It is important that the water used be drinkable. It is always advisable not to use well water because it may be very hard, rich in metals like iron and manganese, and have bacterial loads. -
Page 13: Characteristics Of The Water Supply
PRE-INSTALLATION CHARACTERISTICS OF THE WATER SUPPLY OPTIMAL VALUES PARAMETER VALUES ABOVE OR BELOW CAN... between..cause problems related to the safety and well-being of Refer to the specific regulations POTABILITY users of the country of use SUPPLY maximum: 300,000 PA (3 bar) PRESSURE minimum: 150,000 PA (1.5 bar) ...cause build-up that over time can cause damage to the... -
Page 14: Electrical Preparations
Electrical Wiring Manual PRE-INSTALLATION Typical Wiring Connection for USA & Canadian installations ELECTRICAL PREPARATIONS Maya & Muse Spas Bond in accordance with national and local codes. Open bonding lugs are located at the top of the junction box. 120/240 VAC Source... - Page 15 Note...
- Page 16 Function : For m : Fashion aquaticausa.com aquaticabath.ca aquaticabath.co.uk aquaticabath.eu...
