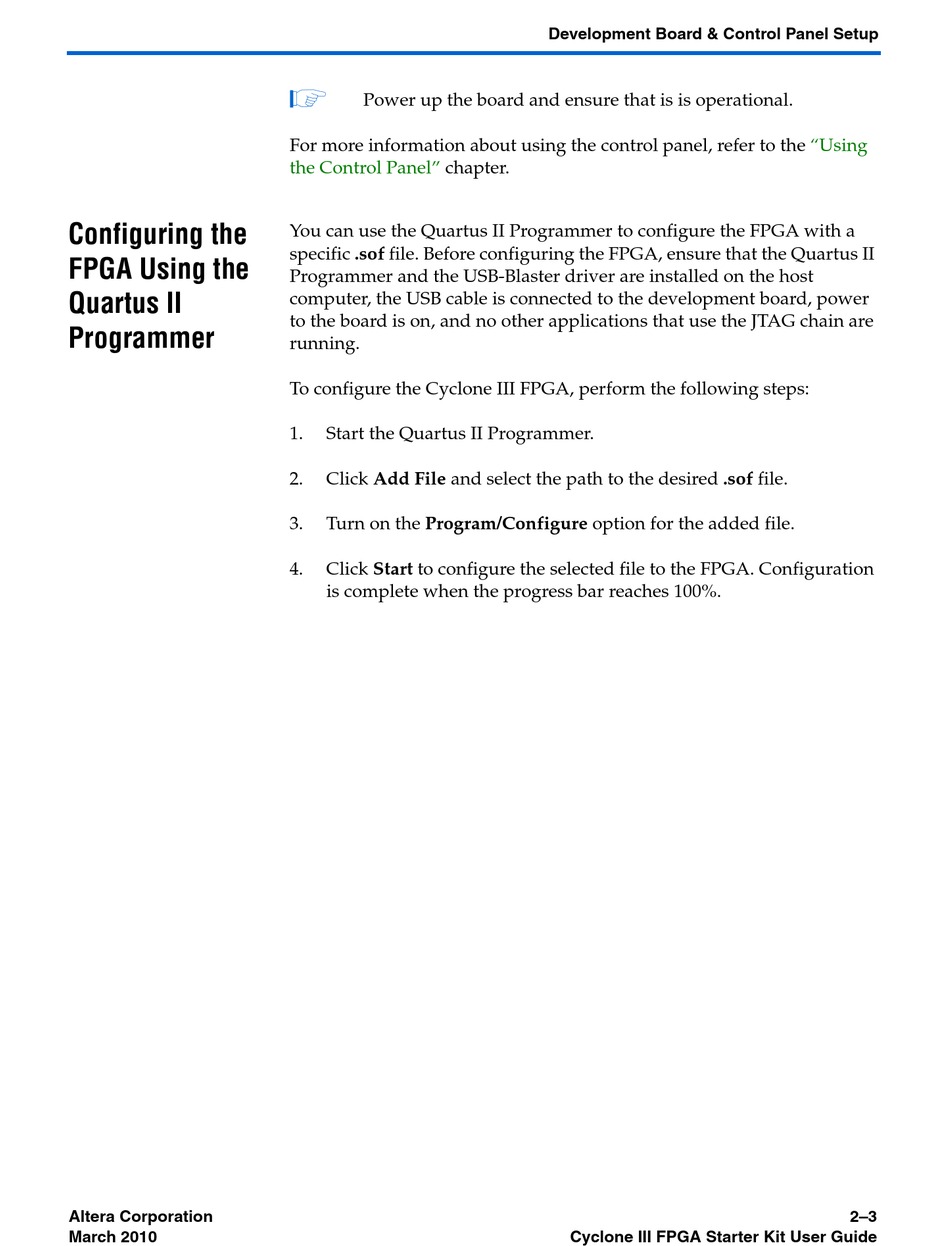

Configuring the
FPGA Using the
Quartus II
Programmer
Altera Corporation
March 2010
1
Power up the board and ensure that is is operational.
For more information about using the control panel, refer to the
the Control Panel"
chapter.
You can use the Quartus II Programmer to configure the FPGA with a
specific .sof file. Before configuring the FPGA, ensure that the Quartus II
Programmer and the USB-Blaster driver are installed on the host
computer, the USB cable is connected to the development board, power
to the board is on, and no other applications that use the JTAG chain are
running.
To configure the Cyclone III FPGA, perform the following steps:
1.
Start the Quartus II Programmer.
2.
Click Add File and select the path to the desired .sof file.
3.
Turn on the Program/Configure option for the added file.
4.
Click Start to configure the selected file to the FPGA. Configuration
is complete when the progress bar reaches 100%.
Development Board & Control Panel Setup
Cyclone III FPGA Starter Kit User Guide
"Using
2–3
