Summary of Contents for Habegger HIT-TRAC 128E

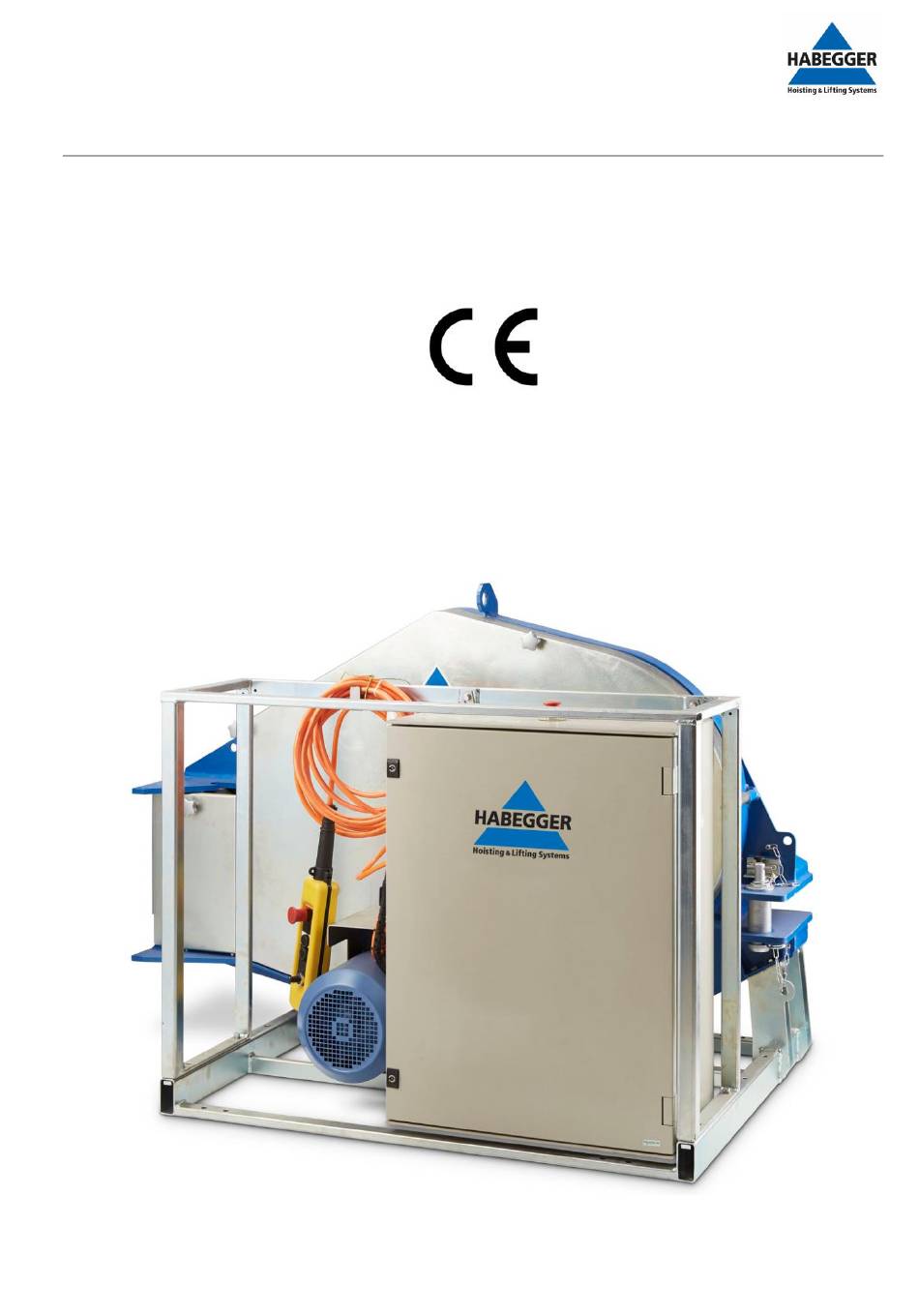

- Page 1 User Guide TGT. 12.03.2019 Technical Page 1 of 21 Original User Guide Version: 03 HIT-TRAC 128E 08401_HIT-TRAC 128E v=0.5-2.5 m/min 7.5kW Emergency 08501_BA zu HIT-TRAC 128E 7.5kW ©Copyright by Habegger Maschinenfabrik AG Version 03 / 12.03.2019...
- Page 2 185005 / HSS-ID-no 605 Art. Nr./ N° art./ Product. no.: 08401 Motor-Nr. / N° du moteur / Motor no.: 7.5 kW Steuerung-Nr / N° du contrôle / control no.: HI.64-128.075.G18V000 Datum/Date/Date: 22/02/2019 Unterschrift/Visa/Visa: i.A. ©Copyright by Habegger Maschinenfabrik AG Version 03 / 12.03.2019...
-
Page 3: Table Of Contents
Lowering ..................................18 Faults ....................................19 Emergency lowering ..............................20 Maintenance ..................................20 Replacement parts ................................20 Disposal ....................................21 Accessories ..................................21 10.1 Wireless remote control ............................. 21 10.1 Generators .................................. 21 ©Copyright by Habegger Maschinenfabrik AG Version 03 / 12.03.2019... - Page 4 Page 4 of 21 Warranty and Guarantee Habegger will grant the user replacement as well as installation and removal of any parts which are rendered unusable due to material or manufacturing errors. The warranty period (guarantee period) is 12 months.
- Page 5 Applicable EC directives: EC Machinery Directives 2006/42/EG Applied harmonised standards: DIN EN 14492-1: 2010-06 EN 60204-1: 2006 EN ISO 12100: 2011-01 Location: Thun Date: 12. March 2019 Technical manager Thomas Gerber Urs Schneider ©Copyright by Habegger Maschinenfabrik AG Version 03 / 12.03.2019...
-
Page 6: General Specifications
The motor-driven rope pulling machine HIT-TRAC 128 is designed for pulling, hoisting and lowering loads. Drive mechanism A special HABEGGER steel cable of desired length which is guided over the relevant guide elements by the driving wheel and then ejected in an unloaded state is used as the drive mechanism. -
Page 7: Limit Switch
As this energy is converted into heat, the output due to heat in the control box is limited during lowering. Heavier loads may only be lowered over short distances. ©Copyright by Habegger Maschinenfabrik AG Version 03 / 12.03.2019... -
Page 8: Assembly And Performance
HIT-TRAC 128 with cable and without cover Driving wheel Pendant station Rocker “Raise” button Thrust roller “Lower” button Anchor bolts Emergency stop button Rope shaft Cover monitoring switch Plug for three-phase A.C. current ©Copyright by Habegger Maschinenfabrik AG Version 03 / 12.03.2019... -
Page 9: Safety Instructions
Page 9 of 21 Safety instructions The HABEGGER motor-driven rope pulling machine HIT-TRAC 128 complies with current technical stand- ards. To protect against accidents it is equipped with effective safety devices as required by the recog- nised safety standards, guidelines and laws. -
Page 10: General Safety Instructions
- strong/heavy boulders - Trees - other suitable objects Technical anchorage points: - Habegger field anchor with piles - Rock bolt, concrete anchor - Round timber anchor in the ground - These anchors are highly dependent on soil conditions. Secure the machine to the anchoring bolts with sufficiently strong straps or loops. - Page 11 The reliability of the driving system is dependent on the condition of the traction rope. Rope construction and inherent stability (crush resistance, impact resistance) must be able to withstand the active loads. You should therefore only use ropes provided or approved by HABEGGER. The traction rope should not be lubricated.
- Page 12 Never allow the hook to touch the housing. When lowering, ensure that the rope is long enough. Stop at least 2 m before the end of the cable and shim or rehang the load. ©Copyright by Habegger Maschinenfabrik AG Version 03 / 12.03.2019...
-
Page 13: Approved Users
Actions in case of emergency Check before starting operation if and where you can get mobile phone reception or where there is an available telephone. Check the availability of a first-aid kit. ©Copyright by Habegger Maschinenfabrik AG Version 03 / 12.03.2019... -
Page 14: Technical Specifications
694 mm Dead weight rope pulling machine 800 kg Gear oil 12 l / 80 W 90 Traction rope: Model HABEGGER 6 x 26 WS + FC galvanised, compressed Diameter 28 mm Length optional Breaking load 600 kN Driving motor:... -
Page 15: Operation
The rope pulling machine must be able to freely position itself in the direction in which the rope is mov- ing. Danger of housing breaking! Laying the rope. ©Copyright by Habegger Maschinenfabrik AG Version 03 / 12.03.2019... -
Page 16: Insert Rope
Information: The cover can only be attached when the operating lever is in the correct position and the rope is in the V-groove. Double check rope placement is correct. Replace both covers and secure with the fixing screws. ©Copyright by Habegger Maschinenfabrik AG Version 03 / 12.03.2019... - Page 17 User Guide TGT. 12.03.2019 Technical Page 17 of 21 ©Copyright by Habegger Maschinenfabrik AG Version 03 / 12.03.2019...
-
Page 18: Pulling And Hoisting
Danger of falling! Pay attention to end of rope! The unloaded rope should slide into the machine freely and without kinks. Stop lowering at least 2 m before the end of the rope. ©Copyright by Habegger Maschinenfabrik AG Version 03 / 12.03.2019... -
Page 19: Faults
Insert correct rope inserted Cable severely worn out Insert new rope Driving wheel or rope too heavily clean greased Groove in driving wheel heavily soiled clean no load on rope Load rope ©Copyright by Habegger Maschinenfabrik AG Version 03 / 12.03.2019... -
Page 20: Emergency Lowering
Additionally, local regulations, as well as additional checks for severe operating conditions in short operating distances, must be implemented by a qualified professional. Replacement parts Replacement parts are provided on a separate list. This can be requested from HABEGGER. ©Copyright by Habegger Maschinenfabrik AG Version 03 / 12.03.2019... -
Page 21: Disposal
10.1 Generators To use the HIT-TRAC with a generator an electrical output of at least 2.5 to 3 times the motor power must be generated. HABEGGER will gladly support you in evaluating the generator. HABEGGER Maschinenfabrik AG Mittlere Strasse 66...
