- Page 1 User Guide TGT. 27.09.2017 Technical Page 1 of 20 Original User Guide Version: 02 HIT-TRAC 8B 06313_HIT-TRAC 8B v=10m/min 2.6kW 06332_BA zu HIT-TRAC 8B ©Copyright by Habegger Maschinenfabrik AG Version 02 / 27.09.2017...
- Page 2 Geräte Nr. /N° de la machine / Machine no.: ..........Art. Nr./ N° art./ Product no.: ..........Motor-Nr. / N° du moteur / Motor no.: ..........Steuerung-Nr / N° du contrôle / control no.: ..........Datum/Date/Date: ..........Unterschrift/Visa/Visa: ..........©Copyright by Habegger Maschinenfabrik AG Version 02 / 27.09.2017...
-
Page 3: Table Of Contents
Insert rope .................................. 15 Pulling and hoisting ..............................16 Lowering ..................................17 Faults ....................................18 Maintenance ..................................19 Replacement parts ................................19 Disposal ....................................20 Accessories ..................................20 10.1 Supporting pipe ................................20 ©Copyright by Habegger Maschinenfabrik AG Version 02 / 27.09.2017... - Page 4 Preface You have made a wise decision in opting for the HABEGGER motor-driven rope pulling machine HIT-TRAC 8. Using this new type of rope pulling machine you can pull, hoist and lower loads. Servicing and maintenance are very simple and guarantee hassle-free and reliable operation when handled correctly.
- Page 5 This declaration of conformity also loses its validity if the relevant user guide and maintenance manual are not followed or are violated. Applicable EC directives: EC Machinery Directives 2006/42/EG Applied harmonised standards: EN ISO 12100: 2011-01 Location: Thun Date: 27. September 2017 Technical manager Thomas Gerber Urs Schneider ©Copyright by Habegger Maschinenfabrik AG Version 02 / 27.09.2017...
-
Page 6: General Specifications

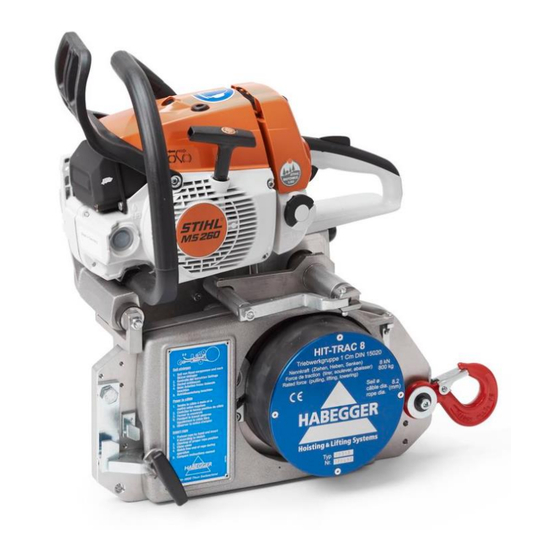

The motor-driven rope pulling machine HIT-TRAC 8 is designed for pulling, hoisting and lowering loads. Drive mechanism A special HABEGGER steel cable of desired length which is guided over the relevant guide elements by the driving wheel and then ejected in an unloaded state is used as the drive mechanism. -
Page 7: Assembly And Performance
User Guide TGT. 27.09.2017 Technical Page 7 of 20 Assembly and performance Towing hook Cover latch Chain brake Brake release lever Rope loosening crank Thrust roller Rope guide Guiding pulley ©Copyright by Habegger Maschinenfabrik AG Version 02 / 27.09.2017... -
Page 8: Safety Instructions
Page 8 of 20 Safety instructions The HABEGGER motor-driven rope pulling machine HIT-TRAC 8 complies with current technical standards. To protect against accidents it is equipped with effective safety devices as required by the recognised safety standards, guidelines and laws. -
Page 9: General Safety Instructions
- Strong/heavy boulders - Trees - Other suitable objects Technical anchorage points: - Habegger field anchor with piles - Rock bolt, concrete anchor - Round timber anchor in the ground - These anchors are highly dependent on soil conditions. Secure the machine to the anchoring bolts with sufficiently strong straps or loops. - Page 10 The reliability of the driving system is dependent on the condition of the traction rope. Rope construction and inherent stability (crush resistance, impact resistance) must be able to withstand the active loads. You should therefore only use ropes provided or approved by HABEGGER. The traction rope should not be lubricated.
- Page 11 When lowering, ensure that the rope is long enough. Stop at least 2 m before the end of the cable and shim or rehang the load. Petrol motor See the safety instructions in the attached STIHL user guide. Danger! Wear ear defenders when working with the petrol motor! ©Copyright by Habegger Maschinenfabrik AG Version 02 / 27.09.2017...
-
Page 12: Approved Users
Actions in case of emergency Check before starting operation if and where you can get mobile phone reception or where there is an available telephone. Check the availability of a first-aid kit. ©Copyright by Habegger Maschinenfabrik AG Version 02 / 27.09.2017... -
Page 13: Technical Specifications
Effective driving wheel diameter: 160 mm Dead weight rope pulling machine 30 kg Gear grease Liquid grease Microlube GB 0 Traction rope: Model HABEGGER 4 x 25 FW+FC galvanised Diameter 8.2 mm Length Optional Breaking load 50 kN Petrol motor Driving motor:... -
Page 14: Operation
Identify a location where the machine can be anchored and attach the rope pulling machine in the pulling direction using the correct means of fastening. The rope pulling machine must be able to freely position itself in the rope’s pulling direction. Danger of housing breaking! Laying the rope. ©Copyright by Habegger Maschinenfabrik AG Version 02 / 27.09.2017... -
Page 15: Insert Rope
Place load-bearing rope in guiding pulley. Place load-bearing rope in rope guide Place empty rope in empty rope guide Gently tighten rope using motor. Double check rope placement is correct. Close and lock cover ©Copyright by Habegger Maschinenfabrik AG Version 02 / 27.09.2017... -
Page 16: Pulling And Hoisting
Caution! If the brake release lever is not swivelled upwards, the load will fall at lowering speed after the throttle lever is released. Pivot throttle lever upwards immediately In emergencies, e.g. in the case of jams: Block the motor using the chain brake. ©Copyright by Habegger Maschinenfabrik AG Version 02 / 27.09.2017... -
Page 17: Lowering
If the load is to be lowered over longer distances, the brake should be allowed to cool and then lowered the rest of the distance. Switch crank to other side after lowering and lock in place. ©Copyright by Habegger Maschinenfabrik AG Version 02 / 27.09.2017... -
Page 18: Faults
The tension in the Brake not released Release brake by pivoting brake release lever back- rope cannot be wards relieved Brake wet Return to HABEGGER for repair Chain brake engaged Release chain brake ©Copyright by Habegger Maschinenfabrik AG Version 02 / 27.09.2017... -
Page 19: Maintenance
Additionally, local regulations, as well as additional checks for severe operating conditions in short operating distances, must be implemented by a qualified professional. Replacement parts Replacement parts are provided on a separate list. This can be requested from HABEGGER. ©Copyright by Habegger Maschinenfabrik AG Version 02 / 27.09.2017... -
Page 20: Disposal
HABEGGER Maschinenfabrik AG Mittlere Strasse 66 CH-3600 Thun, Switzerland Phone +41 (0)33 225 44 44 +41 (0)33 225 44 40 Email info@habegger-hit.ch Website www.habegger-hit.ch ©Copyright by Habegger Maschinenfabrik AG Version 02 / 27.09.2017...
