Skope TCE1000N Service Manual

Two door upright fridge hydrocarbon
Hide thumbs Also See for TCE1000N:
Table of Contents

Advertisement

Quick Links

Download this manual
TCE1000N

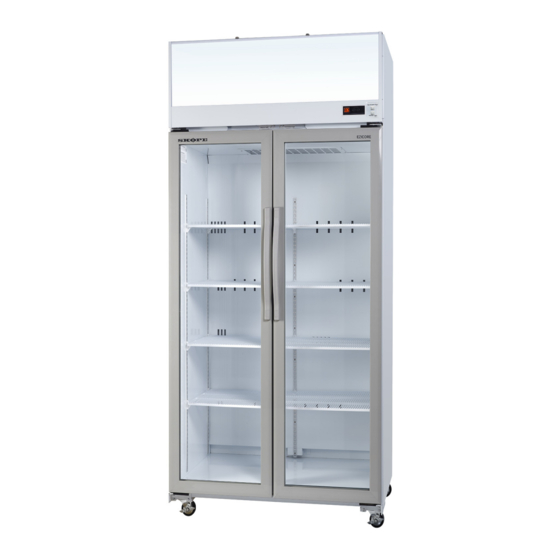

SKOPE Two Door Upright Fridge
Hydrocarbon
SKOPE ID: EM10BYN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TCE1000N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Skope TCE1000N

Summary of Contents for Skope TCE1000N

  • Page 1 TCE1000N SKOPE Two Door Upright Fridge Hydrocarbon SKOPE ID: EM10BYN...
  • Page 2 E-mail: skope@skope.com Website: www.skope.com Trademark Infringement The SKOPE trademark on this product is infringed if the owner, for the time being, does any of the following: • Applies the trade mark to the product after its state, condition, get-up or packaging has been altered in any manner •...

  • Page 3: Table Of Contents

    Condenser Coil ........32 TCE1000N:EM10BYN...
  • Page 4 Wiring Model: TCE1000N ........33 Notes.

  • Page 5: Servicing Hydrocarbon

    Flammable refrigerant. • Venting of R290 and compressor oil. • Asphyxiation. SKOPE does not recommend performing hazardous activities on the refrigeration system. See “Refrigeration System” on page 29 for more information including examples of hazardous activities. Servicing Hydrocarbon Service Manual...
  • Page 6 Hydrocarbon work – SKOPE Service Policy It is the responsibility of the service technician to follow SKOPE’s Hydrocarbon equipment service policy and by accepting a service work order they agree to the following (where applicable): MUST – Ensure all workers are trained in the SAFETY of hydrocarbon products to the appropriate level for the work required.

  • Page 7: Specifications

    2 Specifications Model This service manual is applicable to the Haier TCE Top Mount fridge described in Table 1. Refer to the relevant product specification sheet (available on the SKOPE website: www.skope.com) for detailed specifications. Table 1: Model specifications Series...

  • Page 8: Installation

    TCE1000N:EM10BYN 3 Installation Installation Guidelines When installing this cabinet, ensure you consider and meet the installation guidelines below. Ventilation Surface Door Opening Climate Class Ensure all ventilation The installation Allow adequate space The fridge must be surface must be requirements below...

  • Page 9: Door Handles

    TCE1000N:EM10BYN Door Handles Fitting Door The cabinet is supplied with door handles when it is shipped. If you need to fit a handle, follow Procedure 1. Handles Procedure 1: To fit a door handle Before you start 1. Make sure all handle components are ready to assemble.

  • Page 10: Shelves

    TCE1000N:EM10BYN Procedure 2: To remove a door handle Before you start Make sure you have a screwdriver and a flat end tool, to remove the mounting hardware. 1. Use the flat end tool to gently pry off the handle end caps. This will expose fixing screw heads.

  • Page 11: Repositioning Shelves

    TCE1000N:EM10BYN Repositioning Shelves Procedure 6: To reposition a shelf 1. Unload and remove the shelf to be repositioned. 2. Adjust the height of the shelf clips (see Procedure 4). 3. Sit the shelves on the shelf clips. 4. Reload the product.

  • Page 12: Electronic Controller

    (see Procedure 7). Setpoint SKOPE do not recommend that the setpoint range be changed unless it is absolutely necessary, and then only by small increments at a time. Procedure 7: To change the temperature setpoint range 1.

  • Page 13: Replacement Procedures

    The cabinet is fitted with LED interior lights and LED sign lights. Ensure lights are replaced with the same light type. Fluorescent or LED tubes cannot be used in place of LED modular lights. IMPORTANT Replace the light with the same SKOPE OEM part. Do not use alternative LED strip or tube lights, or fluorescent tubes.
  • Page 14 TCE1000N:EM10BYN Procedure 8: To replace an interior light component 1. Unplug the cabinet from the mains power supply. 2. Remove the diffuser cover to expose the failed LED light strip. 3. Unplug the failed LED strip and unscrew it from the door frame to remove.

  • Page 15: Sign Light

    TCE1000N:EM10BYN Procedure 10: To replace an interior wiring loom 1. Unplug the cabinet from the mains power supply. 2. Unplug the light from the wire loom. 3. Gain access to the cabinet electrics panel (see Procedure 9 on page 14).

  • Page 16: Doors

    TCE1000N:EM10BYN Doors Replacing the The one-piece door gasket clips into the door frame and runs around the perimeter of the door. Gasket Remove the gasket by peeling it from the door frame, starting at a corner. If the gasket is out of shape after refitting, use a hair dryer to heat and reshape it.

  • Page 17: Refrigeration System

    Ensure you have read and understood this manual before starting any servicing. Important • SKOPE hydrocarbon refrigeration systems must only be serviced by appropriately skilled and qualified refrigeration mechanics. • Servicing a sealed refrigeration system must occur at a hydrocarbon workshop or service area with dedicated hydrocarbon equipment and personal protective equipment (PPE).

  • Page 18: On-Site Work

    TCE1000N:EM10BYN Ensure your work area is well ventilated. IMPORTANT Use only dedicated hydrocarbon SKOPE OEM spare parts. DO NOT use alternative parts. For safety compliance, use only SKOPE-supplied components specified for the appliance. Safety hazards The main hydrocarbon safety hazards are: •...

  • Page 19: Off-Site Work

    The cartridge must only be used on a SKOPE hydrocarbon-compliant cabinet. Refer to the cabinet rating label to determine if the cabinet is suitable for use with a hydrocarbon cartridge.

  • Page 20: Not Cooling Fault

    Cartridge The cartridge is heavy and requires a minimum of two people to lift from the cabinet. SKOPE recommends steps or a platform about one metre high to allow the cartridge to be safely lifted, carried and put down at waist height.
  • Page 21 TCE1000N:EM10BYN Procedure 16: To remove the refrigeration cartridge Before you start 1. If a customer reports a “not cooling” fault, and it has been established that the cabinet is not cooling, follow the procedure on page 44 when making the service visit.

  • Page 22: Replacing The Refrigeration Cartridge

    The hydrocarbon cartridge must only be used on a hydrocarbon-compliant cabinet. New spare part refrigeration cartridges supplied by SKOPE do not come with the evaporator tub lid, top strap brackets or hold down brackets. When replacing a faulty top mount refrigeration cartridge, keep these parts for the new spare part replacement cartridge.

  • Page 23: Cartridge Electrics Box Assembly

    TCE1000N:EM10BYN The evaporator tub lid, top strap brackets and hold down brackets can be ordered separately if required. See page 40 for spare part numbers. Top strap brackets Evaporator tub lid Hold down bracket Hold down bracket Procedure 17: To replace a cartridge 1.
  • Page 24 5. Undo the two fixing screws at the base of the electrics box, and detach the electrics box from the cartridge. 6. To open the electrics box, undo the two fixing screws on the back of the electrics box and swing the back cover off. Wiring diagram TCE1000N R290 Junction Box Layout Colour Description Key Colour Description Yellow –...

  • Page 25: Refrigeration Cartridge Cover

    Refer to the label on the electrics box cover (see page 24) to identify the condenser fan plug and socket in the electrics box. IMPORTANT Replace the motor with the same SKOPE OEM part. Do not use alternative parts. It is important that you replace the fan blade and motor replaced with the same part to ensure safety, correct alignment and refrigeration performance, and compliance.

  • Page 26: Evaporator Fan

    The fan motor and fan blade are fixed to the evaporator shroud via brackets. You can lift the shroud (complete with fan motor and fan blade) off the evaporator tub once you have removed the refrigeration cartridge cover. IMPORTANT Replace the motor with the same SKOPE OEM part. Do not use alternative parts. Replacement Procedures Service Manual...
  • Page 27 TCE1000N:EM10BYN It is important that you replace the fan blade and fan motor with the same part to ensure safety, correct alignment and refrigeration performance, and compliance. Tighten fan blades to the fan motor manufacturer’s recommended torque settings shown in page 25 (1.5 Nm).

  • Page 28: Compressor

    TCE1000N:EM10BYN Procedure 25: To replace the evaporator fan motor (continued) 5. Fit the fan blade, ensuring it is centred within the evaporator shroud. 6. Tighten the blade to fan motor manufacturer’s recommended torque setting (1.5 Nm). 7. Reassemble the cartridge and test for correct operation.

  • Page 29: Refrigeration System

    TCE1000N:EM10BYN Refrigeration System Refrigeration For detailed instructions on removing the refrigeration cartridge, refer to the unit removal Cartridge instructions on the instruction sheet attached to the back of the sign panel, or on page 21 of Removal this service manual.

  • Page 30: Electronic Controller

    TCE1000N:EM10BYN Electronic Controller Controller The electronic controller is located within the sign assembly. Location Top sign Controller display Controller module Snap-fit feature Controller display Procedure 28: To access the controller 1. Unplug the cabinet from the mains power supply. 2. Remove sign from cabinet (see page 15) and place in your working area.

  • Page 31: Replacing The Controller

    TCE1000N:EM10BYN Replacing the Follow the steps below to replace the controller. Controller Note: Replacement spare part electronic controllers are supplied with a default parameter set loaded. Procedure 29: To replace the controller 1. Unplug the cabinet from the mains power supply.

  • Page 32: Cleaning

    Periodically wipe the inside and outside of the cabinet with a damp cloth, taking care to keep moisture away from electrical parts. Condenser To ensure trouble-free performance, SKOPE strongly recommends that the condenser coil is Coil cleaned: • every month with a soft brush to remove dust and fluff.

  • Page 33: Wiring

    TCE1000N:EM10BYN 6 Wiring Model: TCE1000N Wiring Service Manual...

  • Page 34: Notes

    TCE1000N:EM10BYN Notes Wiring Service Manual...

  • Page 35: Spare Parts

    TCE1000N:EM10BYN 7 Spare Parts Main Assembly – TCE1000N Table 9: Parts – Main assembly Description Page Cabinet assembly Page 36 Door assembly Page 37 Sign assembly Page 38 Cartridge assembly Page 38 Note: Check the part colour before ordering. If the colour differs from the list above, state the specific colour when ordering.

  • Page 36: Cabinet Assembly

    TCE1000N:EM10BYN Cabinet Assembly Table 10: Parts – Cabinet assembly SKOPE Part No. Description Colour: White Top hinge - left hand HB0070111940 Top hinge - right hand HB0070111943 Bottom hinge - left hand HB0070111941 Bottom hinge - right hand HB0070111942 TCE1000 Centre pillar assembly...

  • Page 37: Glass Door Assembly

    TCE1000N:EM10BYN Glass Door Assembly Table 11: Parts – Glass door assembly SKOPE Part No. Description Colour: White TCE1000N door assembly - left hand HB0070824787A TCE1000N door assembly - right hand HB0070824788A Door handle HB0070202818E (grey colour) Door handle cap HB0070202817E...

  • Page 38: Sign Assembly

    TCE1000N:EM10BYN Sign Assembly Table 12: Parts – Sign assembly SKOPE Part No. Description Colour: White Sign assembly HB0070836992 Sign back strip HB0070110812 LED light strip HB0074091499A Light switch HB0070401653 Digital controller HB0070825284S Opal light panel HB0070207277 Sign Sides SM65BV/182-32 Spare Parts...

  • Page 39: Cartridge Assembly - Hb0070832517C

    TCE1000N:EM10BYN Cartridge Assembly – HB0070832517C Spare Parts Service Manual...
  • Page 40 TCE1000N:EM10BYN Table 13: Parts – Cartridge assembly Description SKOPE Part No. EziCore cartridge assembly HB0070832517C Refrigeration cartridge plastic bottom HB0070206212D Condensate line HB0070702717 Drier bracket HB0070112920 Hold down bracket HB0070110815A Condensate pipe support HB0070206128 Compressor – Wanbao FN90M HB0074000848 Electrics box assembly...

  • Page 41: Electrics Box Assembly

    TCE1000N:EM10BYN Electrics Box Assembly Table 14: Parts – Electrics box assembly Description SKOPE Part No. Electrics box assembly HB0070836993 Cartridge electrics box enclosure front HB0070207012A Electrical enclosure panel HB0070207014 EMI filter HB0074600001 Cartridge electrics box enclosure rear HB0070207013A Spare Parts...

  • Page 42: Troubleshooting

    TCE1000N:EM10BYN 8 Troubleshooting Cabinet and Refrigeration Cartridge Diagnostic For problems with the cabinet and refrigeration cartridge use Table 15. Table Table 15: Troubleshooting Problem Possible cause Repair • Cabinet not operating • Loss of power supply • Check mains power supply.
  • Page 43 TCE1000N:EM10BYN Table 15: Troubleshooting (continued) Problem Possible cause Repair • Cabinet door does not • Cabinet is on an uneven surface. • Level the cabinet. shut properly • Door is obstructed. • Check shelves and product. • Warm cabinet • Blocked condenser •...

  • Page 44: On-Site Work Procedure

    TCE1000N:EM10BYN On-site Work Procedure If a customer reports a “not cooling” fault, and it has been established that the cabinet is not cooling, follow the procedure below when making the service visit. Place gas detector on ground in front Calibrate gas Create 1.5m safe...
  • Page 45 TCE1000N:EM10BYN On-site Work Procedure (continued) Return faulty cartridge to service depot: Create a safe work area around faulty Is refrigeration cartridge. Area must be in open well system ventilated space. Ensure no hazards, considered to ignition sources or drains. have gas leak?
  • Page 46 SKOPE Industries Limited ABN: 73 374 418 306 AU: 1800 121 535 NZ: 0800 947 5673 skope@skope.com www.skope.com...
